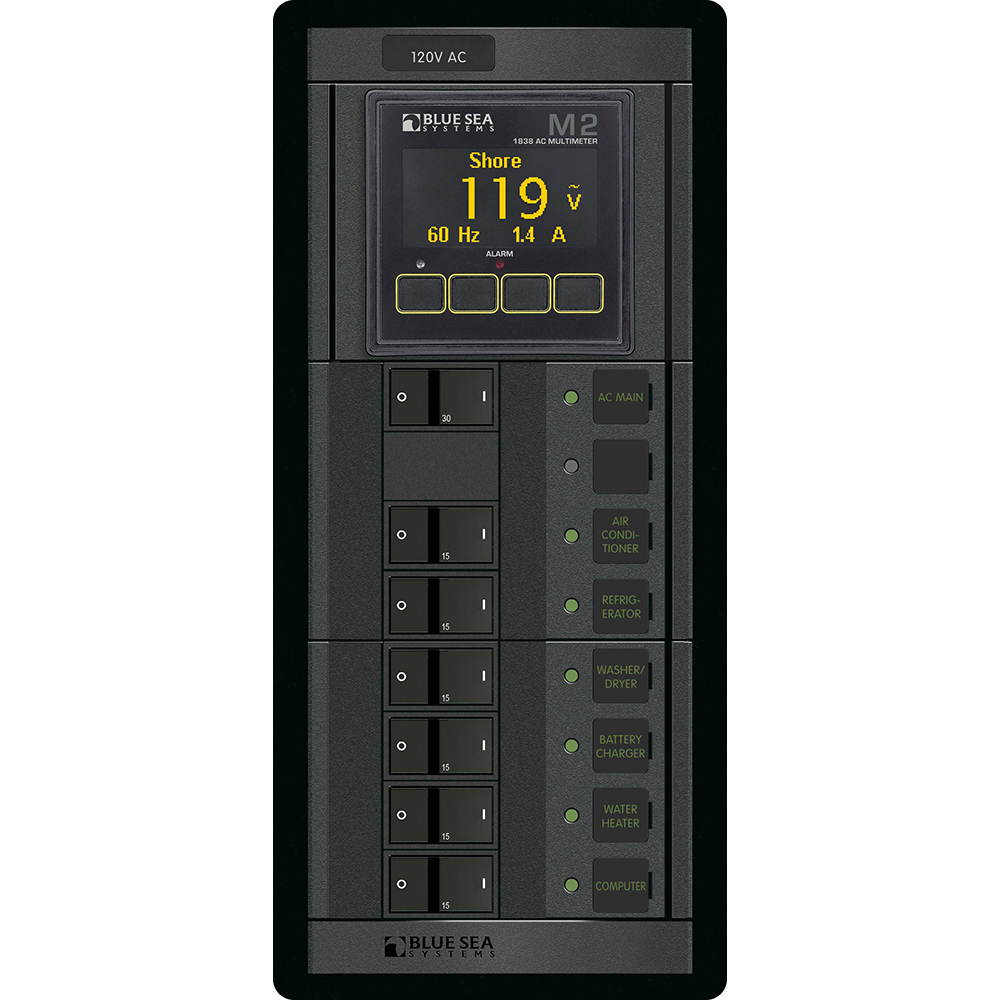

Blue Sea 1505 - 360 Panel - Main + 6 Position 120V AC Flat Rocker w/M2 AC Multimeter
Available @
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
This product may be available for purchase online. For pricing and availability, click the
"Ask a Question about this Product" button below to speak with our team.
Let us know your shipping destination and required quantity, and we will have a personalized quote ready for you.
1505 - 360 Panel - ELCI + 6 Position 120V AC Flat Rocker with M2 AC Multimeter
Part of the Blue Sea Systems Battery Management Panels. This one standard panel features protection with branch breakers and will reduce the risk of fire and shock hazards caused by defects in appliances and circuit wiring.
Features:
- Provides Main circuit protection with branch circuits
- Green ON indicating LEDs
- Backlit label positions
Technical Specifications:
- Positions - Six (6) + Main
- Actuator Style - Flat Rocker
- Meter - M2 AC Multimeter
- Nominal Voltage - 120V
- Circuit Breaker Type - A-Series: 6 Branch (15A) and Main (30A)
- Dimensions (H x W x D) - 10.75" x 4.88" x 3.99" (273 x 124 x 101mm)
In the Box:
- 1505 Panel
- Instruction Manual
*Sold as an Individual
Product Specifications
| Dimensions | 13" L × 10" W × 6" H |
|---|---|
| Shipping Weight | 4.05 lb |
| Country of Origin | UNITED STATES |
| Harmonized Code | 8537.10.91.50 |
