Fireboy-Xintex Two Zone Detection & Alarm Panel - 2-5/8" Display - 12/24V DC
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
$1,025.00

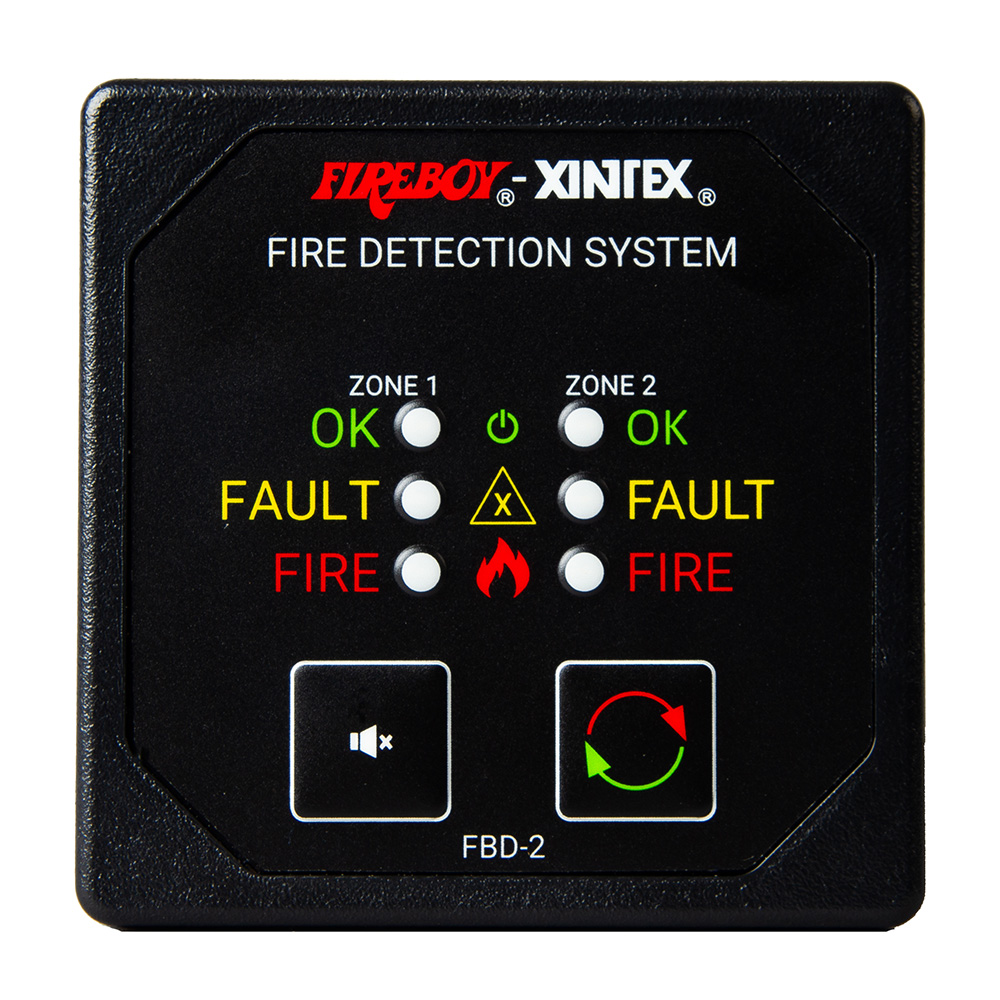

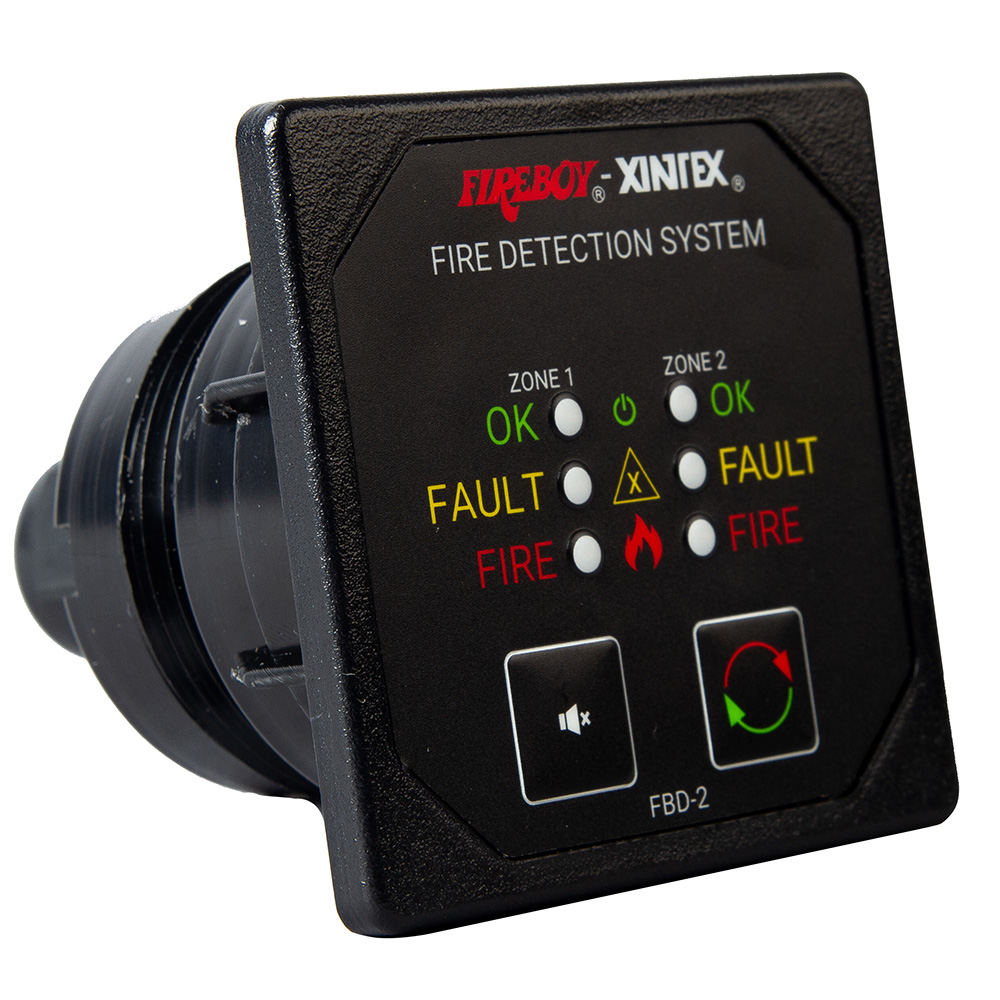

Two Zone Detection & Alarm Panel - 2-5/8" Display - 12/24V DC
Each system consists of a monitor panel and up to 14 smoke or heat detectors and/or rate of rise heat detectors connected to each zone (sold separately.)
Features:
- Visual and audible indications of a fire or fault
- Water resistant display
- Voltage and EMI protected
- Reverse polarity protected
Specifications:
- Supply Voltage: 9-32V DC
- Zone Loop Voltage: 24V DC (regardless of input voltage)
- Minimum Alarm Current: 15mA
- Maximum Current Per Zone: 400mA
- Maximum Sensors Per Zone: 8
- EOL Resistor: 5.6kΩ
- Potential Free Transistor Output (Fault, Alarm): 50V max
- Relay Output (Buzzer): 2A
Product Specifications
| Dimensions | 5" L × 4" W × 2" H |
|---|---|
| Shipping Weight | 0.5 lb |
| Country of Origin | UNITED STATES |
| Harmonized Code | 8531.10.00.00 |
Documentation
| Owner's Manual | Download PDF |
|---|
