Lowrance 000-12568-001 TotalScan Skimmer Transom Mount Transducer - MW

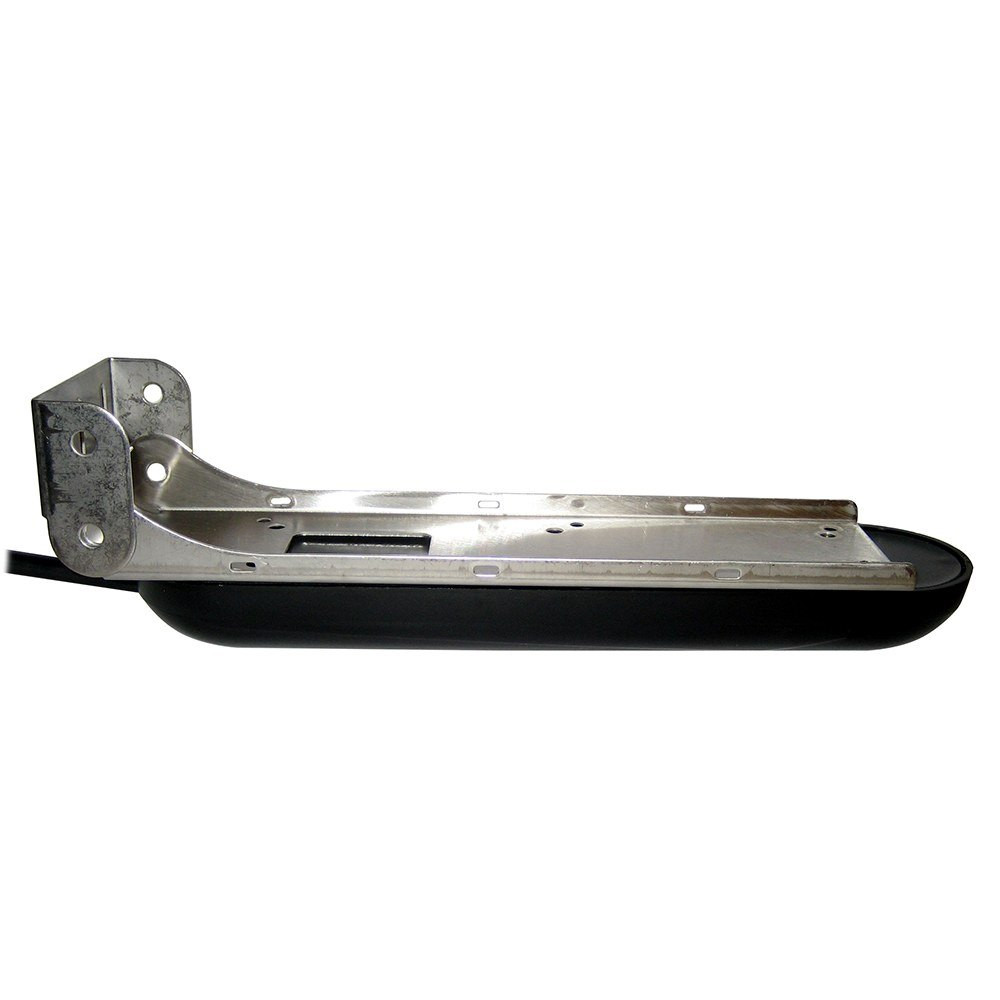

TotalScan™ Transom Mount transducer
An all-in-one transducer that matches proven CHIRP sonar with StructureScan® HD and DownScan Imaging™ technology, making it possible to target fish and search for fish-holding structure with the same transducer.
The TotalScan transducer features multiple mounting options and is fully compatible with displays featuring integrated StructureScan HD, like Lowrance HDS Gen3, Elite-7 Ti, Elite-5 Ti, Simrad NSS evo2, and NSO evo2.
The TotalScan transducer is one of four new transducers that feature the new xSonic (9-pin black) 24ft cable.
An adapter cable will be available to connect xSonic (9-pin black) transducers to legacy displays that have a 7-pin blue connector.
Note: When a TotalScan transducer is connected to a legacy display with a 7-pin blue connector, the side-scanning feature will not function.
Features
- All-in-one transducer featuring CHIRP Sonar, StructureScan HD and DownScan Imaging
- Also supports 83/200kHz Broadband Sounder frequencies
- Supports Medium and High CHIRP Sonar frequencies
- Supports 455/800kHz StructureScan HD frequencies
- Multiple mounting options
- Fully compatible with Lowrance HDS Gen3, Elite-7Ti, Elite-5Ti, Simrad NSS evo2, and NSO evo2
- Compatible with select legacy displays (Requires xSonic transducer adapter - side-scanning sonar not supported on legacy products)
Specifications:
- Temperature: Yes
- Speed Included: No
- Pins: 9
- Mounting Style: Transom
- Imaging: Standard/Down/Side
- Chirp: Medium/High
- Cable Length (Feet): 24'
- Box Dimensions: 3"H x 10"W x 13"L WT: 3.25 lbs
- UPC: 9420024145265
