Johnson Pump Proline Bilge Pump - MW

Name: Johnson Pump Proline Bilge Pump - MW
Brand: Johnson Pump (MW)
SKU: MAY-22502.1
Availability: InStock

SKU MAY-22502.1 MFR Johnson Pump (MW)

Express

Toronto, ON Vancouver, BC NJ, Warehouse FL, Warehouse

"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.

In Stock

Purchasing Code Required

To order this product online, please contact us with the quantity you need and your ZIP / postal code to receive your purchasing code. Some locations are restricted at this time.

Request Purchasing Code

Already have a code? Enter it below to unlock pricing and purchasing.

Ask a question about this product

Back to: Johnson Bilge Pumps

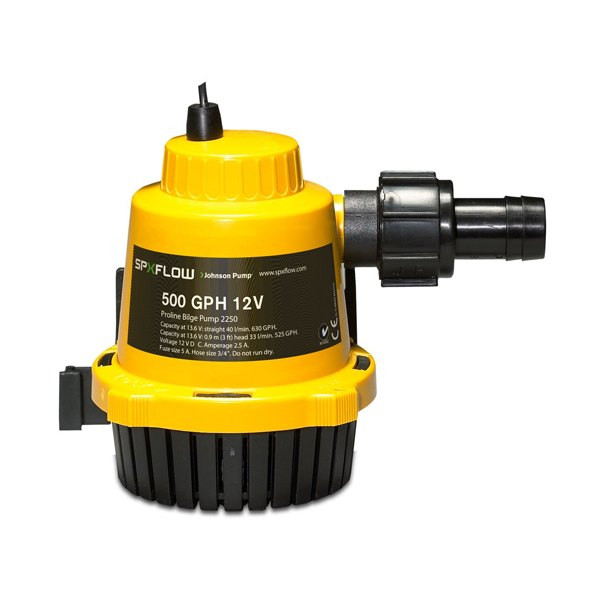

Mayfair Replacement Proline Bilge Pump by Johnson Pump

The Johnson Pump Proline Bilge Pump offers high-performance water removal in a compact, durable package. Its corrosion-resistant 316 stainless steel shaft and marine-grade housing are built to last in harsh boating environments. The .75-inch hose barb features an anti-clog design, while the 30-inch, 16-gauge lead wire gives you flexibility during installation. Fully submersible and ignition-protected, it meets USCG ISO 8849, ABYC, CE, and EN 55014 safety standards. Backed by a 3-year warranty and factory tested, this pump ensures smooth water evacuation and dependable bilge protection every time you head out.

Key Features:

Durable ABS fuel-resistant, compact housing
Quick release removable basket is easy to clean and replace
Low amp draw water-cooled motor
Includes straight and 90 degree Dura-port discharge ports
Molded t-slot for switches makes for easy switch installation

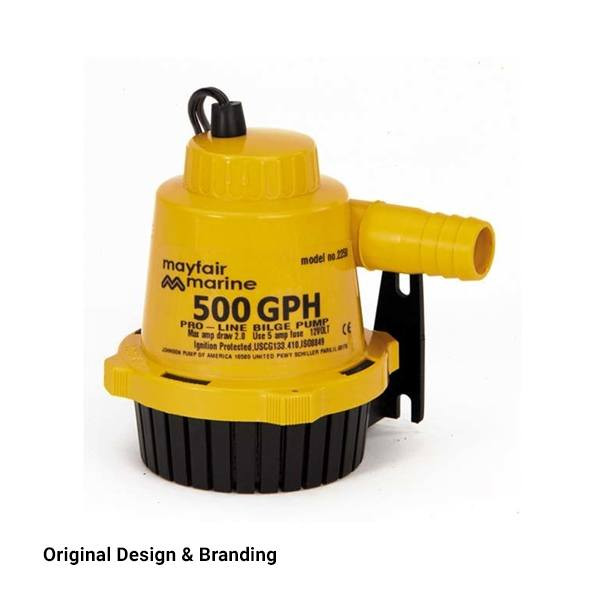

Direct replacement for older Mayfair Proline Bilge Pumps

Specifications:

Part 22502 (500 GPH)

Capacity 3 ft. Head: 525 GPH
Capacity Straight: 630 GPH
Amp: 2.5 Amp
Fuse Size: 5 Amp

Part 22702 (750 GPH)

Capacity 3 ft. Head: 700 GPH
Capacity Straight: 800 GPH
Amp: 3 Amp
Fuse Size: 5 Amp

Part 22102 (1000 GPH)

Capacity 3 ft. Head: 952 GPH
Capacity Straight: 1150 GPH
Amp: 3.2 Amp
Fuse Size: 5 Amp

Frequently Asked Questions

What is the Mayfair Replacement Proline Bilge Pump designed for?

The Mayfair Replacement Proline Bilge Pump by Johnson Pump is designed to remove bilge water efficiently while serving as a direct replacement for older Mayfair Proline bilge pumps. Its compact design and marine-grade construction make it a dependable choice for harsh boating environments.

What pump capacities are available for this bilge pump?

This pump is available in three sizes: Part 22502 with a 500 GPH rating, Part 22702 with a 750 GPH rating, and Part 22102 with a 1000 GPH rating. Each option includes different straight-flow and 3-foot head capacity ratings.

What features make this bilge pump durable and easy to maintain?

This bilge pump features a corrosion-resistant 316 stainless steel shaft, durable ABS fuel-resistant housing, and a quick-release removable basket for easier cleaning and replacement. It also includes straight and 90 degree Dura-port discharge ports for added installation flexibility.
