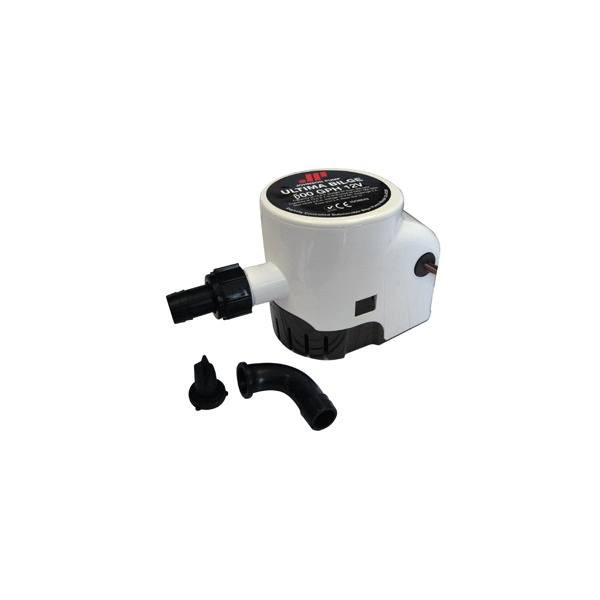

Johnson Ultima Automatic Bilge Pump - MW
Johnson Ultima Automatic Submersible Bilge Pump w/ Integrated Switch
The Johnson Ultima Bilge Pump is a sleek, reliable and compact unit with an integrated switch ready to install and run for years. Ultima Bilge Pumps can be manually operated via the bilge control panel. Available in 600, 800, 1000 and 1250 GPH versions. For Ultima Bilge 600 GPH to 1000 GPH, there are easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. Pumps include both a straight and a 90° smooth elbow Dura-Port and a removable check valve.
**1250 GPH unit does not include Dura-Port Connection
- Compact, all-in-one unit
- Integrated Ultima Switch sensing right into the pump body
- No Mercury
- Removable clip on basket design
- Removable impeller cover allows for easy clean out
- 3-wire device can be run in auto or manual override mode
- No tools needed for maintenance
- Extremely energy efficient
- Water-cooled motor for long service intervals
- Meets the international standard, ISO 8849 marine
Specifications:
- 600 GPH
- Amperage: 2.5 A
- Fuse Size: 5 A
- Connection: 3/4"
- 800 GPH
- Amperage: 3 A
- Fuse Size: 5 A
- Connection: 3/4"
- 1000 GPH
- Amperage: 3.2 A
- Fuse Size: 5 A
- Connection: 3/4"

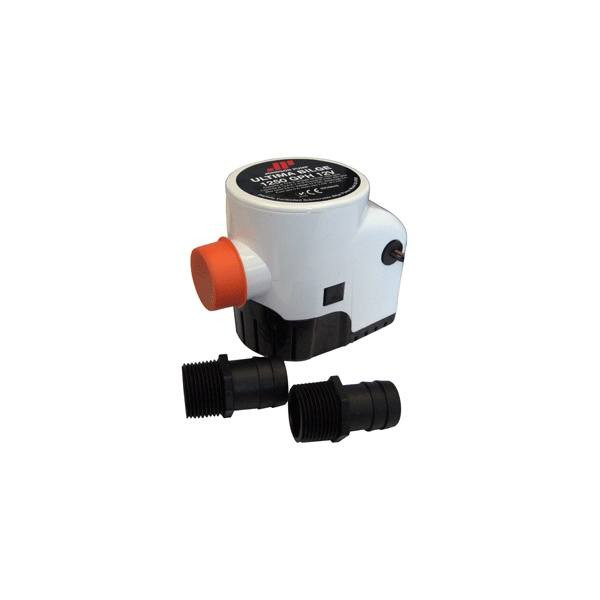

- 1250 GPH
- Amperage: 3 A
- Fuse Size: 5 A
- Connection: 1-1/8" and 1-1/4"
Dimensions:
- 600, 800 & 1000 GPH
- 6" L x 3.2" W x 4.1" H
- 1250 GPH
- 6" L x 3.2" W x 4.6" H
Click to Download Johnson Ultima Auto Bulge Pump Manual
