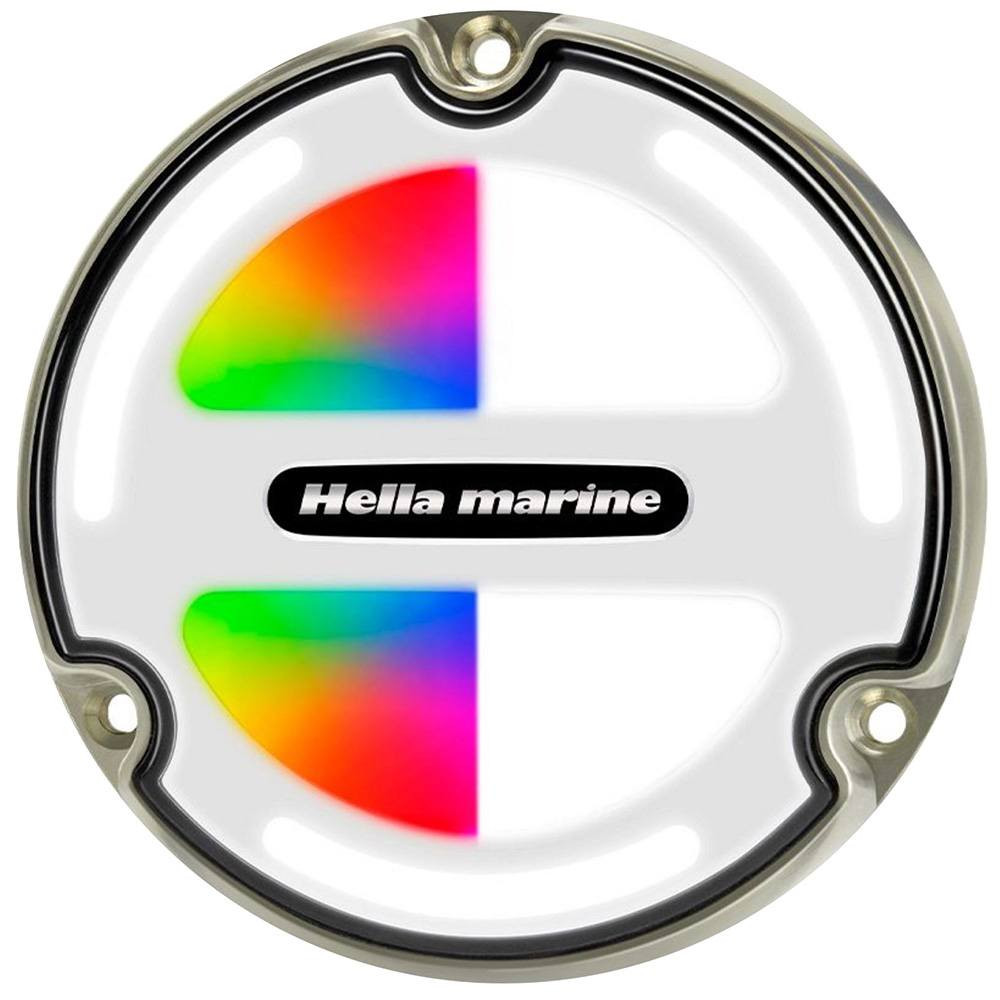

Apelo A3 RGBW Underwater Light - Bronze - White Lens

The A3 model has an improved formula with double the light output, maximizing the vibrant blue, intense white, or full-spectrum RGBW* color. The RGBW version includes dedicated white light emitting LEDs, adding brighter and more intense white light to RGBW underwater lighting. Both versions sport the edge lighting, which Apelo is known for.

Optical intelligence is at the heart of Hella Marine lighting, and Apelo is no exception. Intelligent optics spread light across the water without losing light to the depths, projecting wide across the transom. With the addition of nickel-silver to the extremely corrosion-resistant housing, the Apelo A3 is perfect for permanently submerged installations on larger boats and ships.

*Connect Apelo RGBW lights to an RGBW lighting controller for unlimited color selection (Not supplied).

Features:

Suitable for fiberglass, timber, steel, and composite hulls
Only mount on aluminum-hulled vessels with a suitable isolation spacer
Made in New Zealand and backed by Hella Marine’s 5-year warranty (Apelo Underwater Lights are built to last)

Specifications:

Mounting: Transom/surface
Voltage: Multivolt™ 12 / 24V DC Nominal
Max. Power Consumption: RGBW 70W / 5.9A @ 12V, 2.9A @ 24V and Edge Light <5W / 0.37A @12V, 0.2A @ 24V
Max. Light Output: 6000 lumens (white)
Color Temperature: 5000K (white)
Beam: 90° x 24°
Protection: Spike protected to +500 volts; reverse polarity protected to -700 volts; IP68 / IP69: Suitable for submersion in operation and high-pressure water jet cleaning; High-temperature thermal cutout for out of water
Cable Length: 2.5m / 8.2ft, tinned marine cable
Ideal Depth: 100–500mm
Ideal Width: 600–1200mm
Lens Material: Grilamid® (premium grade, UV stable, impact resistant nylon)
Base Material: Marine grade bronze
Compliance: CE, UKCA, EN55015 / CISPR 15, IEC60533, IEC61547, ICES-005, RCM
