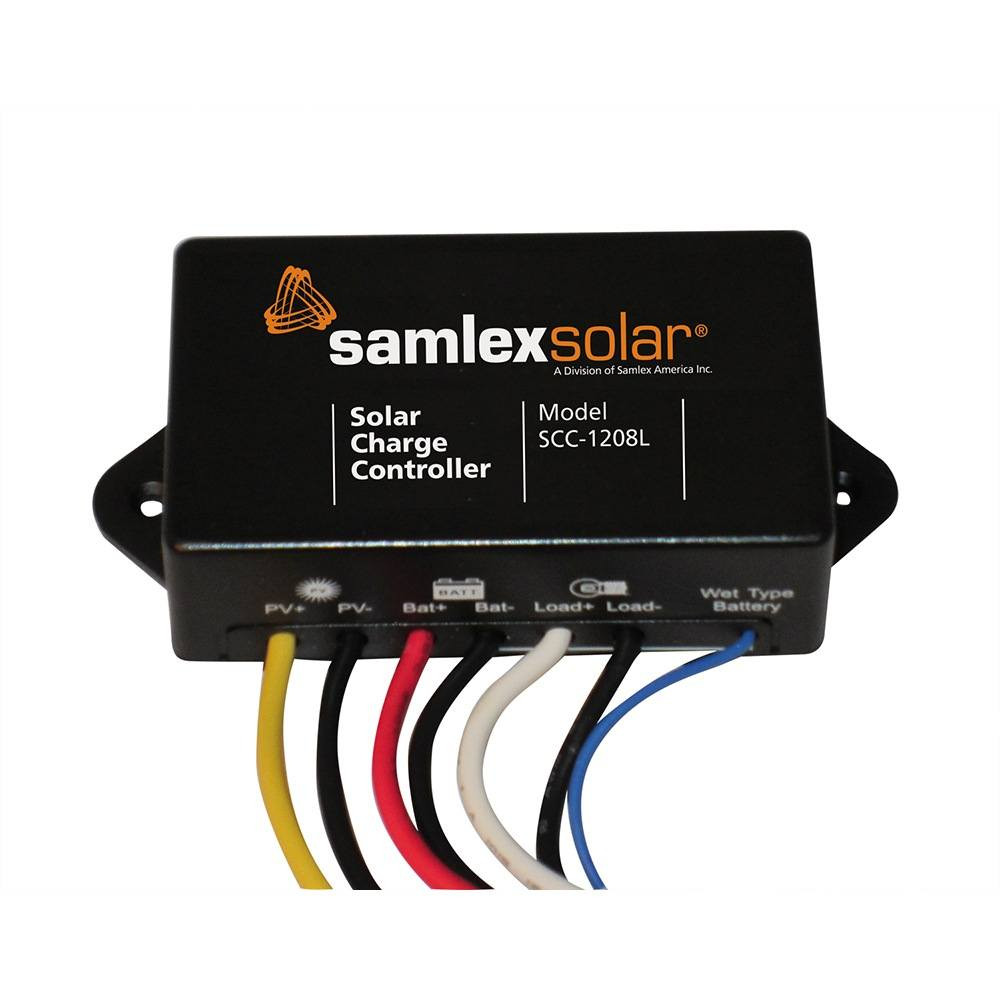

Solar Charge Controller - 12V - 8A
The SCC-1208L Charge Controller is Micro-controller based for automatic, intelligent operation designed for 12 V nominal solar panels and 12 V battery systems. It has 3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life. It can be used with 2 types of batteries: Flooded/Web Cell or Sealed AGM. The SCC-1208L can manage up to 150 Watts of Solar Power.
Features:
- Micro-controller based for automatic, intelligent operation
- Designed for 12V nominal solar panels and 12V battery systems
- 3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life
- For use with 2 types of batteries: Flooded/Wet Cell or Sealed AGM
- Totally sealed, splash proof weather resistant design (Ingress Protection Rating IP65)
- Automatically turns on lights when dark and turns off during the day
- Mosfet based reverse current blocking prevents night-time battery discharge and lowers power loss
- Protections: Overload, Over-Temperature, Battery Under/Over Voltage, Reverse Polarity
- Wide operating temperature range of -40°C to + 60°C
Specifications:
- Input: 12V
- Amps: 8 Amps
- Weight: 0.28 (lbs) / 0.13 (kg)
- Dimensions: 3.8 x 1.8 x 1.0 (in)
- Dimensions: 9.65 x 4.57 x 2.54 (cm)
- Safety: FCC, CE, IP65
- Warranty: 5 Year Limited
Applications:
- Off-grid mobile rural systems
- Rural electrification
- Power supply for remote equipment
- Monitoring systems for the oil & gas industry
- Traffic, security, environment, and other remote monitoring and signaling systems
- Water pumping systems
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Owner's Manual (pdf)
Brochure (pdf)
