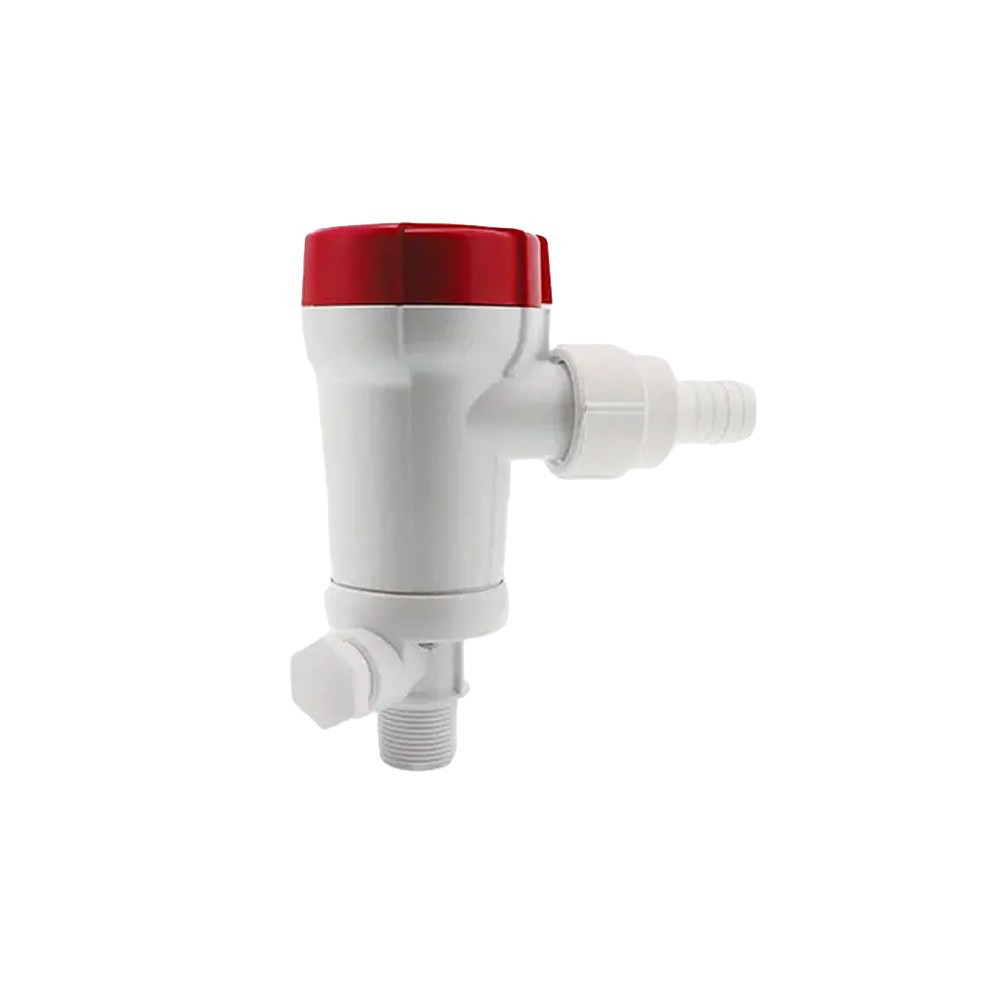

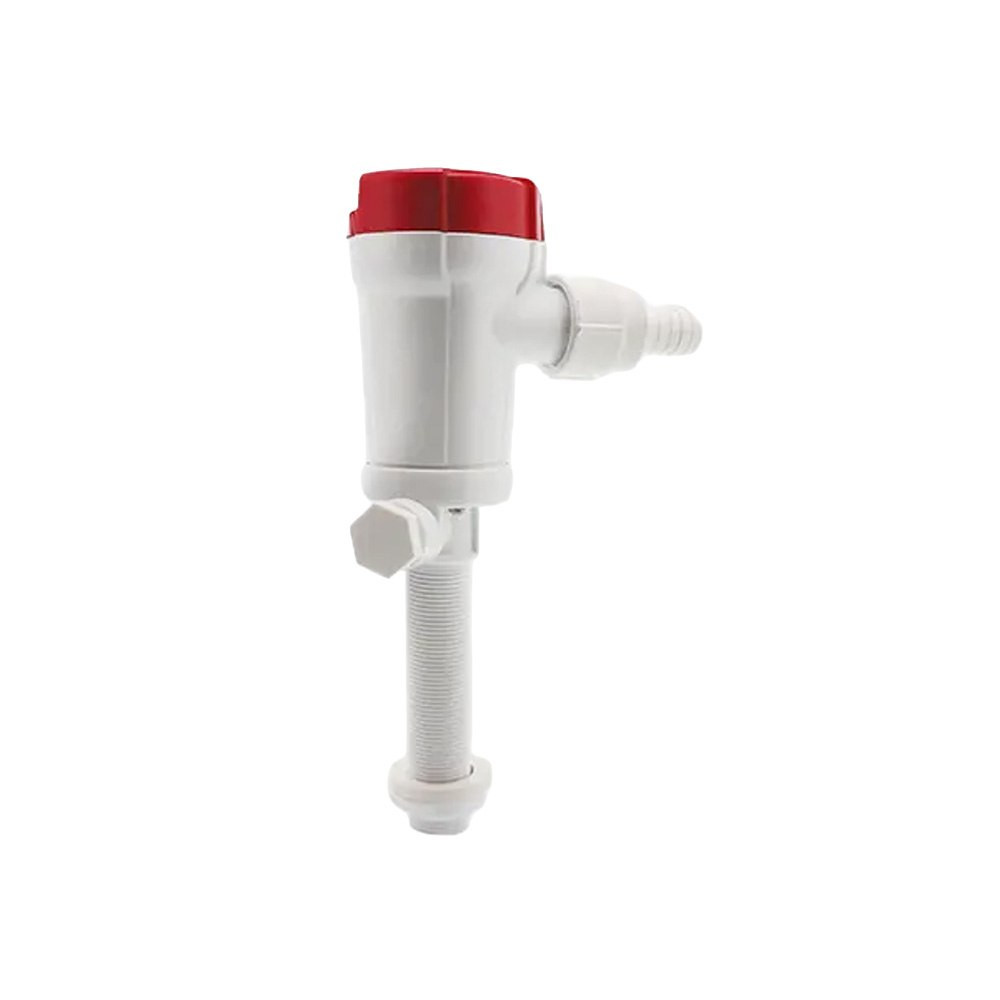

Rule 603FC 800 GPH Livewell Pump w/ Straight Seacock Inlet - 12V DC - MW
Rule 603FC 800 GPH Livewell Pump with Straight Seacock Inlet - 12V DC
Rule 603FC Livewell Pump is an 800 GPH high-performance livewell pump designed to provide efficient water circulation for maintaining healthy bait and catch. Featuring a straight seacock inlet design, this pump is engineered for dependable operation in demanding marine environments and includes advanced anti-airlock protection for consistent water flow.
Built for convenience and versatility, the Rule 603FC features a one-hand “twist & click” motor cartridge removal system for quick servicing in tight installation spaces. Its high-efficiency motor and impeller design help optimize bait health, while the secondary inlet port supports washdown pump connections for added functionality. Designed to withstand the pressures associated with high-speed water intake scoops, the Rule 603FC is ideal for modern fishing boats and high-performance vessels.
Features:
- High-efficiency pump design for optimal bait health
- Advanced anti-airlock protection
- One-hand “twist & click” motor cartridge removal and replacement
- Secondary inlet port for washdown pump connection
- Designed to withstand high inlet pressure from high-speed water intake scoops
- Compatible with multiple installation configurations
Specifications:
- Model Number: 603FC
- Open Flow Rate: 800 GPH
- Inlet Style: Straight Seacock
- Inlet Size: 3/4” NPT Thread
- Discharge Size: 3/4” Hose Barb
- Voltage: 12 VDC
- Amp Draw @ 12V DC: 4.1 Amp
- Recommended Fuse Size: 7.5 Amp
- Replacement Motor Cartridge: 66DR
