SeaStar Kicker Motor Cable Tie Bar Kit

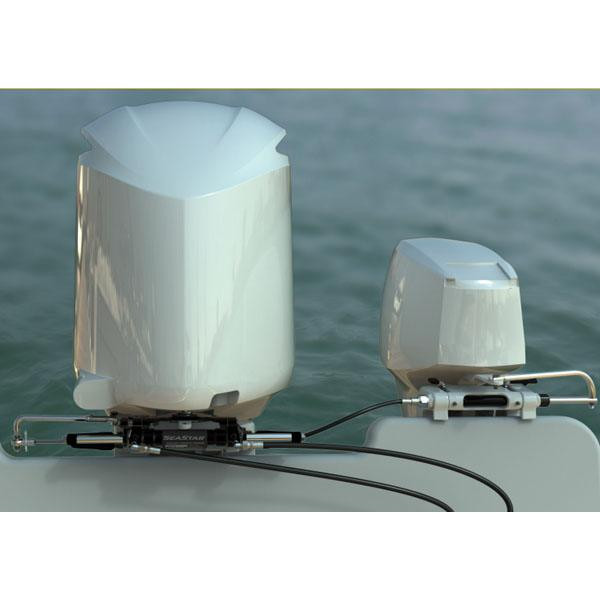

The SeaStar Kicker Cable Tie Bar Kit allows a user to manually steer an auxiliary engine (kicker motor) using their existing SeaStar hydraulic steering system.
Features:
- Flexible Cable Allows for Adjustable Locations of Kicker Motor
- Allows Independent Trim/Tilt of both Engines
- Allows full Stering Stroke of both engines
- Simplified Installation using Universal ABYC Steering Connection on kicker motor
- Retrofittable to SeaStar Front Mount Cylinders
- Incorporates unique patented XTREME Cable Technology

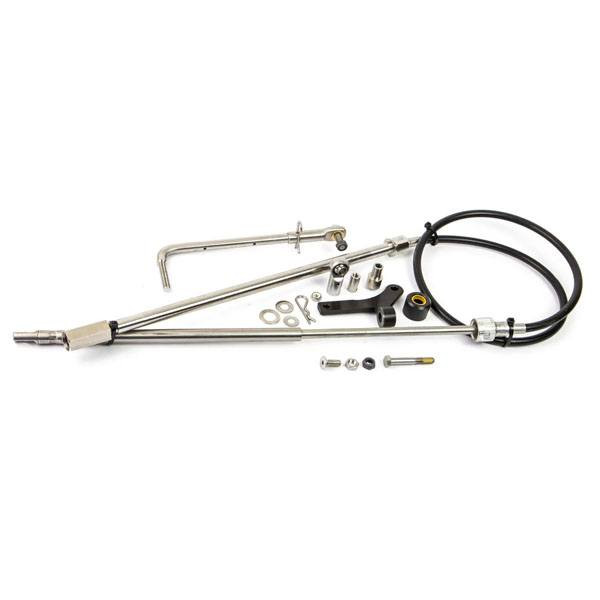

Includes:
- 1 Steering cable assembly
- 1 Pivot cylinder drive link-arm
- 1 Pivot cylinder drive plate
- 2 Support brackets
- Fasteners
Specifications:
| Part Number | Max Engine Horsepower | Cable Length (Nominal) | Cable Type |
| HO6116 | 20HP | 16 inches | Xtreme 40 series |
| HO6122 | 20HP | 22 inches | Xtreme 40 series |
| HO6128 | 20HP | 28 inches | Xtreme 40 series |
| HO6134 | 20HP | 34 inches | Xtreme 40 series |
| HO6144 | 20HP | 44 inches | Xtreme 40 series |
Installation Notes:
Kicker Cable Tie Bar systems require a minimum clearance of 14" from the end of the tilt tube towards the motor side well or gunnel. All systems shown are for port side kicker engine installations. Consult factory for starboard side installations.
NOT for use with BayStar steering systems. The Kicker Cable Tiebar will ONLY work with SeaStar HC5345, HC5358 and HC5348 steering cylinders.
