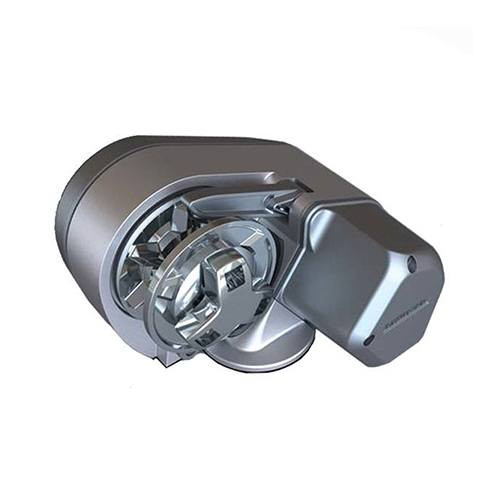

Lewmar Pro-Sport 550 Windlass
Lewmar's Pro-Sport rope/chain windlass is designed as an economical package for rope and chain applications, without compromise to quality or performance. Pro-Sport is designed around a highly efficient spur gearbox, using smaller, more powerful permanent magnet motors. It's DIY-ready and easy to install. Its rugged aluminum center case and durable composite side covers make Pro-Sport the perfect choice. Complete with push-button control, anchoring has never been easier. A demonstration of Lewmar's commitment to provide stylish, affordable, quality products for boats from 6m-9m (20-30ft).
Includes:
- Windlass
- Base gasket seal
- Fast mounting studs
- Installation wrench
- Contractor (68000939)
- Guarded rocker switch (68000593)
- Circuit breaker
Features:
- For use on boats up to 28ft (9m)
- Powerful motor providing superior line speed
- Low power consumption / current draw
- Dual direction powered operation
- Manual freefall
- Gypsy size, 7mm (1/4")chain
- Convenient above-deck installation
- Comprehensive range of switch gear options available
- 3-year warranty
Specifications:
- Motor Power: 150 W
- Max Pull Strength: 550 lbs.
- Working Load: 137.5 lbs.
- Max Line Speed: 98 ft/min
- Normal Current Draw: 20 A
- Circuit Breaker: 25 A
- Approx. Weight: 14 lbs.
Use with Lewmar 1/2" 3-Strand Premium Anchor Rode with 1/4" G4 Chain
Click here to download Lewmar Pro Sport Windlass User Manual
