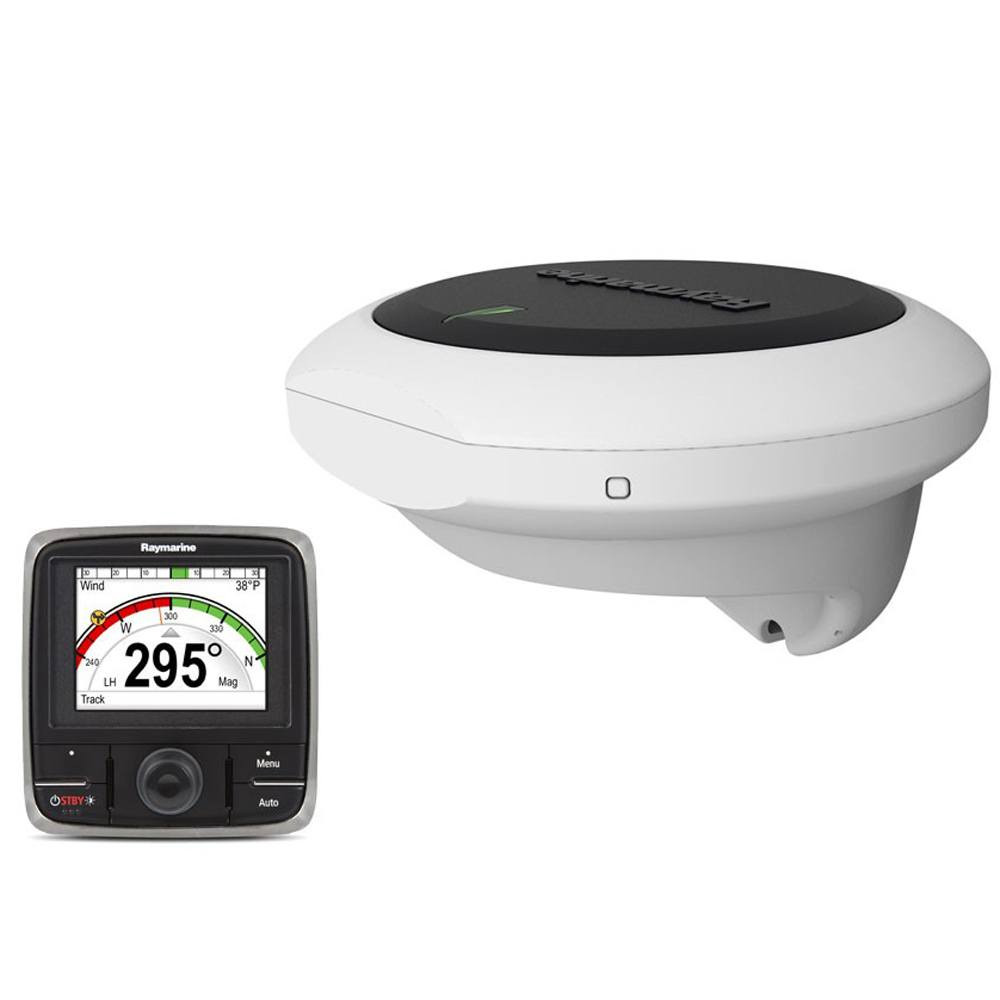

EV-DBW Evolution Autopilot f/Drive-by-Wire System

Pack Includes:

EV-2 for Drive-by-Wire Propulsion

EV-2 is designed for the latest drive-by-wire steering systems

EV-2 connects directly to Raymarine's SeaTalk^ng bus

It also has a dedicated CAN Bus port for direct connection to steer-by-wire steering systems:

• ZF Pod Drives
• Volvo† IPS* and Volvo Aquamatic
• Teleflex Optimus Systems
• Yanmar VC10 and JC10 (Joystick) Control Systems

A single CAN Bus connection to the EV-2 eliminates the need for an ACU, further simplifying installation

*Optional Volvo IPS gateway required and additional cabling

† Volvo and Volvo Penta are trademarks™ and/or registered® trademarks of Volvo Trademark Holding AB. Raymarine is not affiliated with, or endorsed by, Volvo.

p70Rs Autopilot Control Head (Power)

The p70Rs autopilot control head is designed for power craft with push buttons and a rotary control dial. Advanced LED backlighting offers low power consumption and delivers vibrant color and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.

The p70Rs control head also features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.

Evolution Cabling Kit - R70160

The Evolution SeaTalk^ng cable kit contains:

• 1 x SeaTalk^ng Power Cable (0.4m)
• 1 x SeaTalk^ng Backbone Cable (5m)
• 1 x SeaTalk^ng Spur Cable (0.4m)
• 1 x SeaTalk^ng 5-way Connector Block
• 2 x SeaTalk^ng T-piece Connector
• 2 x SeaTalk^ng Terminator

Evolution EV-2 Cabling Kit - R70192

The Evolution EV-2 SeaTalk^ng cable kit contains

• 1 x SeaTalk^ng Power Cable (0.4m)
• 2 x DeviceNet / SeaTalk^ng Adaptor Cable (Female)
• 2 x SeaTalk^ng Terminator

Specifications:

• Steering Type: Steer-By-Wire
• Box Dimensions: 7"H x 13"W x 19"L WT: 6.75 lbs
• UPC: 723193854112
