Perko Compact Main Battery Disconnect Switch - MW
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.

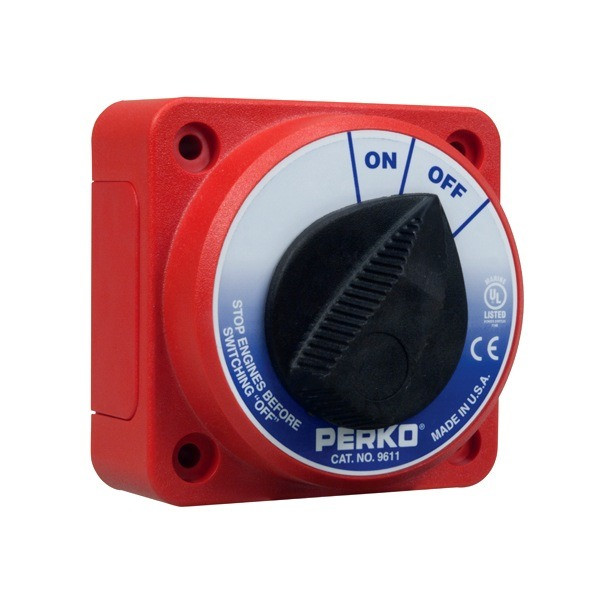

Perko Compact Medium Duty Main Battery Disconnect Switch
The Perko Compact Battery Disconnect Switch helps manage the overall use of electrical power on board. This device allows for a quick and easy way to shut down the entire electrical system in an emergency. During inactivity, the Perko Compact Battery Disconnect Switch will help prevent battery drain. This Disconnect Switch has a bright red polycarbonate housing with a large easy-to-turn black knob. Four removable skirt panels allow for easy cable connection from different directions. High conductivity studs are long enough to handle more than 1 cable and strong enough for toque needed for secure connections.
This compact battery disconnect switch has the same traditional footprint as the Perko 9601 series. This makes installation easy. These switches can be mounted in numerous locations and are ignition protected, so they can be installed in the engine rooms of gasoline powered boats.
Features:
- Requires 1/3rd less space to mount
- Popular 90° Easy to Identify Position Rotation
- On/Off Selector Versions
- Higher Rating than Popular 8500 Series Switches
- Same Bolt Pattern as Popular 8500 Series
- Smooth, Positive Position Selector

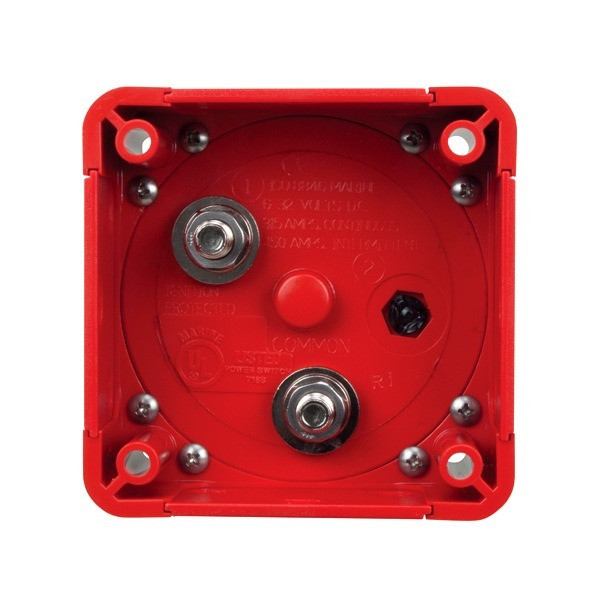

- Four removable side skirt panels for easy cable access and mounting
- Made in the USA
Specifications:
- Ignition protected
- For use with 6 to 50 Volt marine electrical systems
- Capacity: 315 AMPs continuous, 450 AMPs 5 Mins. Intermittent
- Terminal stud size: 3/8"
- Width: 4"
- Height: 4"
- Depth: 3"
Click to Download Perko Battery Disconnect Switch Installation Instructions
