Phender Pro Quick Release Fender Receiver

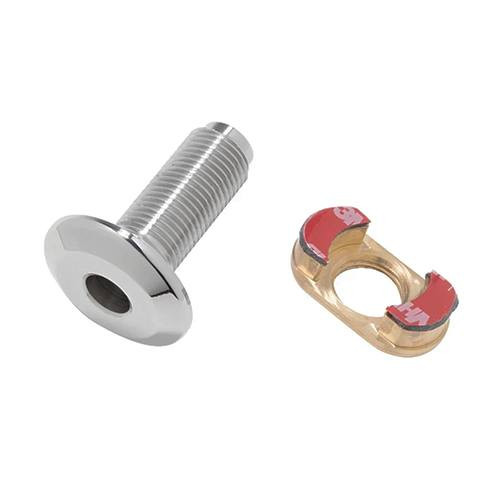

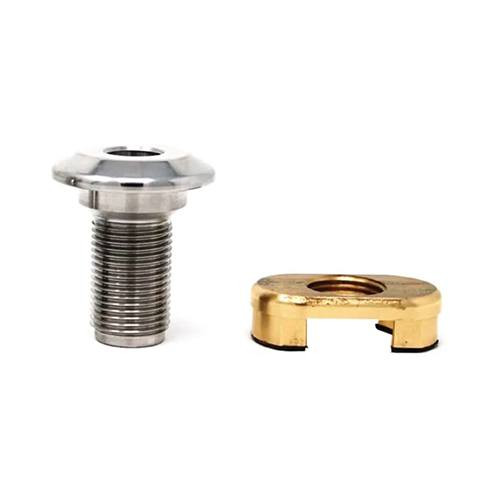

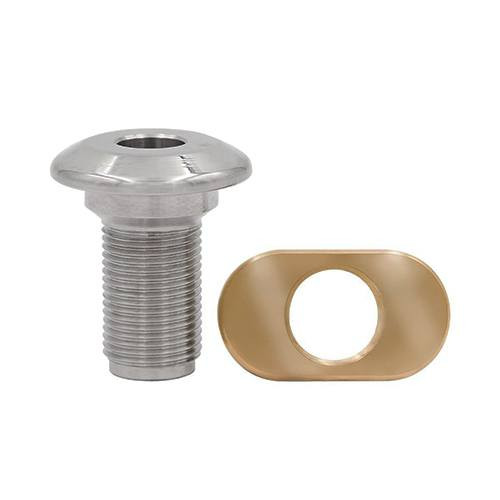

The Phender Pro Quick Release Fender Receiver makes docking quick, easy, and hassle-free. This durable receiver is machined from 316 stainless steel for maximum corrosion resistance. The Phender Pro Quick Release Fender Receiver includes both the stainless steel receiver and a brass nut plate. This receiver is easy to install with the Phender Pro Install Tool (sold separately).

For a 24' boat, it is recommended to purchase (2) Phender Pro Quick Release Fender Cleats, (1) Phender Pro Quick Release Fender Receiver, and (1) Phender Pro Install Tool.

Features:

316 Stainless steel receiver
Brass nut plate
Made in the USA

Sizes Available:

1/2"
3/8"

Phender-Pro-Made-in-USA

Phender Pro Install Tool is required for installation

Recommended Tools for the Installation Process:

Marine Grade silicone
Loctite (Blue)
Dust rag
3/8" Allen wrench
Painter tape
Pencil
New 1" Drill Bit (Spade Bit, Hole Saw, or Multi-Tooth Forstner Bit)
Phender Pro Install Tool (1/2" or 3/8" depending on which Phender Pro Receiver you purchase)

Pre-Installation:

Prior to installation, you will need to figure out where you will be installing your Phender Pro Receivers. Consider the following:

Each fender should be in the right location to fend off the boat.
Use the Locator Disk (included) to insure the hole will be drilled in a flat area. See the diagram below.

Phender-Pro-Installation-Diagram

Be sure to check behind where the hole will be drilled for structural pieces, cables, etc.
Put the receivers om the same spot on each side of the boat.

Once you have decided on where to place your Phender Pro Quick Release Receivers, it's time to drill the holes.

Using the Locator Disk, mark dead center of the receiver with a pencil.

1/2" Receiver = 1" Hole
3/8" Receiver = 3/4" Hole

Center punch each hole so the drill won't wander (a small nail can substitute for a center punch).
Drill the hole from the outside toward the inside. Be sure to stop about a third of the way through.
Use the hole in the center to drill from the inside just enough to score the fiberglass.

Note: Always finish drilling from the outside. This will minimize the risk of chipping the gel-coat.

Installing the Receiver:

Clean inside and outside surfaces
Screw install tool into the brass nut plate
Remove protective film from adhesive tape
Pivot nut plate, insert in hole, pivot back and pull several times to adhere tape on back side of fiberglass
Unscrew install tool
Apply marine grade silicone to underside of receiver head
Apply Loctite to receiver threads, screw into brass nut plate and tighten with Allen wrench

For more information regarding installation, refer to the video above. Each Phender Pro product comes with installation instructions included.
