Patriot Docks Straight Roll-In Dock With Poly Decking - MW
Patriot Docks Straight Roll-In Dock with Gray Poly Decking

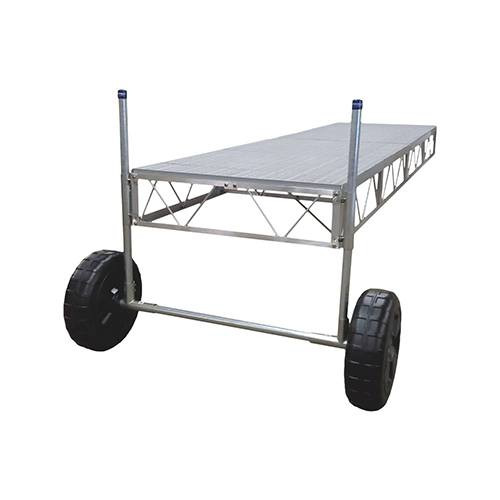

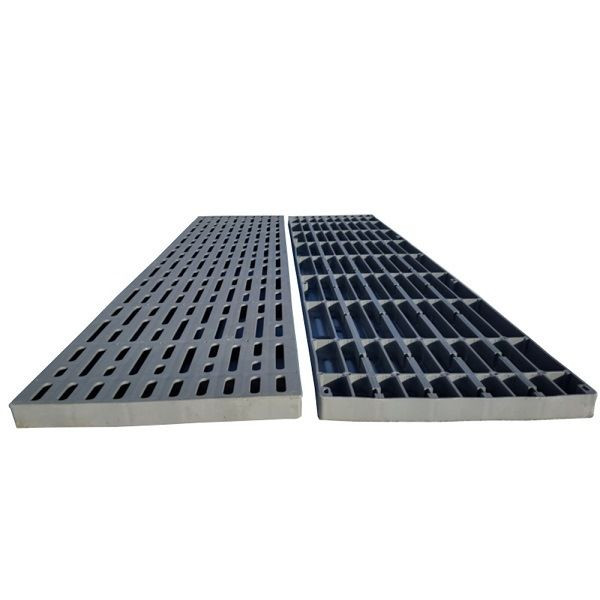

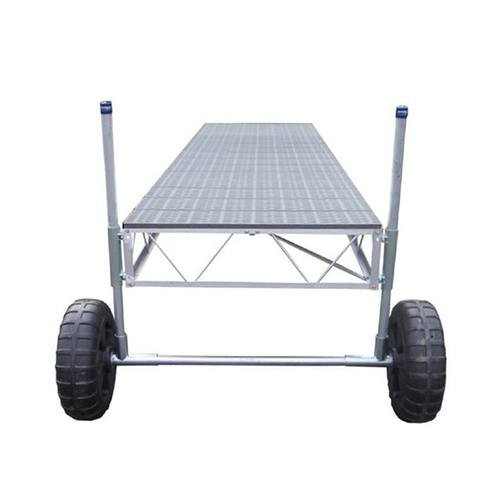

Patriot Docks Straight Roll-In Dock systems feature marine-grade aluminum frames paired with durable gray poly decking that resists weathering and requires minimal upkeep. The 24-inch wheels simplify seasonal installation and removal, while 12-inch deep aluminum truss frames with welded connections provide reliable stability. Each 4' x 4' panel includes dual aluminum stringers and molded polypropylene slats for enhanced rigidity. Construction utilizes heavy-duty 7/16" aluminum chord rods and schedule 40 electro-galvanized steel pipes, secured with double stainless steel set bolts. Available in lengths from 16' to 40', these systems include all necessary hardware and support posts matched to your dock length. The frame's side lip conceals decking edges for a clean finish.
Features:
- Patriot Docks Straight Roll-In Dock has a limited Lifetime Warranty on aluminum frames and aluminum decking.
- Maximum span between supports is 16'.
- Side lip on the frame to hide decking edge.

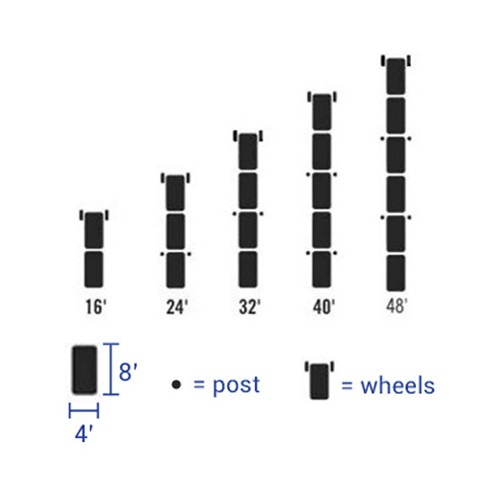

Standard post lengths at given dock lengths: <16' = 4' supports, 16'-32' = 6' supports, >32' = 8' supports.
16' Straight Roll-In Dock Kit Includes:
- (2) 4 x 8 Frames
- (4) 4 x 4 Deck Panels
- (1) End Rail
- (2) Post Brackets
- (2) 4' Posts
- (2) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
24' Straight Roll-In Dock Kit Includes:
- (3) 4 x 8 Frames
- (6) 4 x 4 Deck Panels
- (1) End Rail
- (4) Post Brackets
- (2) 4' Posts
- (2) 6' Posts
- (4) Foot Plates for Posts
- (4) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
32' Straight Roll-In Dock Kit Includes:
- (4) 4 x 8 Frames
- (8) 4 x 4 Deck Panels
- (1) End Rail
- (4) Post Brackets
- (2) 4' Posts
- (2) 6' Posts
- (2) Foot Plates for Posts
- (4) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
40' Straight Roll-In Dock Kit Includes:
- (5) 4 x 8 Frames
- (10) 4 x 4 Deck Panels
- (1) End Rail
- (6) Post Brackets
- (2) 4' Posts
- (2) 6' Posts
- (2) 8' Posts
- (4) Foot Plates for Posts
- (6) Vinyl Caps for posts
- Nuts and Bolts
- (2) 24" Plastic Dock Wheels
- (1) Axle Converters (Pair)
- (1) HD Stop Clamps (Pair)
- (1) 8'6" Axle Pipe
Click to Download Patriot Docks Assembly Instructions
Click here to see Patriot Dock shipping and delivery agreement & policy
