Blue Sea Systems DualBus 100A Common BusBars
The Blue Sea Systems DualBus BusBar combines negative and positive buses on one block.
Features:
- Combines negative and positive buses on one block
- 100 Amp continuous rating
- CE Certified
Specifications:
- Base Material: UL 94-V0 rated, glass reinforced thermoplastics
- Bus Material: Tin-plated copper CDA 110 / UNS 11000
- Screw terminal torque: 15 in-lb
- Accepts #10 (M5) screws
| Part Number | No. of Screw Terminals | Terminal Type | Dimensions | Weight |

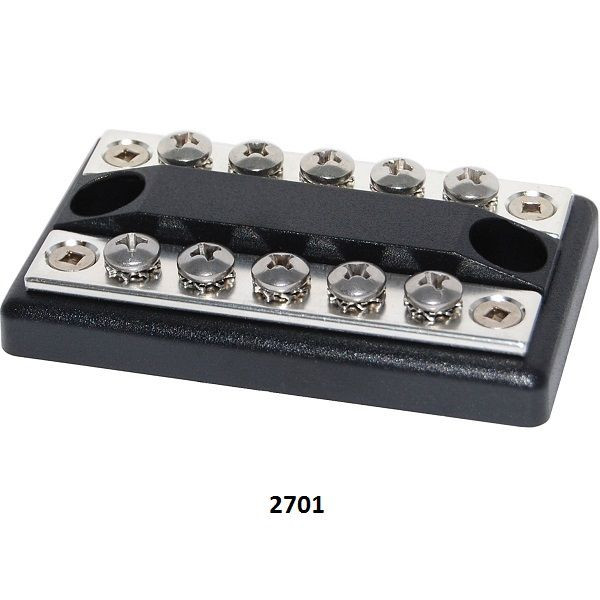

| 2701 | 5 per bus | #8-32 Screw | 1.830" x 3.012" | 0.17 lbs. |

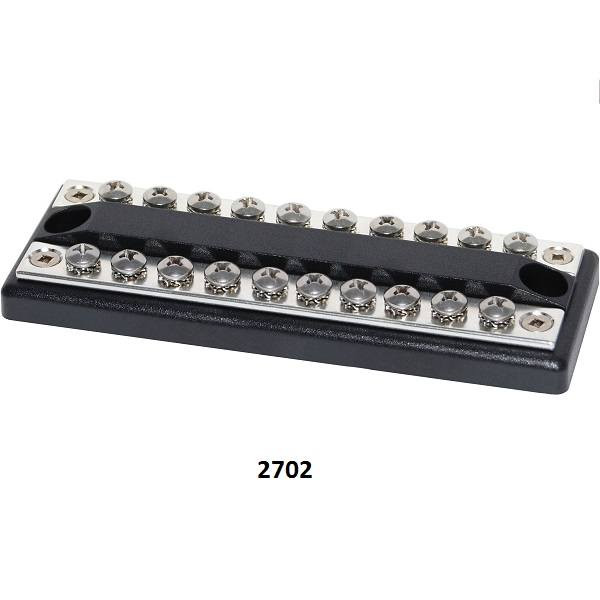

| 2702 | 10 per bus | #8-32 Screw | 1.830" x 5.060" | 0.27 lbs. |
