Raritan 25M00 Fresh Head Right Hand Operation Marine Toilet - MW

Name: Raritan 25M00 Fresh Head Right Hand Operation Marine Toilet - MW
Brand: Raritan Engineering (MW)
SKU: XRAR-25M00
Availability: InStock

SKU XRAR-25M00 MPN 54063 UPC 85462035531 MFR Raritan Engineering (MW)

Express

Toronto, ON Vancouver, BC NJ, Warehouse FL, Warehouse

"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.

In Stock

Purchasing Code Required

To order this product online, please contact us with the quantity you need and your ZIP / postal code to receive your purchasing code. Some locations are restricted at this time.

Request Purchasing Code

Already have a code? Enter it below to unlock pricing and purchasing.

Ask a question about this product

Back to: Marine Toilets

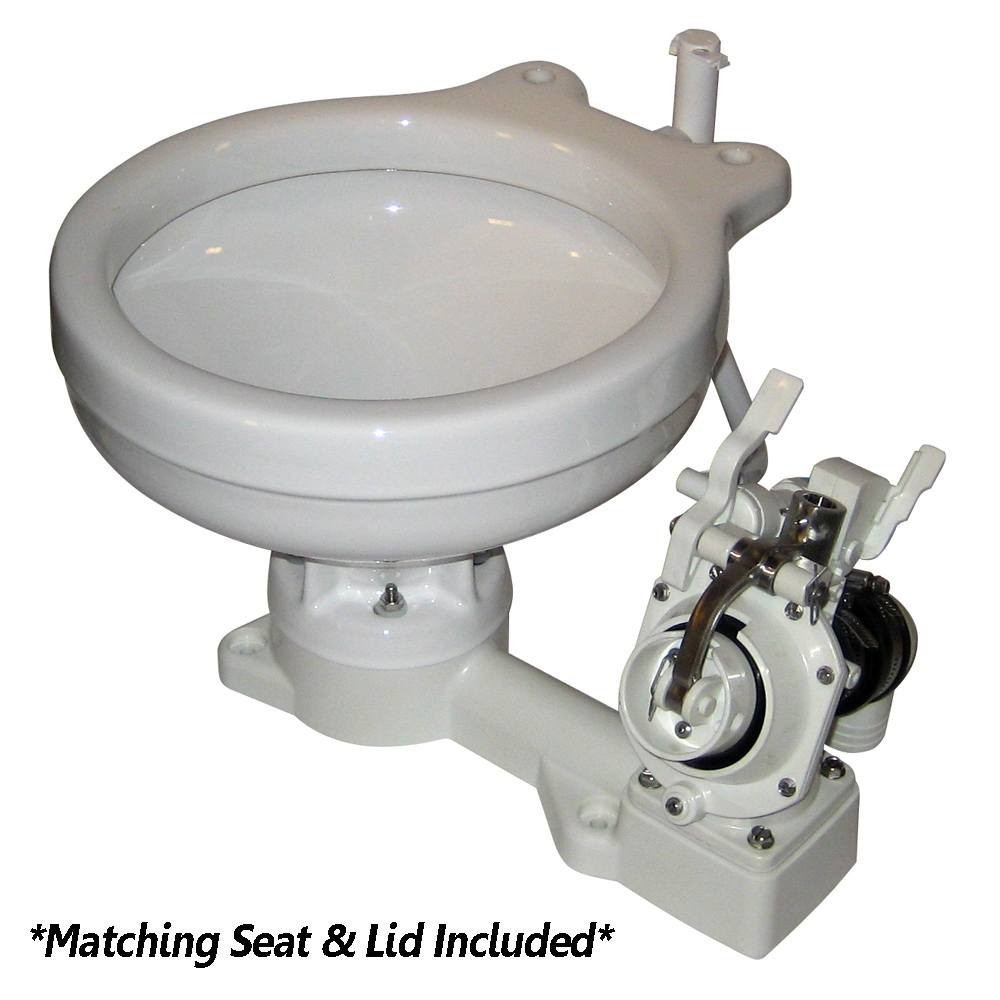

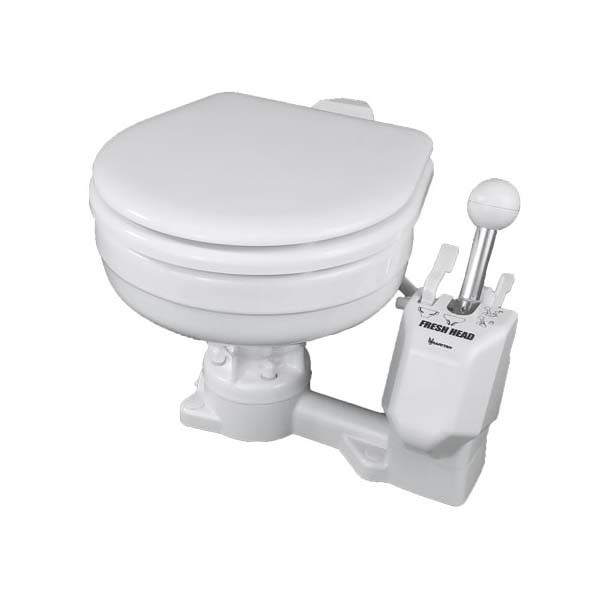

Fresh Head - Fresh Water Flush - Manual - Marine Size - Right Hand Operation

Fresh Head is a manual marine toilet designed to be flushed with pressurized fresh water. Freshwater flushing provides an odor free flush since no sealife can decay in the rim of the bowl. Discharge pump is a diaphragm pump with telescopic handle for ease in flushing. The pump can be locked to prevent waste water back flow.

With a diaphragm type pump and telescopic handle, flushing is extremely easy. Owners choose how much water to use. A lever allows water into the bowl to pre-wet it for a better flush. A built-in freshwater backflow prevention includes a vacuum break. A lock-out feature stops backflow coming in through the discharge when not in use.

Raritan products are chosen by powerboat, sailboat, houseboat, and RV owners and manufacturers the world over for their dependability, environmental responsibility, simplicity of installation, operation, and maintenance. The product line includes house-hold style toilets, marine toilets, marine sanitation devices and systems, cleaning products, icemakers, water heaters, and rudder angle indicators.

Features:

The first manual marine toilet to utilize pressurized fresh water - eliminates calcium deposits in discharge hose
Footprint is a direct replacement for competitive models
No Thru Hulls necessary when installed with a holding tank
Low water use toilet
Available as Left hand side pump
PHII toilets can be retrofitted by purchasing the retro-fit pump
Lock feature prevents potential backflow and possible flooding

Specifications:

Rinse Water For Inlet: 1/2" FPT
Maximum Pressure: 150 PSI (10 bar)
Minimum Pressure: 3 GPM (11.3 L/min) @ 10 PSI (0.7 bar)
Discharge: 1-1/2" Hose
Maximum Height: 15 ft (4.5 m)
Average Water Consumption Per Use: 1 pint (.47 L) for liquid use, 3.4 G (2.8 L) for solid use
