Sierra 18-3317 MerCruiser 2763442 - 6854392 Water Pump Kit - (MW)
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
5 available
$57.59
MerCruiser Pre-Alpha Water Pump Housing Kit by Sierra
For #1/R Units without flush S/N 2763442 - 6854392 Pre-Alpha MerCruiser Drives. Models which have been retro fitted with an Alpha style (no preload pin on top of driveshaft) must use Kit # 18-3320.

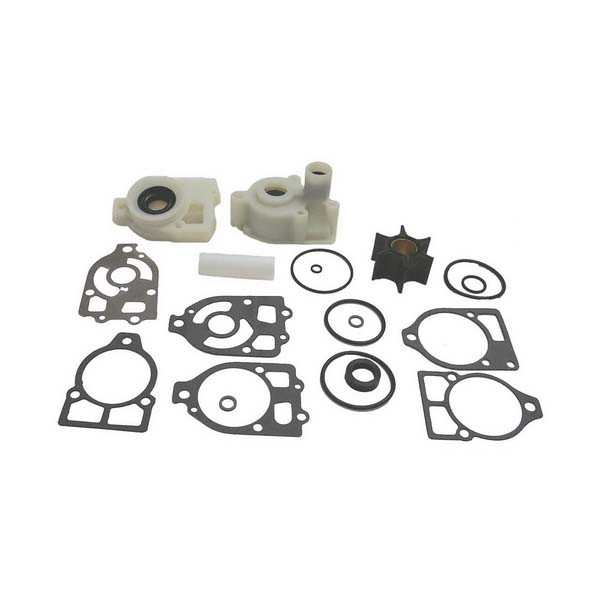

Kit Includes:
- 18-3109 - Water Tube
- 18-3017 - Impeller
- 18-3116 - Housing
- 18-2919 - Water Pump Base to Gear Housing Gasket
- 18-3417 - Water Pump Base
- 18-3110 - Grommet
- 18-2945 - Gear Housing Drain Screw Gasket
- 18-2826 - Water Pump Base to Gear Housing Gasket
- 18-2914 - Lower Water Pump to Wear Plate Gasket
- 18-2915 - Upper Water Pump to Wear Plate Gasket
- 18-2944 - Seal Ring
- 18-3117 - Plate
- 18-7158 - O-Ring
- 18-7162 - O-Ring
- 18-7173 - O-Ring
- 18-7176 - O-Ring
- 18-2801 - Water Pump Gasket
- 18-7196 - O-Ring
- 18-7426 - O-Ring
- 18-2919 - Water Pump Gasket
WARNING: Cancer and Reproductive Harm - P65Warnings.ca.gov
Product Specifications
| Dimensions | 6.0000" L × 6.0000" W × 6.0000" H |
|---|---|
| Shipping Weight | .99 lb |
