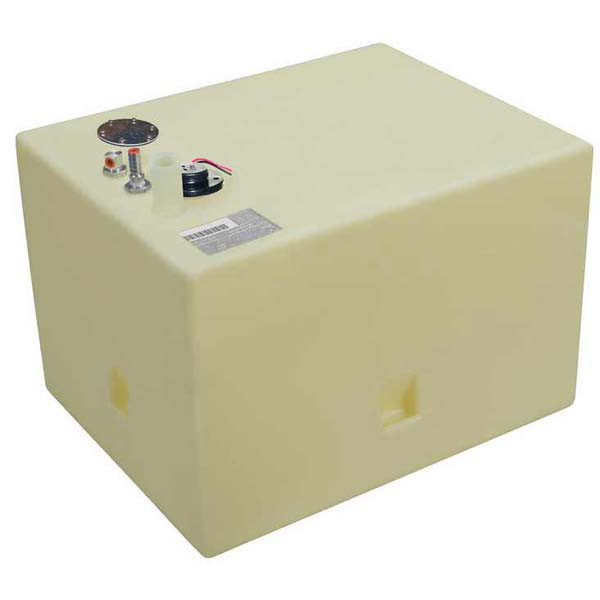

Moeller 40 Gallon Fuel Tank - MW
Moeller 40 Gallon Fuel Tank
Unlike aluminum tanks, this comprehensive line of cross-linked polythylene models is a distinctive Moeller innovation featuring: ethanol & biodiesel compliant corrosion/pit resistance & exclusive Moeller tite pioneering. Each tank is complete with molded fill neck & withdrawal/vent fittings molded directly into the shell. Moeller permanent fuel tanks have ABYC-compliant fittings with seamless connections to low-perm hoses.
Features:
- Moeller is your single source for the ultimate in below-deck technology.
- Machined aluminum 3/8" withdraw fitting has 360° swivel poplock for hook-up convenience
- UV rating of 8 - Temperature rating of -40°F to 176°F
- 1 1/2" Diameter Fill Spout
- Add 2-1/8" (54mm) to tank height dimension to accommodate fill height.
- Uses MOE-035710 hold down kit
Helpful Hint: You may have more area above the fill than the rest of your tank, this will allow you to have a larger tank!
Specifications:
| Capacity | 40 Gal / 151 L |
| Length | 26" |
| Width | 20.50" |
| Height | 21.25" |
| Bracket Tie Down | 035710 or 300110 |
| # Fuel Pickups | 1 |
This is a special order item and cannot be returned.
Moeller 40 Gallon Fuel Tank FAQs
What is the capacity of the Moeller 40 Gallon Fuel Tank?
The Moeller 40 Gallon Fuel Tank has a 40 gallon, or 151 liter, capacity.
What are the dimensions of the Moeller 40 Gallon Fuel Tank?
The Moeller 40 Gallon Fuel Tank measures 26" long, 20.50" wide, and 21.25" high. Add 2-1/8" to the tank height to accommodate the fill height.
What material is this Moeller fuel tank made from?
This Moeller fuel tank is made from cross-linked polyethylene for corrosion and pit resistance.
What size is the fill spout on this Moeller fuel tank?
The Moeller 40 Gallon Fuel Tank has a 1-1/2" diameter fill spout.
Which hold down kit does this Moeller fuel tank use?
This fuel tank uses the Moeller 035710 hold down kit. The listed bracket tie down options are 035710 or 300110.
How many fuel pickups does the Moeller 40 Gallon Fuel Tank have?
The Moeller 40 Gallon Fuel Tank has one fuel pickup.
Can the Moeller 40 Gallon Fuel Tank be returned?
No, this is a special order item and cannot be returned.
Moeller 40 Gallon Fuel Tank FAQs
What is the capacity of the Moeller 40 Gallon Fuel Tank?
The Moeller 40 Gallon Fuel Tank has a 40 gallon, or 151 liter, capacity.
What are the dimensions of the Moeller 40 Gallon Fuel Tank?
The Moeller 40 Gallon Fuel Tank measures 26" long, 20.50" wide, and 21.25" high. Add 2-1/8" to the tank height to accommodate the fill height.
What material is this Moeller fuel tank made from?
This Moeller fuel tank is made from cross-linked polyethylene for corrosion and pit resistance.
What size is the fill spout on this Moeller fuel tank?
The Moeller 40 Gallon Fuel Tank has a 1-1/2" diameter fill spout.
Which hold down kit does this Moeller fuel tank use?
This fuel tank uses the Moeller 035710 hold down kit. The listed bracket tie down options are 035710 or 300110.
How many fuel pickups does the Moeller 40 Gallon Fuel Tank have?
The Moeller 40 Gallon Fuel Tank has one fuel pickup.
Can the Moeller 40 Gallon Fuel Tank be returned?
No, this is a special order item and cannot be returned.
