Raymarine Axiom 2 RV 12" Chartplotter/Fishfinder w/RealVision 3D Sonar - No Transducer - MW

Name: Raymarine Axiom 2 RV 12" Chartplotter/Fishfinder w/RealVision 3D Sonar - No Transducer - MW
Brand: Raymarine (MW)
SKU: XRAY-E70725
Availability: OutOfStock

SKU XRAY-E70725 MFR Raymarine (MW)

Back Order

Toronto, ON Vancouver, BC NJ, Warehouse FL, Warehouse

On Back Order

This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.

Purchasing Code Required

To order this product online, please contact us with the quantity you need and your ZIP / postal code to receive your purchasing code. Some locations are restricted at this time.

Request Purchasing Code

Already have a code? Enter it below to unlock pricing and purchasing.

Ask a question about this product

Back to: Raymarine Axiom

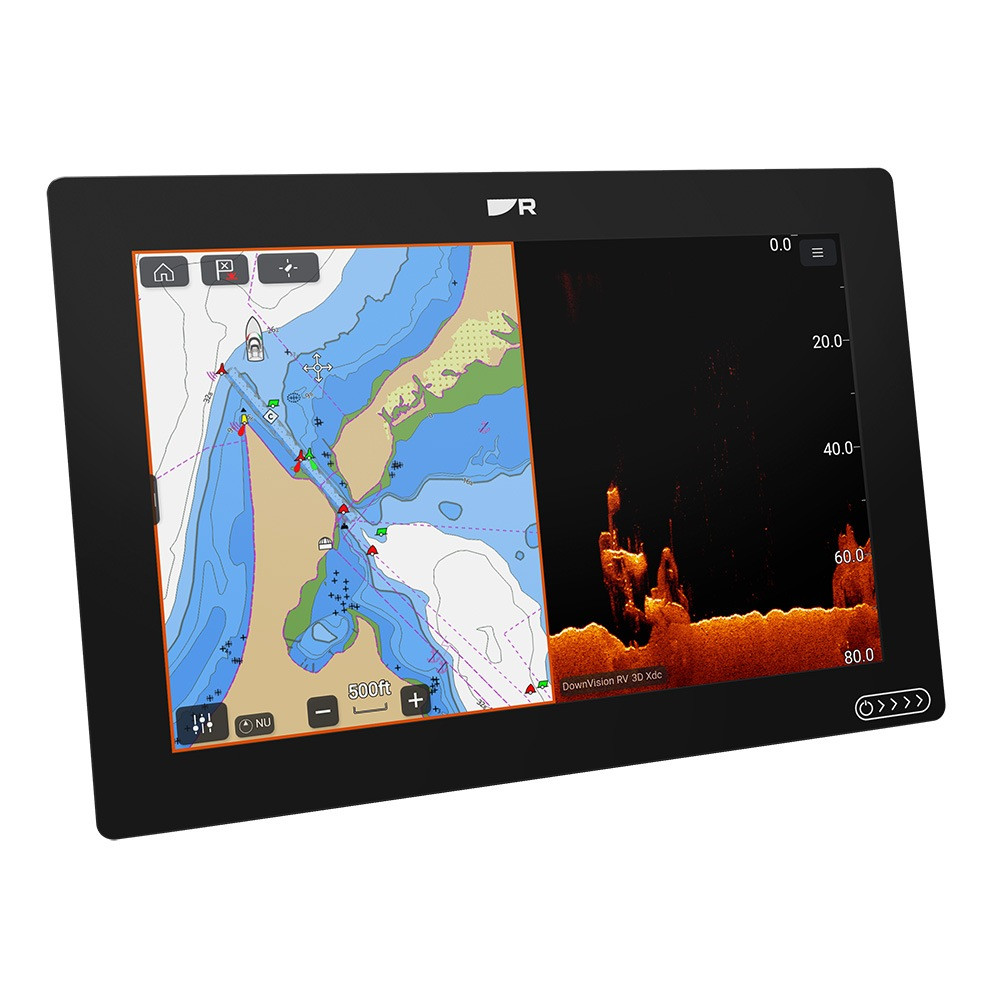

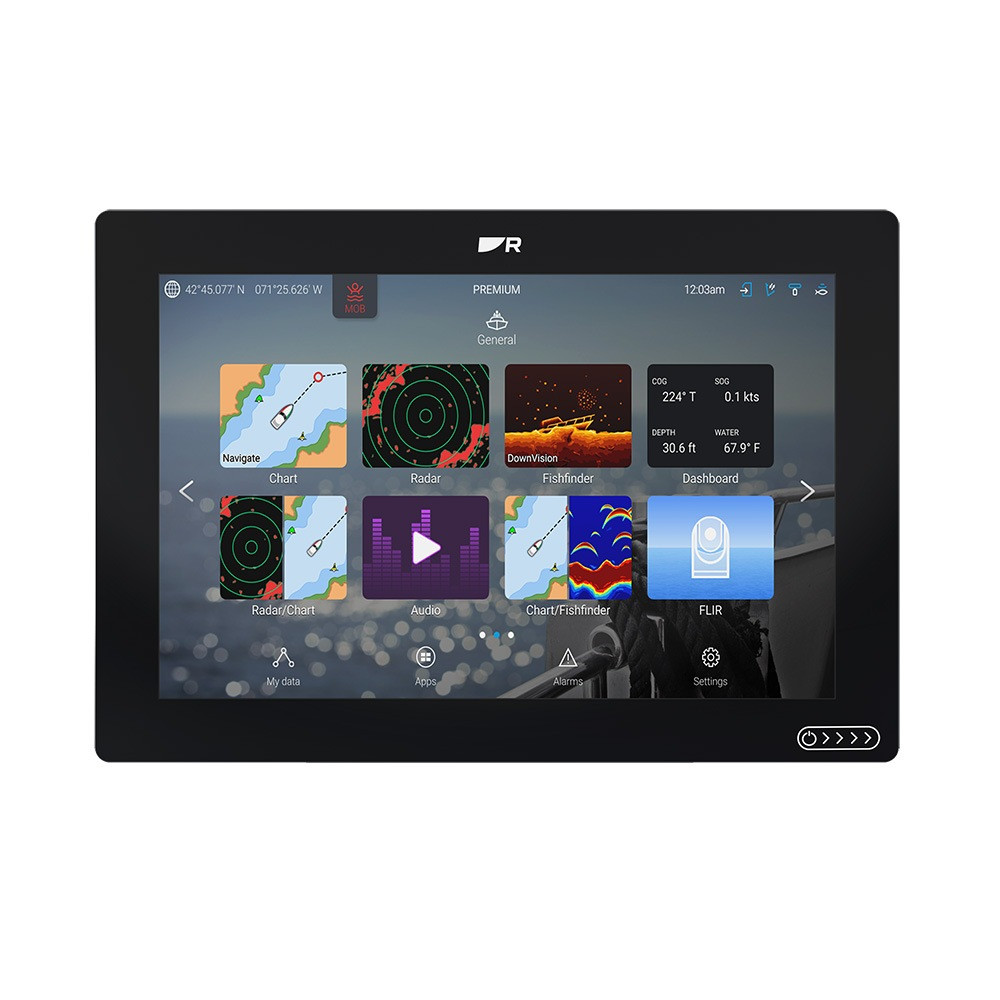

Axiom 2 RV 12" Chartplotter/Fishfinder with RealVision 3D Sonar - No Transducer

Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough™ displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarine’s signature durability and ease of use.

See More Below the Surface with RealVision Fish Finder

Scan wider, see deeper and understand the bottom instantly with SideVision™, DownVision™, RealVision™ 3D, and 600W CHIRP sonar - all built in. With an all-in-one GPS chartplotter with fish finder, you can spot fish faster, view underwater structure clearly, and fish confidently from every angle.

Features:

Rugged all-weather, marine-ready design backed by a 3-year warranty.
6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance.
7, 9, and 12-inch HydroTough™ IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility.
Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps.
RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices.
64 GByte of onboard storage for apps, charts, video, and user data.
Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more.
Built-in high-performance GPS / GNSS with fast 10 Hz position updates.
Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.

Technical Specifications:

Dimensions (Trunnion mounted) - 12.36" (W) x 8.93 (H) x 7.01" (D)
Dimensions (Surface / Flush mounted) - 12.36" (W) x 8.54" (H) x 7.01" (D)
Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC
Power Consumption (max) - 18.96W
Inline fuse / thermal breaker rating - 7A
Size & Type - 12.1" (diagonal), IPS
Resolution - WXGA 1280 x 800
Brightness/luminance - 1800 bits / 1800 cd/m²
Protective Coating - HydroTough™ (Oleophobic)
Transducer - 1x 25-pin RealVision connector
NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1)
Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0
GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate)
Internal Storage - 64 GByte (Solid State)
External MicroSD storage - 1x MicroSDXC card slot
Sonar Channels (Output power / Responsive Frequency Range) - RealVision 3D: (70 W / 350 kHz ± 5%), SideVision: (70 W / 350 kHz ± 5%), DownVision: (35 W / 350 kHz ± 5%), CHIRP High: (100 W / 200 kHz ± 5%)
