Skeggard Stainless Steel Skeg Guard - MW
Skeggard Stainless Steel Skeg Guard

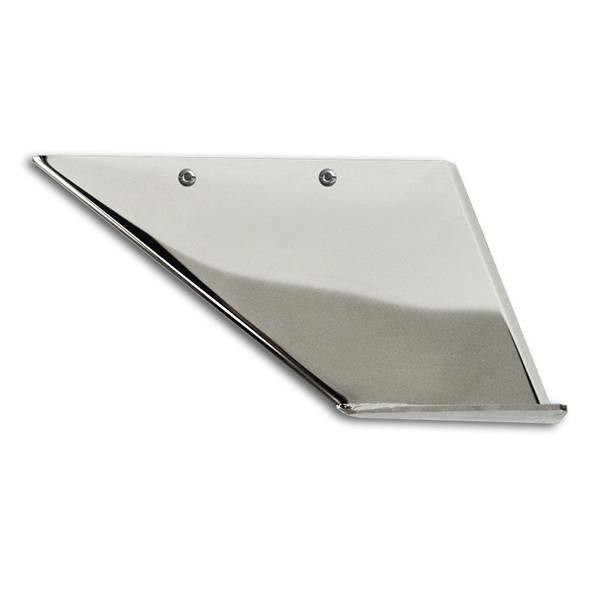

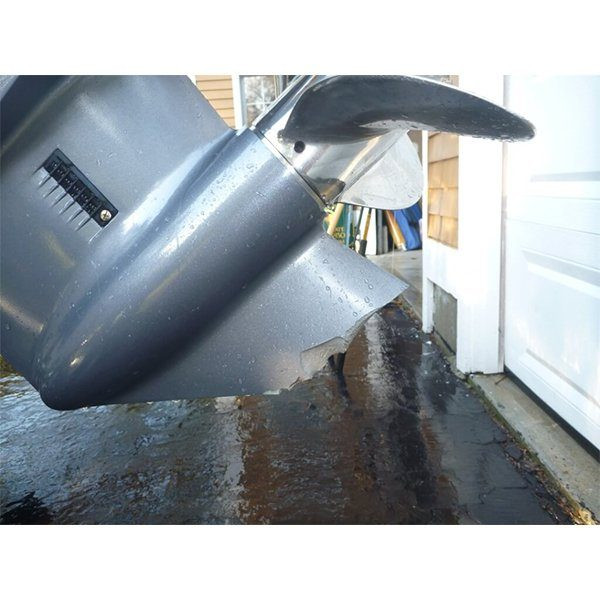

Made from marine grade stainless steel and built in America. This skeg guard is the perfect product to repair your broken skeg to like new conditions. The skeg guard easily slides onto a new or broken skeg like a cap. No welding required, the skeg guard taps into place. Two holes are placed in the skeg guard for ready and easy installation with the included hardware kit. The included bolts used to install the skeg are made specially to shear in the event of a severe impact. Whether your want to repair your damaged skeg or protect your new one, Skeggard has you covered!
Features:
- Marine grade stainless steel
- Skeggard Lifetime warranty
- Can be installed with 2-3" of skeg remaining
- Easy install with no welding needed
- Repairs broken to like new
- Prevents skeg damage
- Mounting bolts designed to shear in severe impact
How to Install Skeggard:
- Make sure you have 2-3" of skeg remaining. Prepare skeg of the lower unit by filing or sanding rough or jagged edges.
- Install the Skeggard onto the new or damaged skeg. Tap into place with a rubber mallet or block of wood. DO NOT FORCE!
- Use the predrilled holes as guides and drill through your skeg using a 1/4" drill bit. Install the hardware through the Skeggard only finger tight
- Hardware must tighten against the sides of the Skeggard.
- Remove the hardware and apply the supplied LOCTITE. Shake well before use and ensure threads are clean.
- To open LOCTITE snap the tube neck below the end cape. Apply to threaded areas, assemble hardware, and tighten securely.
- You MUST wait 24 hours to allow LOCTITE to fully cure. Failure to do so may result in loss of product and incomplete repair.
| Application Guide |
| Evinrude |
| 99014 - 40 (86-98), 45 (95-96), 48 (94-96), 50 (84, 94-98) 2 Stroke |
| 99013 - 40 (96-01, 04-15), 45 (94,97), 50 (94-99,04-15) 55 (95-01, 08-15) 60 (90,93-98, 05-15) 65 (94-01, 05-12), 70 (94-98) 2 Stroke |
| 99010 - 65 (94-95), 80 (94-96), 85 (94/95), 88 (90,94-96), 90 (85,94-98), 100 (94, 96-97), 110 (89), 112 (94-96), 115 (94-98), 120 (94), 125 (94), 140 (94) 2 Stroke |
| 99035 - 65 (13-15), 75 (07-15), 90 (06-15), 90 (06-15), 115 (07-15), 130 (09-15) 2 Stroke |
| 99025 - 75 (00-05), 80 (98), 90 (95-05), 100 (98,04-05), 115 (95-05) 2 Stroke |
| 99008 - 90 (95-98, 04-15), 100 (94-01), 105 (94-01), 115 (95-01,07-15), 120 (94), 125 (95-98), 130 (95-98,09-15) 135 (00-06), 140 (94), 150 (94-01,03-15), 175 (94-01,03-15), 185 (94) 200 (94-01,07-15) 225 (94-01), 250 (94-01), 300 (94/95) 2 Stroke |
| 99023 - 115 (02-06), 135 (02-06,13-15), 150 (02-15), 175 (02-15), 200 (02-15), 225 (02-15), 250 (02-15), 300 (08-15) 2 Stroke |
| 99037 - 135 (13-15), 150 (08-15), 200 (08-12), 225 (08-10), 250 (08-10) 2 Stroke |
| Force Outboards |
| 99007 - 70 & 90 (by Mercury) (98-02) 2 Stroke |
| 99018 - 85 & 90 (88-96), 90-120-150 L Drive (88-91), 120-125-150 (88-97) 2 Stroke |
| Honda |
| 990017 - 35-40-45-50 (91-11), 90 & V-Tec (08-11) 4 Stroke |
| 99007 - 60-75-90 (10/11), 75-90-115 (95-07) 4 Stroke |
| 99027 - 115 (10/11), 135-150-200-225 (04-11) 4 Stroke |
| 99031 - 130 (98-05) 4 Stroke |
| Johnson |
| 99014 - 40 & 50 (86-00) 2 Stroke |
| 99034 - 40 & 50 by Suzuki (01-03) 4 Stroke |
| 99013 - 60 & 70 (84-00), 40-50-60 & E-Tec (04-11) 2 Stroke |
| 99026 - 60-70-90-115-140 (01-03) by Suzuki 4 Stroke |
| 99025 - 75 Thru 130 E-Tec 25" & 30" (04-11), 100 & 115 (03-05) 2 Stroke |
| 99035 - 75 Thru 115 E-Tec 20" Shaft (08-11) 2 Stroke |
| 99010 - 90-100-120-115-140 (80-01) 2 Stroke |
| 99008 - 150-175-185-200-225 (86-03), 150-200 E-Tec 20" Shaft (04-11) 2 Stroke |
| 99023 - 150-200 E-Tec 25" & 30" (04-11), 25-300 E-Tec All Models (04-11) 2 Stroke |
| Mariner |
| 99016 - 40-50-60-65-70 (80-85) 2 Stroke |
| 99017 - 40-50-60 (86-02) 2 Stroke |
| 99034 - 40-50-60 (03-11) 2 & 4 Stroke |
| 99007 - 50-60 Big Foot (03-11), 70 Thru 125 Incl Optimax (83-11) 2 & 4 Stroke |
| 99006 - 135-150-175-200 (78-05) 2 & 4 Stroke |
| 99006 - 225 (78-95) 2 Stroke |
| 99006 - 135-150-175-200 Optimax (05-11) 2 Stroke |
| 99021 - 200 EFI (96-05), 225 (96-04) 2 Stroke |
| 99021 - 150 Thru 300 & Verado (05-11) 4 Stroke |
| New Mercury |
| 99016 - 40 (80-83, 01-04, 06-12), 50 (80,06-14), 70 (80) 2 Stroke |
| 99016 - 40 (04) 4 Stroke |
| 99017 - 40 (89-01), 50 (90), 60 (00,02,05) 2 Stroke |
| 99017 - 40 (99,01,06-12), 50 (95/99), 50 4 Cyl (00), 60 (05) 4 Stroke |
| 99007 - 60 Big Foot (03-05), 75 (90,03-05,12,14), 80 (90), 90 (88,90,01,03-05), 100 (90), 115 (84,90,93,03-07,11), 125 (03-05) 2 Stroke |
| 99007 - 90 Optimax (12), 115 Opti (11,13) 2 Stroke |
| 99007 - 50 4 Cyl (99-00) 4 BF Stroke |
| 99007 - 40 (99,05,13-16), 40 Big Foot (01-04, 06-12), 50 (06-15), 50 Big Foot (03-14), 50 ELPT/BF (05), 60 Big Foot (03,05,12), 60 4 Cyl Big Foot (01), 60 FS (15), 75 (03-05,11), 90 (01,03-06,10), 90 FS (12), 115 (03-05), 115 FS (12) 4 Stroke |
| 99034 - 40 (02-12 ), 50 (03-14), 50 ELO (05), 50 ELHPTO (05), 50 ELPTO (05), 55 (03-11), 60 3 Cyl (99), 60 (03-04) 2 Stroke |
| 99034 - 40 (02-16), 40 Big Foot (02-03), 50 (03-04), 50 (15), 50 ELHPT (05), 50 ELPT (05), 60 (01,03,12), 60 4 Cyl (10), 60 FS (14/15) 4 Stroke |
| 99006 - 75 FS (15), 90 FS (14/15), 115 FS (15), 135 (90, 03-05), 140 (03-05), 150 (87-88,90,99,00,03-05), 175 (96,03-06), 200 (93-94,01-05) 2 Stroke |
| 99006 - 150 XR4 (90), 150 XRI (93), 150 XR6 (97,03-05), 150 Optimax (11,15), 175 Optimax (15) 2 Stroke |
| 99021 - 200 (99,00,03-05), 225 (96,98,00,03-05), 250 (97,02-04,06), 2 Stroke |
| 99021 - 200 Optimax (12,15), 225 Optimax (06,07,15), 250 EFI (05), 250 Optimax (08,10,15), 250 Pro XS (11,12) 2 Stroke |
| 99021 - 150 (11,13-14) 4 Stroke |
| 99021 - 90 FS (15), 115 FS (15), 150 Verado (10), 150 FS (12,15), 175 Verado (15), 200 Verado (05,14/15), 225 Verado (05,15), 250 Verado (05-06,15), 275 Verado (05), 300 Verado (07,15) 4 Stroke |
| 99015 - 225 (03-05) 4 Stroke |
| Old Mercury |
| 99016 - 40-50-60-65-70 (80-85) 2 Stroke |
| 99017 - 40-50-60 (86-02) 2 Stroke |
| 99034 - 40-50-60 (03-11) 2 & 4 Stroke |
| 99007 - 50-60 Big Foot (03-11), 70 Thru 125 incl Optimax (83-11) 2 & 4 Stroke |
| 99006 - 135-150-175-200 (78-05) 2 & 4 Stroke |
| 99006 - 225 (78-95) 2 Stroke |
| 99006 - 135-150-175-200 Optimax (05-11) 2 Stroke |
| 99021 - 200 EDI (96-05) 2 Stroke |
| 99021 - 150 Thru 300 & Verado (05-11) 4 Stroke |
| Mercruiser |
| 99001 - Pre-Alpha #1 Drives (73-84) |
| 99002 - Alpha 1 Drives (85-90) |
| 99003 - Alpha 1 Generation 2 Drives (91-15) |
| 99005 - Bravo 1 & 3 Drives (90-15) |
| 99004 - Bravo1 & TRS Drives (89 & 98 Only) |
| 99005A - Bravo 1 & 3 Druves (90-15) |
| Nissan |
| 99007 - 70-90-115-120-140 (93-10) 2 Stroke |
| OMC |
| 99010 - Cobra 4 Cylinder Drives (86-94) |
| 99008 - Cobra V6 & V8 Cylinder Drives (86-94) |
| Suzuki |
| 99017 - 40-50-60-70 (03-11) DF 4 Stroke |
| 99026 - 90-115-140 (98-11) DF 4 Stroke |
| 99015 - 250SS & 300 (06-11) DF 4 Stroke |
| 99015A - 150-175-200-225 (86-02) DF 2 Stroke |
| 99015A - 150-175-200-225 (03-11) DF 4 Stroke |
| 99008 - 300 HP (09-11) DF 4 Stroke |
| Volvo Stern |
| 99022 - SX Drives Single Prop (95-06) |
| 99019 - DP Drives with Dual Prop (96-06) |
| 99020 - SX & DP Drives (07-15) |
| Yamaha |
| 99036 - 25 (98-05,09-15) 4 Stroke |
| 99017 - 40 (84-97), 48 (95-00), 50 (84-94), 55 (89-95), 60 (95-00), 75 (94-00), 85 (89-96) 2 Stroke |
| 99033 - 40 (95-05), 50 (95-09) 2 Stroke |
| 99033 - 40 (99-14), 50 (95-14), 60 (02-14) 4 Stroke |
| 99032 - 60 (94-05), 70 (95-09), 75 (96-99), 80 (97), 90 (94-09) 2 Stroke |
| 99032 - 50 (96-14), 60 (03-14), 70 (10-14), 75 (03-14), 80 (99-03), 90 (03-15), 100 (99-03) 4 Stroke |
| 99016 - 60 (91-93), 70 (84-94), 90 (84-93) 2 Stroke |
| 99015 - 115 (84-00), 130 (88-00), 150 (84-14), 175 (84-12), 200 (84-12), 220 (84-86), 225 (87-97) 2 Stroke |
| 99015 - 150 (06-14), 175 (14), 200 (12-14), 300 (07-09), 350 (07-14) 4 Stroke |
| 99029 - 115 (01-02,04-09), 130 (01-04) 2 Stroke |
| 99029 - 115 (00-15) 4 Stroke |
| 99030 - 200 (98-05), 225 (94-04), 250 (90-05), 300 (04-06) 2 Stroke |
| 99030 - 200 (02-14), 225 (02-14), 250 (05-14), 300 (10-14) 4 Stroke |
