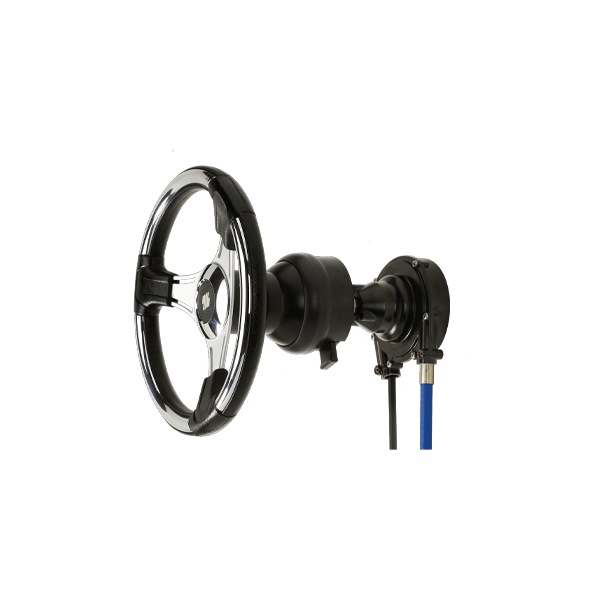

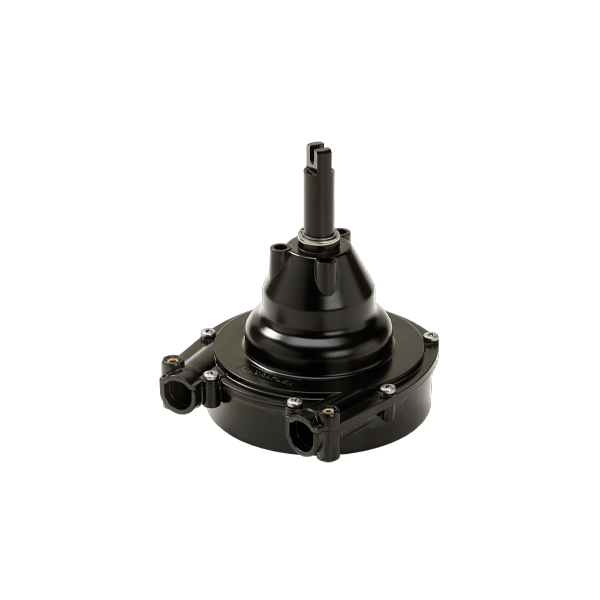

UFlex T103 Zero Torque Tilt Rotary Mount Helm
UFlex T103 ZT is a high-performance rotary helm with a zero-torque system and a 48 degree tilt mechanism featuring five locking positions.
Its planetary-gear design ensures smooth steering, fast connection, and easy installation, with approximately 4.2 turns lock-to-lock
Features
- M90 Mach cable for superior flexibility, performance, and durability
- 48 degree tilt range with five locking positions
- Quick connect, easy install patented end fitting
- Tilt device prevents under-dash movement
- Standard 3/4" tapered stainless-steel shaft
- Corrosion-resistant materials
- Exceeds EN 28848 and ABYC P17 safety standards
Specification
- M90 steering cable stroke 228 mm (9")
- Lock-to-lock steering wheel turns approx. 4,2
- Max. steering wheel diameter 406 mm (16")
- Suggested steering cable bend radius 200 mm (7.87")
- Min. steering cable bend radius 150mm (5.9")
