Raymarine Alpha 9 Performance Display - MW

Name: Raymarine Alpha 9 Performance Display - MW
Brand: Raymarine (MW)
SKU: XRAY-E70650
Availability: OutOfStock

SKU XRAY-E70650 MFR Raymarine (MW)

Back Order

Toronto, ON Vancouver, BC NJ, Warehouse FL, Warehouse

On Back Order

This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.

Purchasing Code Required

To order this product online, please contact us with the quantity you need and your ZIP / postal code to receive your purchasing code. Some locations are restricted at this time.

Request Purchasing Code

Already have a code? Enter it below to unlock pricing and purchasing.

Ask a question about this product

Back to: Electrical

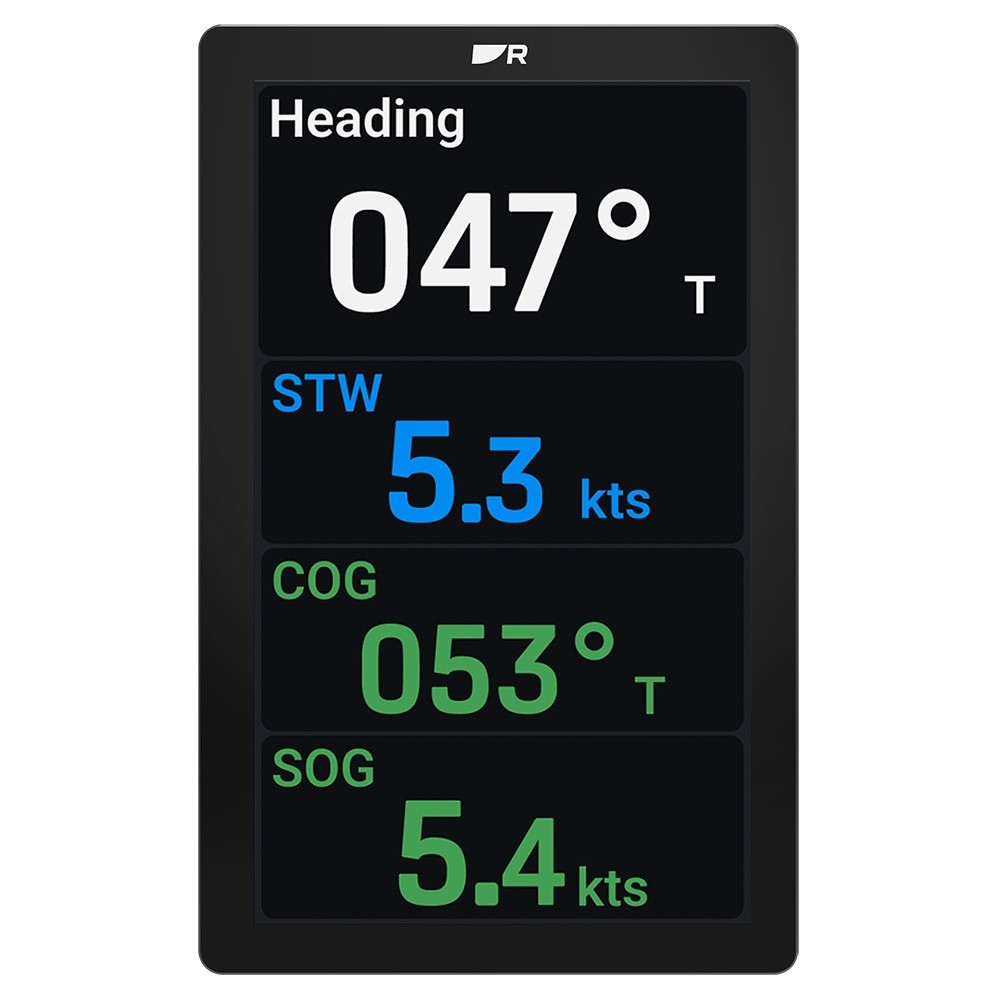

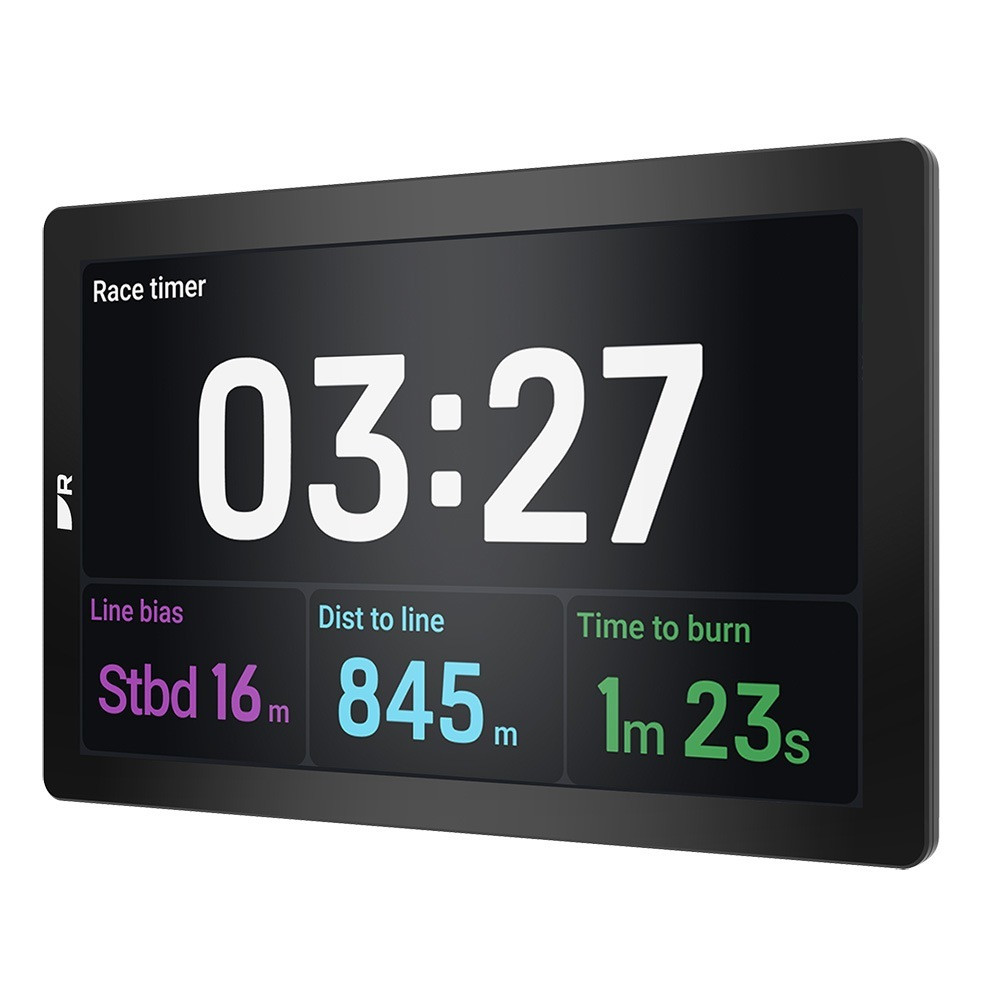

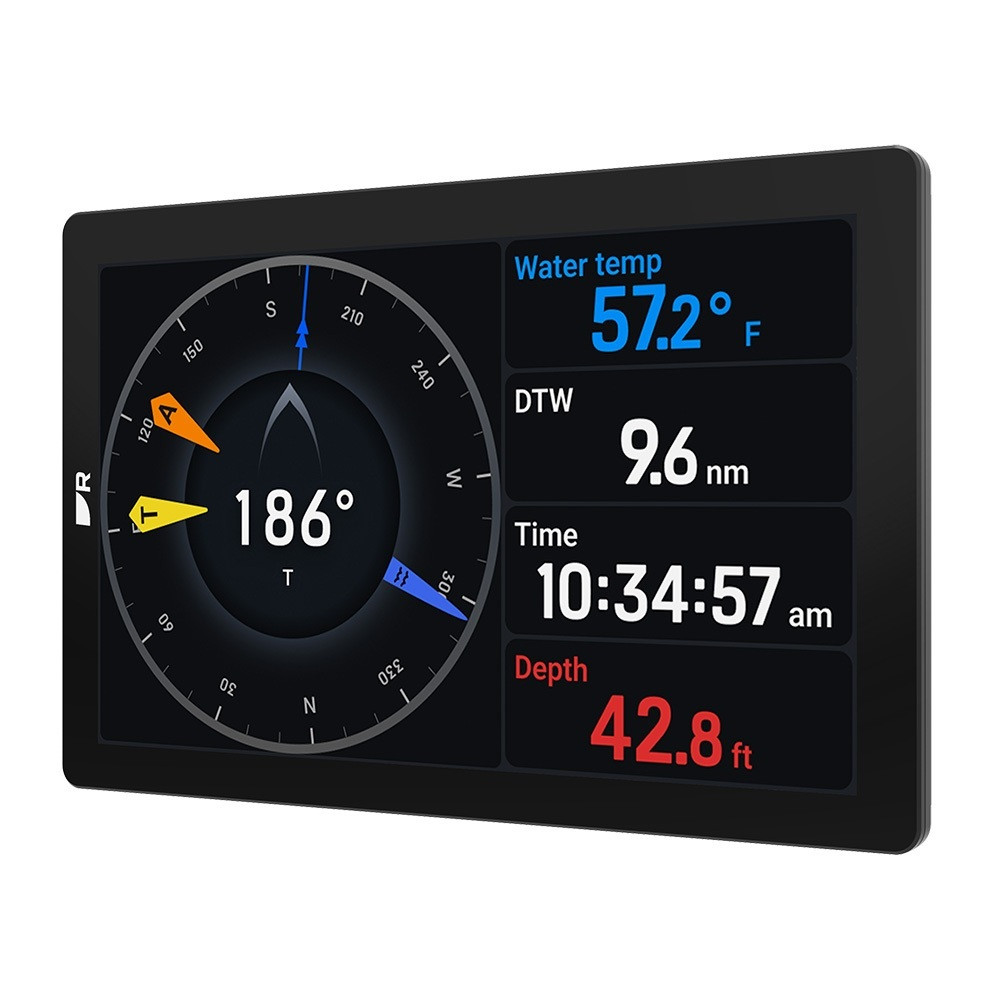

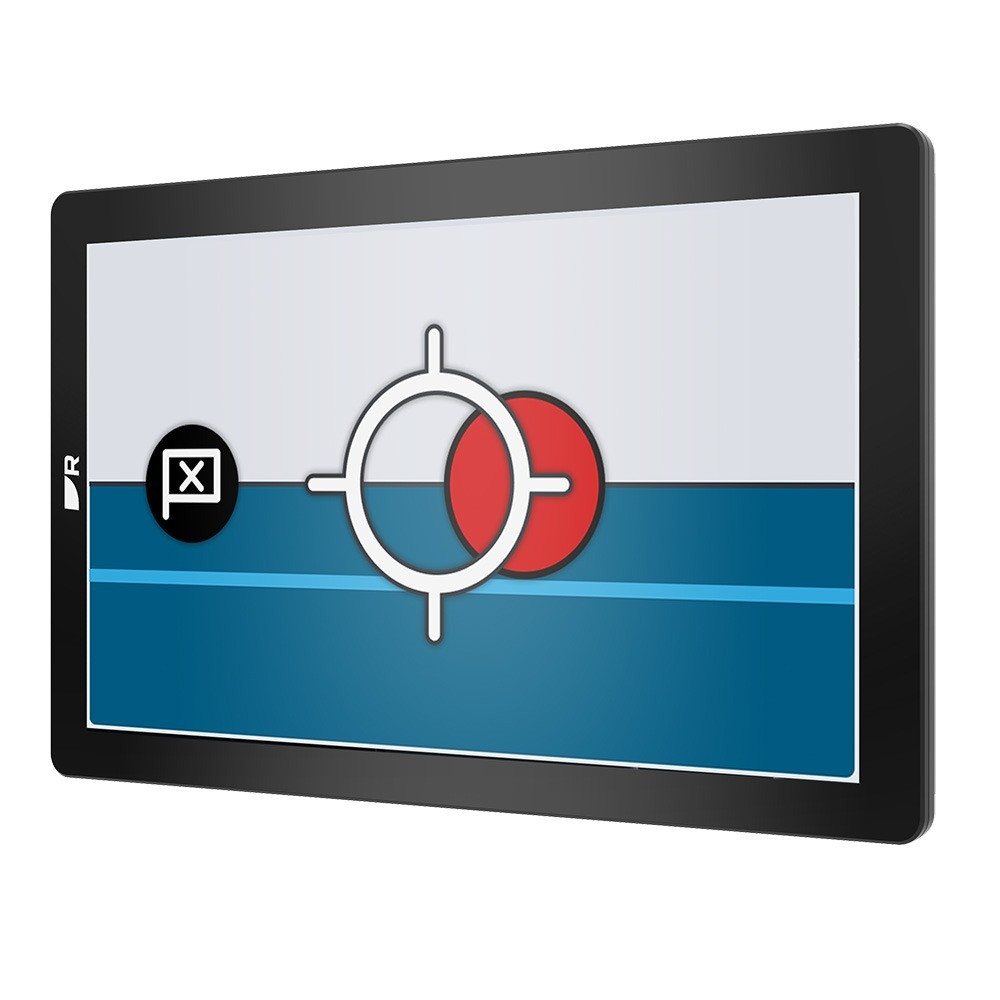

Alpha 9 Performance Display

Alpha Performance Displays are the most versatile marine data displays. High-bright touchscreen instruments with wide view angles offer excellent visibility from anywhere onboard. Alpha's extensive data dashboard options and widgets make critical sailing, navigation, and engine data easy to interpret at a glance.

Alpha & Axiom Systems

Alpha Performance Displays are companion instruments for Raymarine Axiom chartplotters. A simple RayNet Ethernet cable between Axiom and the Alpha display gives Alpha access to Axiom's connected transducers and NMEA2000/SeaTalk NG devices.

Once paired with an Axiom network, users can customize and configure your Alpha display into a powerful performance sailing, navigation, and engine data instrument.

High Visibility

Polarized sunglass-friendly displays with extra wide viewing angles, viewable on the mast or remote location

Rugged Build

Tested to the extreme and built with our exclusive HydroToughTM nano-coating that repels water and oils for reliable touchscreen control

Fully Scaleable

A single power and data cable for fewer cables running through the deck and mast. Support for daisy-chaining up to 4 Alpha displays

Tactical Awareness

Intuitively designed graphical instrument displays, aimed at enhancing tactical awareness and facilitating better decision-making on the water.

SailPoint™ Target

SailPoint™ mode provides you with a visual reference of the target wind angle, so you achieve your maximum VMG upwind or downwind

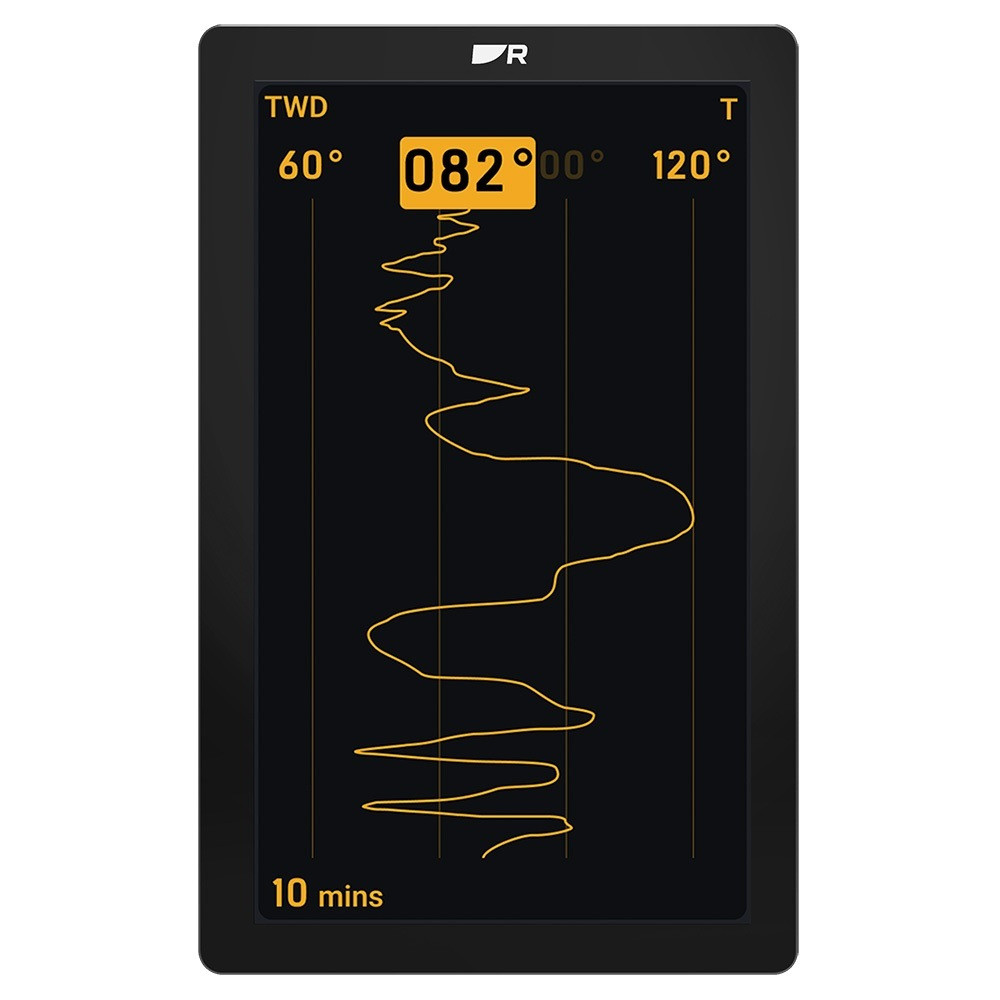

Dynamic Wind

The dynamic wind performance display provides automatic zoom to the most critical part of the instrument display based on wind direction.

Other Features:

9 in. bright, high contrast sailing instrument display
Power cables sold separately

What’s in the Box:

Alpha 9 performance display - 2 x mounting brackets
Suncover
Waterproof gasket
Documentation pack
4 x Threaded studs, M4 x 40 mm
4 x Thumb nuts

Physical Specifications:

Width: 148.9 mm (5.86 in.)
Height: 235.9 mm (9.29 in.)
Depth: 34 mm (1.34 in.)
Post Separation Distance: 5.71 mm (0.22 in)
Weight: 1.18 kg (2.60 lbs)

Power Specifications:

Nominal Supply Voltage: 12 V / 24 V dc
Operating Voltage Range: 10.8 V to 32 V dc
Current: 1.02 A (nominal) @ 12 V dc / 0.52 A (nominal) @ 24 V dc
Power Consumption: 12 W (maximum)
Inline Fuse Rating: 8 A
Thermal Breaker Rating: 8 A

Network Specifications:

Axiom: The Alpha Performance Displays require an Axiom Chartplotter in order to operate.
Data Connections: 1 x Daisy-chain connector & 1 x Power / RayNet Ethernet connector

Environmental Specifications:
