Shakespeare 393 23' Single Side Band Antenna - MW
Express
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.
In Stock
Purchasing Code Required
To order this product online, please contact us with the quantity you need
and your ZIP / postal code to receive your purchasing code.
Some locations are restricted at this time.
Already have a code? Enter it below to unlock pricing and purchasing.

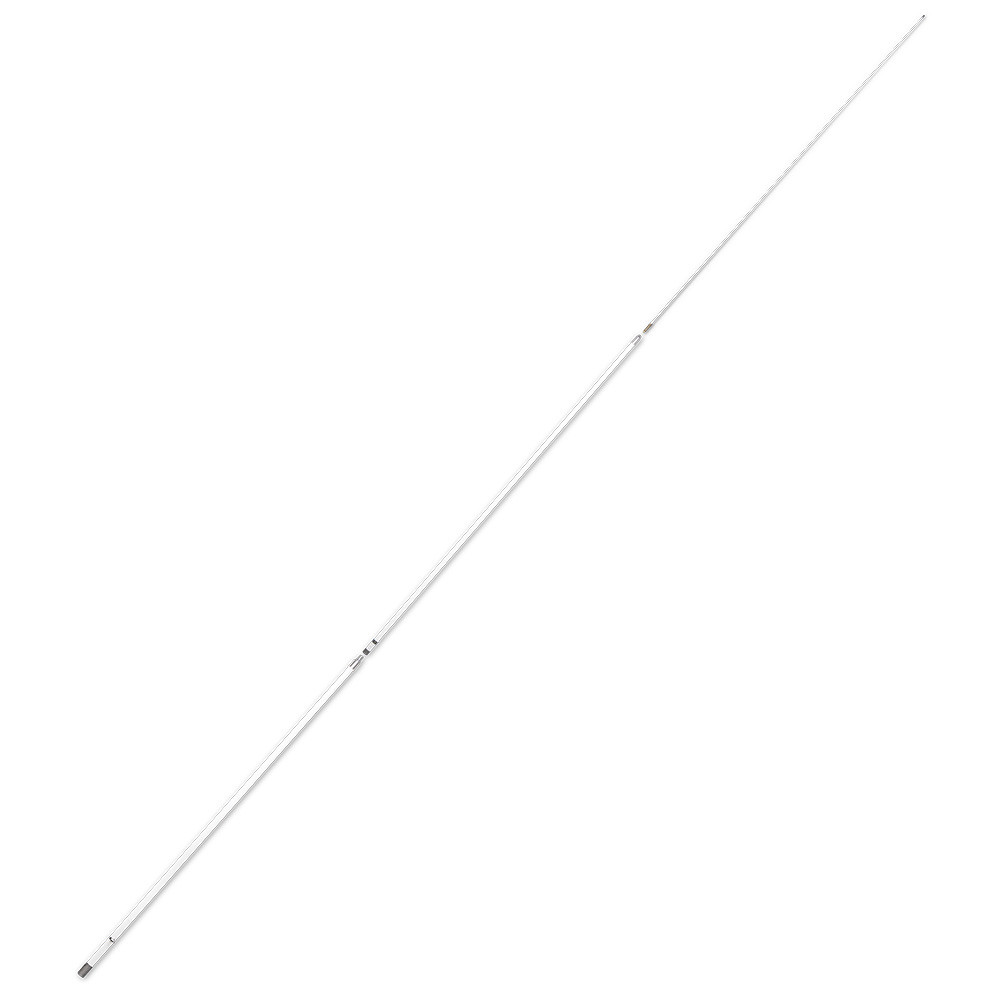

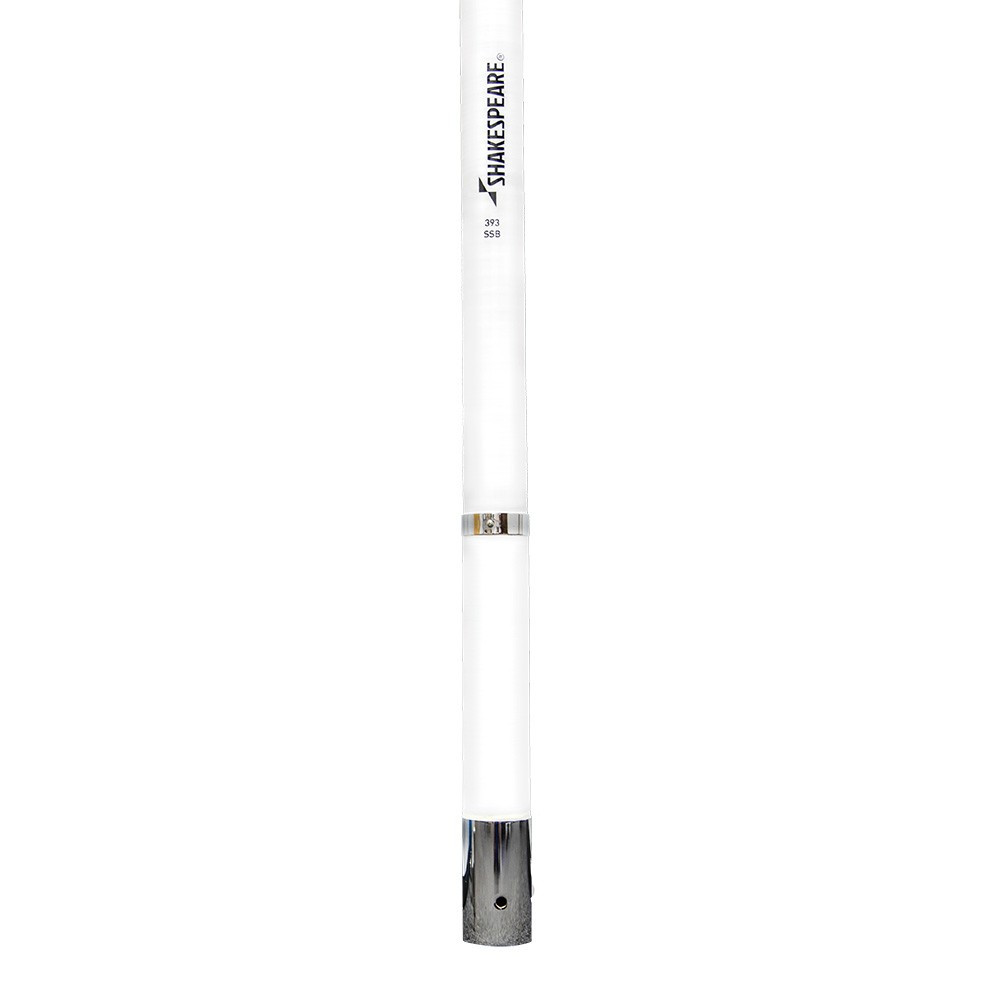

Shakespeare Style 393 SSB
23' LENGTH
WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)
The Style 393 antenna is electrically the same as the industry standard Style 390, For use in calm to moderate seas.

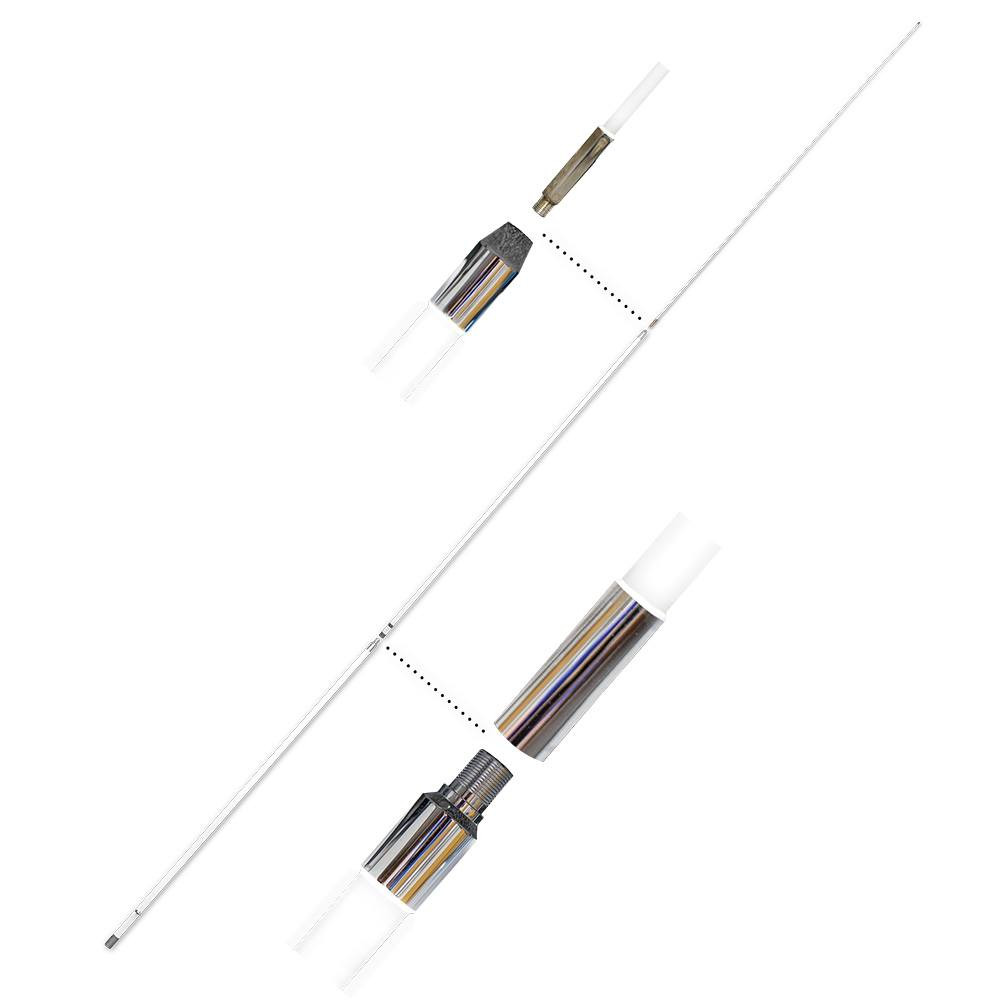

- Chrome-plated brass ferrules, bottom ferrule has 1"-14 thread
- Side feed termination band
- Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting
- Three sections: Base 92"; Center 92"; Tip 92"
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | 2-30 MHz HF band with tuner |
| Bandwidth: | Resonant frequency 10.8 MHz |
| SWR: | N/A |
| Impedance: | (Ohms): N/A |
| Gain: | N/A |
| Max Input (Watts): | 1000 |
| DC Ground: | N/A |
| Termination: | Side Termination |
| Height (feet): | 23 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
Specifications:
- Antenna Band: SSB
- Color: White
- Construction: Fiberglass
- Ferrule Type: Chrome Plated
- Length (Inches): 144"
- Box Dimensions: 3"H x 3"W x 96"L WT: 5.2 lbs
- UPC: 719441600075
Quick Guide (pdf)
