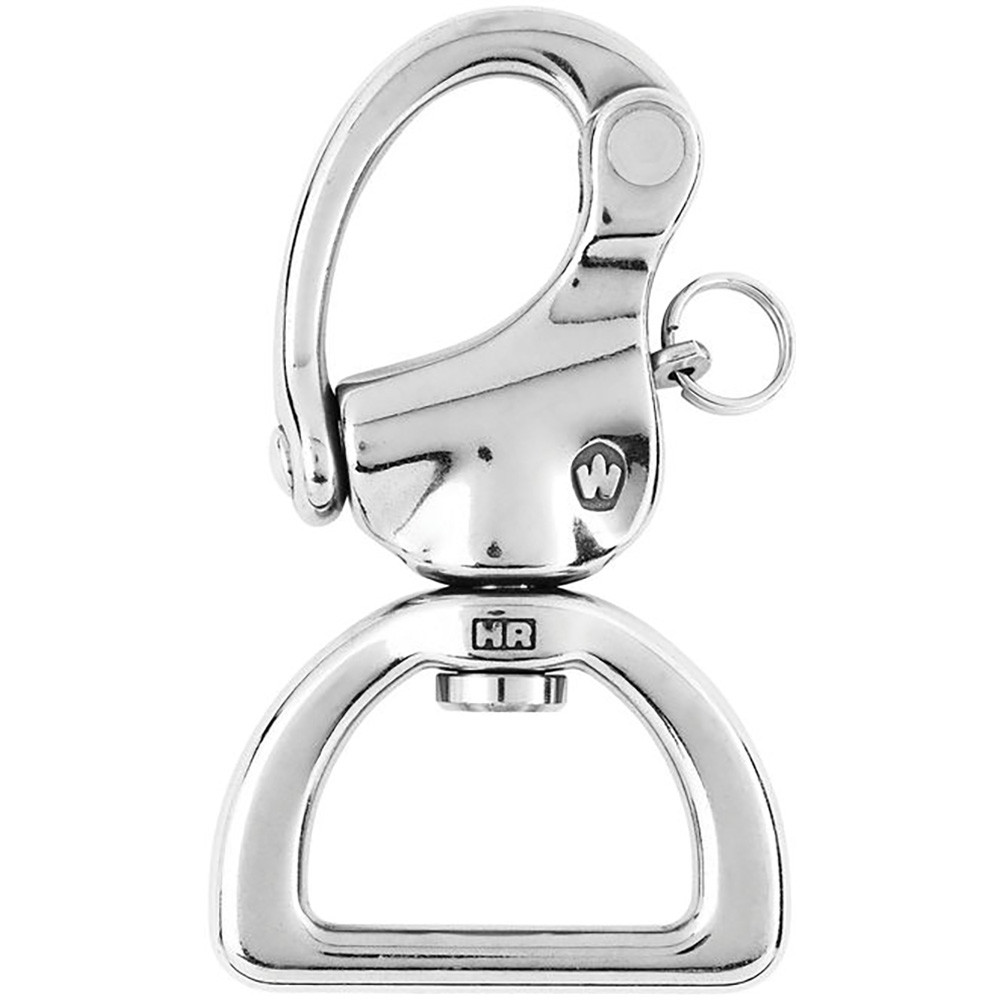

HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16"
Features:
- HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel.
- Its flat design allows attaching a webbing
- Free rotation of the snap shackle thanks to the swivel eye
- The plunger pin is set captive into the hook and cannot become detached
- Excellent working and breaking loads
- Easy to open by pulling the plunger pin (possible to attach a lanyard)
Applications:
- Snap shackle applications
- Applications requiring a free rotation of the snap shackle (for a better sail orientation)
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 2820 / (kg) 1280
- Breaking load: (lb) 8480 / (kg) 3850

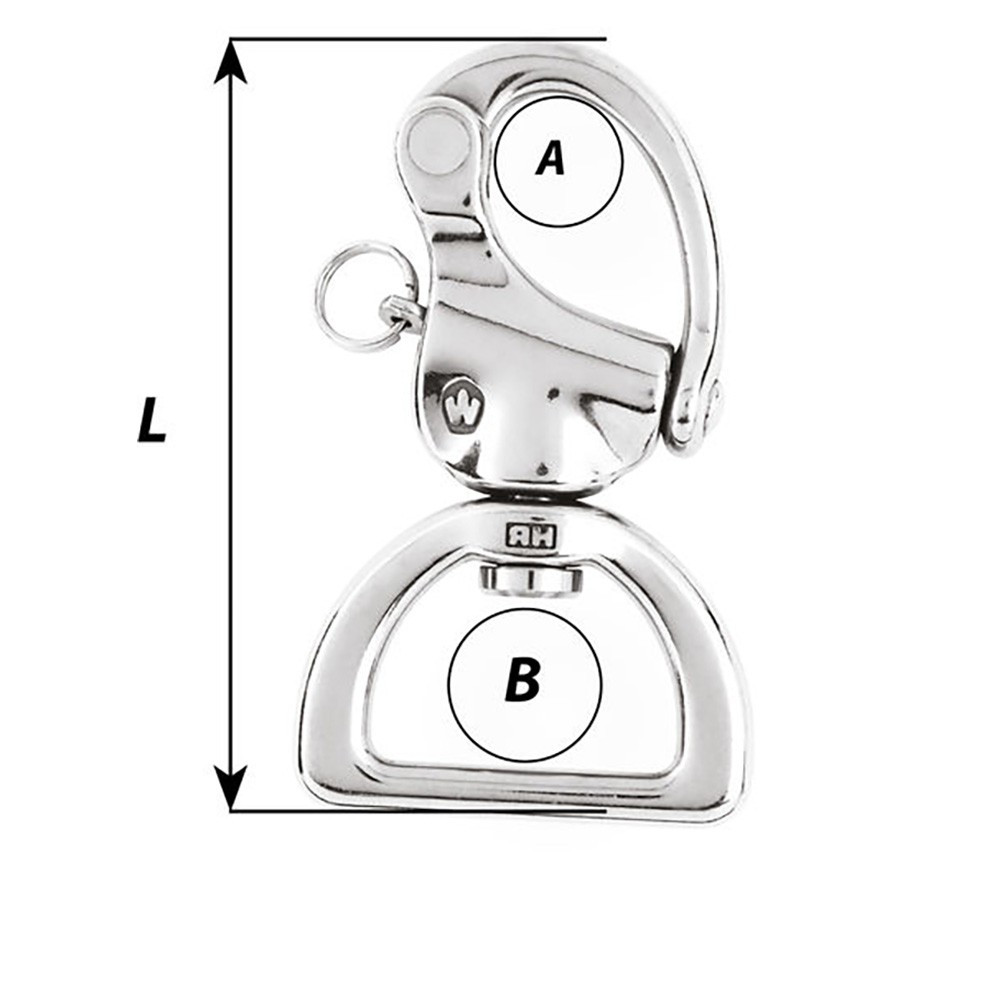

Dimensions:
- A: (inch) 53/64" / (mm) 21
- B: (inch) 1 37/64" / (mm) 40
- Length: (inch) 3 15/16" / (mm) 100
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
