Bennett Complete 18" x 12" Hydraulic Trim Tab Kit w/Euro-Style Rocker Trim Switch - MW

Bennett 1812E Complete 18" x 12" Hydraulic Trim Tab Kit w/Euro-Style Rocker Trim Switch

Bennett Hydraulic Trim Tabs are ideal for boats that stay in the water and require high speed action under extreme marine conditions. These hydraulic trim tabs help your boat get on the plane faster and on the plane at intermediate speeds. When your boat accelerates, your bow rises, creating hull drag and reducing fuel efficiency. Bennett trim tabs get your boat on plane quickly, which gets rid of hull drag and allows your boat to use less fuel. Trim tabs can also be used to correct uneven loads on your boat.

Every Bennett trim tab system carries with it an accumulation of nearly 40 years of research, development, and testing and is designed to provide years of dependable service. Every trim tab is sheared and bent, not welded. Welding alters the properties of stainless steel which invites corrosion. With Bennett's high quality trim tabs, maintenance is minimal, resulting in long-term value. All Bennett Trim Tabs are easy to install and service.

This Trim Tab Kit includes two Bennett Hydraulic Actuators. These actuators are strong, flexible nylon/fiberglass hydraulic cylinders that push the tabs into position. All hydraulic lines and wires are internal, concealed by the upper hinge, so they're not exposed to harsh environments.

The Bennett Classic Hydraulic Trim Tab Kits are recommended for the following boat types: flats boats, center consoles, trailered boats, cuddy cabins, dual consoles, deck boats, bowriders, bass boats, walkarounds, runabouts & ribs, and cruisers.

Features:

• Trim Tabs are 18" Wide by 12" Deep
• Decrease the time in "Transition mode" between displacement and planning.
• Reduce fuel consumption, laboring of engines, hull stress, wake and pounding.
• Eliminate squatting, listing and porpoising.
• Increase speed and improve visibility and handling.
• Correct uneven loads

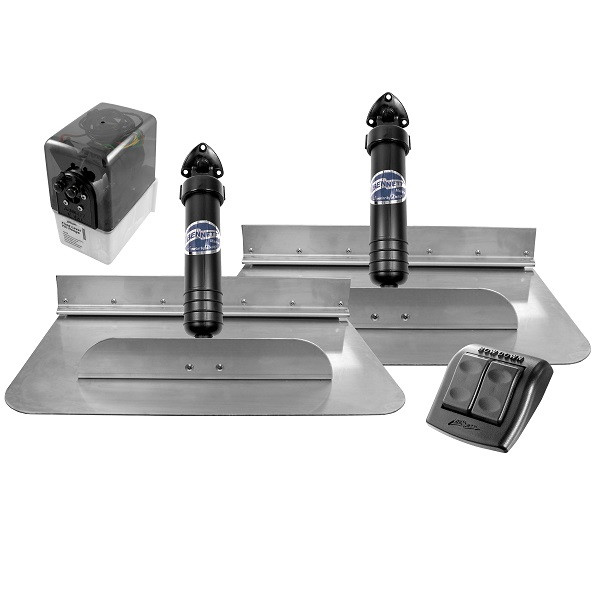

Standard Trim Tab Package Contains:

• (2) Stainless Steel Trim Tabs
• (2) A1101A Hydraulic Trim Tab Actuators
• (1) V351HPU1 Hydraulic Power Unit w/ Wiring
• (1) Euro-Style Rocker Switch Control
• (1) Hardware Bag
• (1) 20' Hydraulic Tubing
• Installation instructions

Manufacturer Limited Lifetime Warranty

Click here for Bennett Complete Hydraulic Trim Tab Kit Installation Instructions

Frequently Asked Questions

What is the Bennett 1812E Hydraulic Trim Tab Kit designed to do?

The Bennett 1812E Hydraulic Trim Tab Kit is designed to help improve boat performance, handling, and ride quality in changing load, speed, and water conditions. It helps boats get on plane faster, reduce hull drag, improve fuel efficiency, and correct listing, squatting, and porpoising.

What types of boats is the Bennett 1812E recommended for?

The Bennett 1812E is well suited for flats boats, center consoles, trailered boats, cuddy cabins, dual consoles, deck boats, bowriders, bass boats, walkarounds, runabouts, ribs, and cruisers.

What is included with the Bennett 1812E trim tab kit?

This kit includes two stainless steel trim tabs, two A1101A hydraulic trim tab actuators, one V351HPU1 hydraulic power unit with wiring, one Euro-style rocker switch control, one hardware bag, 20’ of hydraulic tubing, and installation instructions.

What size are the trim tabs in the Bennett 1812E kit?

The trim tabs in this kit measure 18" wide by 12" deep.

How are the hydraulic lines and wires protected in this trim tab system?

The hydraulic lines and wires are routed internally and concealed by the upper hinge so they are not exposed to harsh marine environments. This design helps improve protection and long-term durability.
