Garmin Signal VHF 400 Marine VHF Radio w/Built-In AIS Transponder - MW

Name: Garmin Signal VHF 400 Marine VHF Radio w/Built-In AIS Transponder - MW
Brand: Garmin (MW)
SKU: XGAR-010-02951-00
Availability: InStock

SKU XGAR-010-02951-00 MFR Garmin (MW)

Express

Toronto, ON Vancouver, BC NJ, Warehouse FL, Warehouse

"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.

In Stock

Purchasing Code Required

To order this product online, please contact us with the quantity you need and your ZIP / postal code to receive your purchasing code. Some locations are restricted at this time.

Request Purchasing Code

Already have a code? Enter it below to unlock pricing and purchasing.

Ask a question about this product

Back to: Marine Warehouse

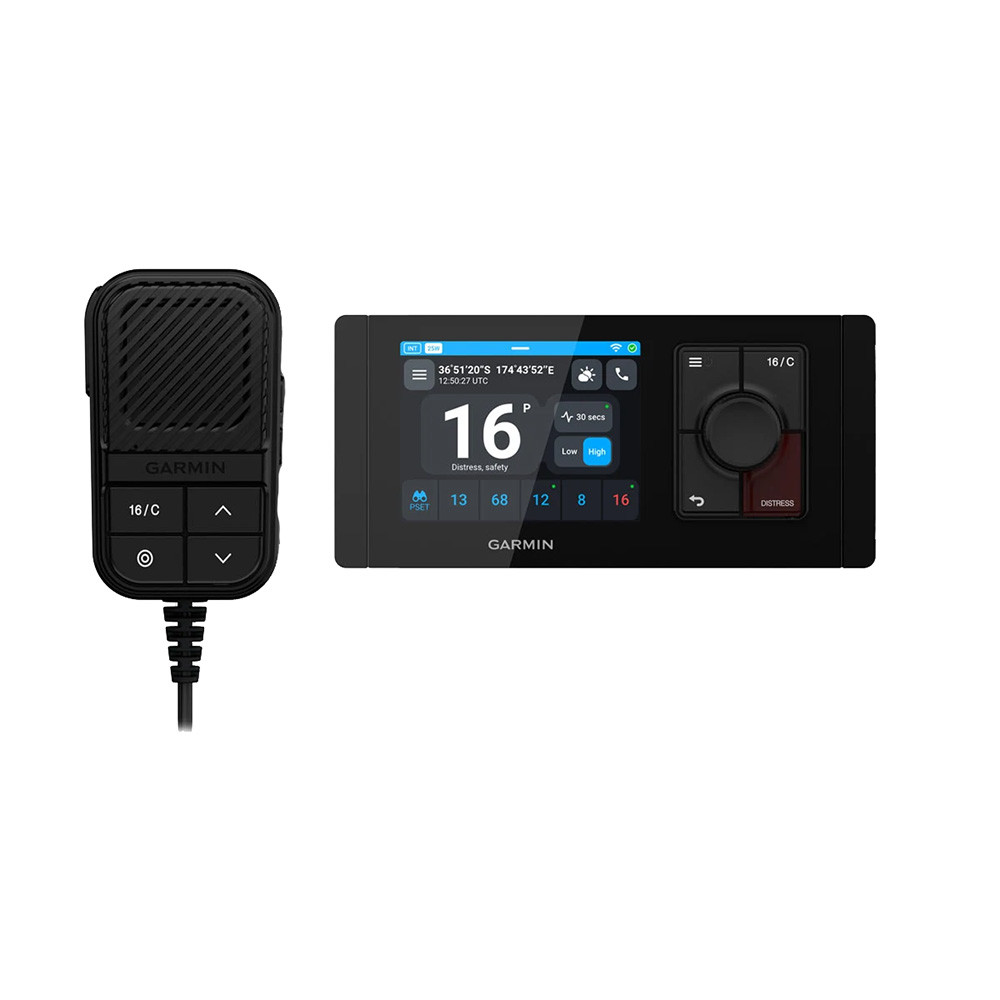

Signal™ VHF 400 Marine VHF Radio with Built-In AIS Transponder

BUILT-IN AIS

Stay aware of the water with built-in AIS transmit and receive capabilities. This feature shows you range, course, speed, and the crossing situation of other AIS-equipped vessels around you to help you navigate.

SLEEK DESIGN

The compact and modern design features edge-to-edge glass and takes up minimal space at the helm.

CLEAR AND SIMPLE COMMUNICATION

Eliminate unnecessary radio noise with automated squelch. If you miss a radio message, you can replay it with VHF audio playback. When you need to maintain watch on multiple channels, advanced watch modes make it easy.

STAY CONNECTED

Quickly transmit a distress signal to nearby vessels with the distress button, which uses Class D DSC to automatically send crucial information that can help emergency responders. You can also use the intuitive DSC features to quickly initiate contact with other AIS-equipped vessels; simply select the vessel on the AIS plotter view, and call them with a tap of a button.

EASY TO UPDATE

Configure the radio, program the MMSI number, and get over-the-air software updates with the ActiveCaptain® smartphone app via built-in Wi-Fi® connectivity.

INSTALLATION IS A BREEZE

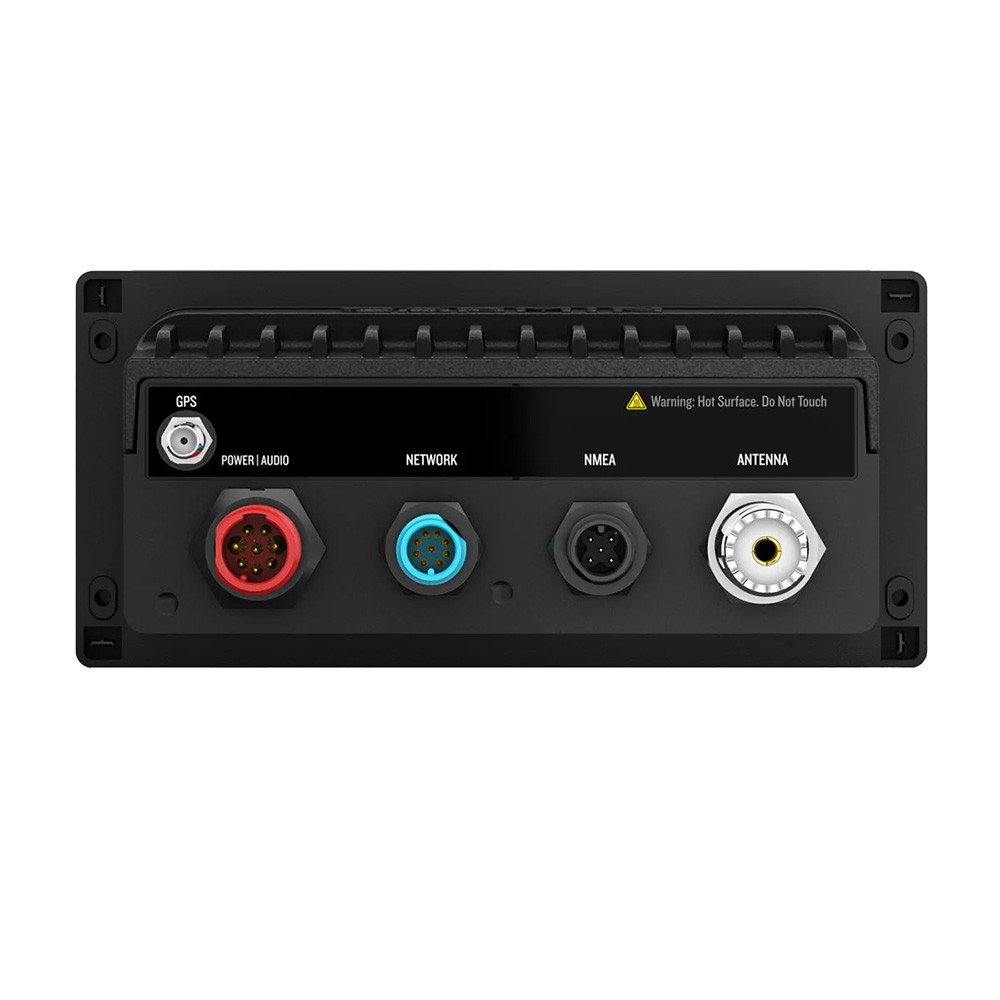

Installation is simple since VHF/DSC/AIS features only require a single VHF antenna, and the GPS antenna/receiver is built into the unit. Chartplotter integration is seamless via the NMEA 2000® network and Garmin BlueNet™ Network.

ADAPTIVE NOISE CANCELLATION

Advanced noise cancellation uses machine learning algorithms to eliminate wind, wave, and engine noise for our cleanest audio experience.

AUTOMATED SQUELCH

Radio activity is constantly monitored to eliminate unnecessary noise and static. You also have the option for manual fine-tuning.

ADVANCED WATCH MODES

All VHF channels are continuously scanned for activity in the background, allowing you to maintain watch over channel 16 and all your favorite preset channels simultaneously.

VHF AUDIO PLAYBACK

Didn’t catch that message? Replay it with VHF audio playback, and listen to audio messages for up to 3 minutes on any channel.

GENERAL SPECIFICATIONS

Unit size: Head Unit: 75 x 160 x 104 mm (3.0" x 6.3" x 4.1")
Fist Mic: 100 x 60 x 31 mm (3.9" x 2.4" x 1.2")
Operating voltage: 9.6 - 32 VDC
Water rating: IPX7
Display Type: IPS LCD, capacitive touch
Display Size: 3.5" (89 mm)
Display resolution: 640 x 480 pixels
Operating temperature: –20° to 55° C (–4° to 131° F)
Inland waterways (ATIS)
Backlight: 1,000 nits

VHF RADIO SPECIFICATIONS

Region: All U.S., Canadian, and International marine channels; NOAA weather channels
VHF frequency range Tx: 156.025–162.025 MHz
VHF frequency range Rx: 156.025–163.275 MHz
VHF transmit power (max): 25 W, 1 W (high, low)
Transmitter frequency tolerance: +/0.3 kHz
Adjacent channel power: More than 70 dB
Spurious emissions: Less than –80 dBc (at 25 W)
Sensitivity (12 dB SINAD): -118 dBm (-11 dBu/0.28 uV)
Adjacent channel selectivity: 80 dB
Spurious response: More than 75 dB
VHF intermodulation" More than 75 dB
Max antenna gain: 6 dBi
Remote Station Support: RM 100 (x5)

DSC
