15170-001

Lenco LED Integrated Trim Tab Switch Kit - Single - MW

SKU LEN-15170-001 MPN 15170-001 UPC 874847007573

Express

Toronto, ON Vancouver, BC NJ, Warehouse FL, Warehouse

"Express" items are automated and typically shipped out the next available business day and delivered within 4 days.

In Stock

Purchasing Code Required

To order this product online, please contact us with the quantity you need and your ZIP / postal code to receive your purchasing code. Some locations are restricted at this time.

Request Purchasing Code

Already have a code? Enter it below to unlock pricing and purchasing.

Ask a question about this product

Back to: Marine Warehouse

Lenco 15170-001 LED Integrated Trim Tab Switch Kit - Single

Complete your Lenco trim tab system with the latest, maintenance-free (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel.LED indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions.

12&24-Volt for Single Actuator Systems

Key Features

Simple, quick, Plug & Play installation
Instant response
Built-in retractor
Low profile design

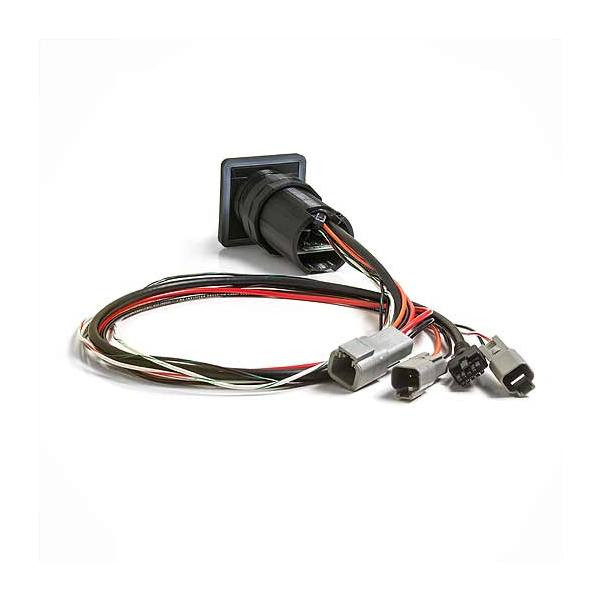

Self-contained key pad with waterproof Plug & Play Deutsch connectors
Wiring harness length 30" (76.2 cm) from the back of the switch bezel
36" power pigtail

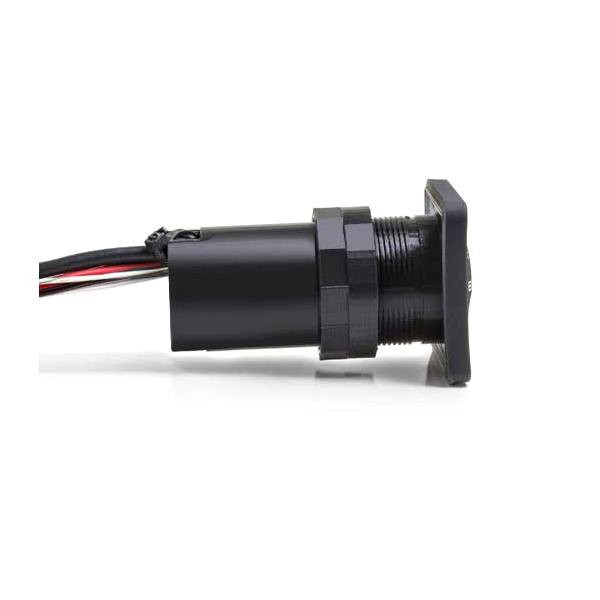

2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75"
4.08" clearance required from the back of the key pad's mounting location
2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times
Photo Eye for optimum viewing in all light conditions
Backlit key pad for optimum viewing at night
Self-Check feature

3 Year Warranty

Frequently Asked Questions

What does the Lenco LED Integrated Trim Tab Switch Kit do?

The Lenco LED Integrated Trim Tab Switch Kit provides control for single actuator trim tab systems while also displaying trim tab position through built-in LED indicators. Its all-in-one design integrates control box functionality directly into the keypad bezel.

What systems is this trim tab switch designed for?

This switch is designed for 12-volt and 24-volt single actuator systems. Review your current trim tab setup to confirm compatibility before ordering.

What features help improve visibility while using this switch?

This switch features two high-intensity LED position indicators, a backlit keypad for night viewing, and a photo eye that adjusts indicator intensity based on ambient light for easier visibility in changing conditions.

What makes the Lenco LED Integrated Trim Tab Switch Kit easy to install?

The Lenco switch uses a self-contained low-profile keypad design with waterproof plug-and-play Deutsch connectors to simplify installation. It also includes a built-in retractor and integrated control box functionality within the switch bezel.

What are the key dimensions and wiring specifications for this trim tab switch?

This switch has an overall keypad size of 2.75" x 2.75", a 2-1/16" hole cut-out size, 4.08" mounting clearance, a 30" wiring harness measured from the back of the switch bezel, and a 36" power pigtail.
