Speed Release for Dock Ladder - MW
Back Order
Toronto, ON
Vancouver, BC
NJ, Warehouse
FL, Warehouse
On Back Order
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
Purchasing Code Required
To order this product online, please contact us with the quantity you need
and your ZIP / postal code to receive your purchasing code.
Some locations are restricted at this time.
Already have a code? Enter it below to unlock pricing and purchasing.
Used with Tie Down's Dock Ladder:
- 60" 4 Step: T-D-27274
- 71" 5 Step: T-D-27275
TOOLS REQUIRED Flathead screwdriver, 7/16" wrench, hand or power drill, and a 1/4" drill bit. ASSEMBLY INSTRUCTIONS

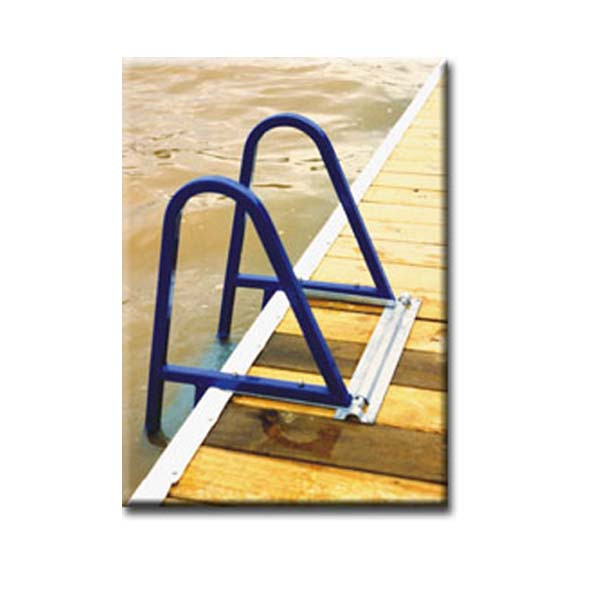

- Attach the Speed Release side plates under the bottom of the ladder braces as shown in the picture, using the 1/4" x 1-1/2" Phillips flat head screws and acorn nuts. Acorn nuts are used on the top. Make sure that the side flanges are located to the outside edge of the ladder brace. Do not tighten at this time. Using the Speed Release base as a guide, make sure the tabs are centered in the base openings. Now tighen the acorn nuts.
- Before attaching the ladder to the dock, check for obstructions under the dock where the bolt holes will be drilled. Should you have a floating dock, make sure the ladder will not be damaged in fluctuating water levels. The ladder should be flush against the top side of the dock with the Speed Release base attached to the ladder. To mark the holes, use the base plate as a template. Drill four holes using your 1/4" drill bit. Attach ladder to dock with the four 1/4" x 4" stove bolts furnished in the Dock Ladder hardware bag.
IMPORTANT: LADDER WILL FALL INTO WATER IF NOT BOLTED TO THE DOCK. BE CAREFUL WHEN USING LADDER TO MARK HOLES. SET LADDER COMPLETELY ON TOP OF DOCK AFTER USING TO MARK THE HOLES TO BE DRILLED.
