Bob's Machine Versa Jac Manual Jack Plate - MW
Bob's Machine Versa Jac Manual Jack Plate

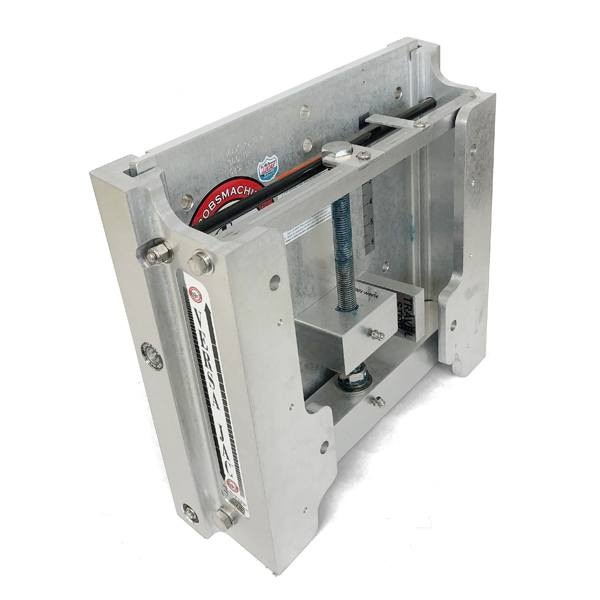

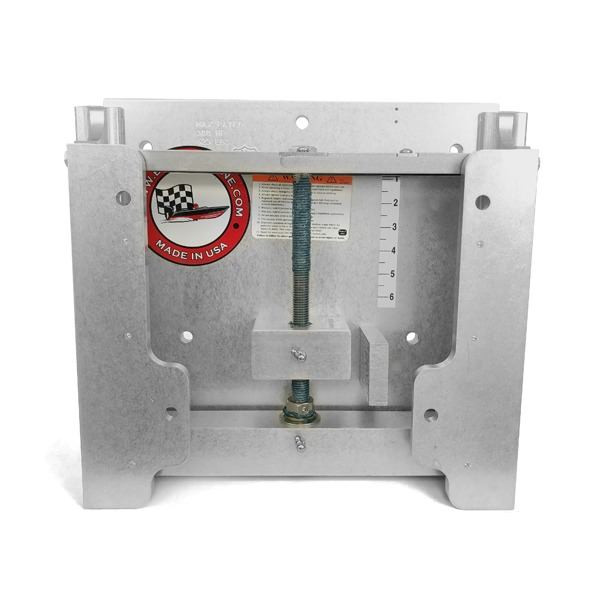

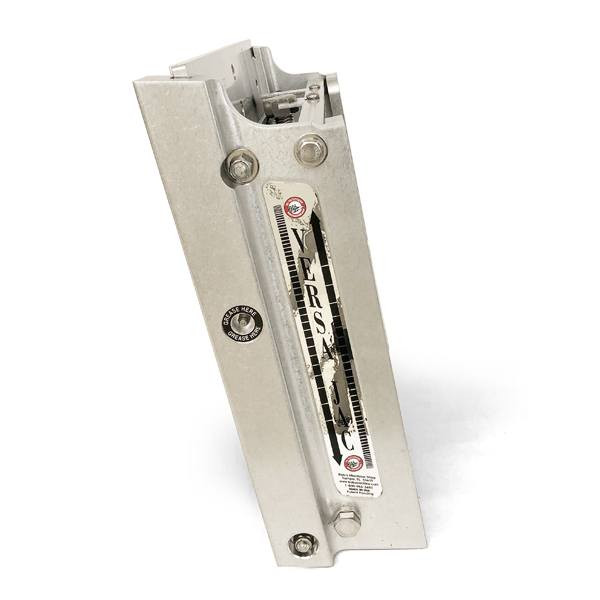

Bob's Machine Versa Jac Manual Jack Plates are high-quality manual jack plates that provide boaters with the option to upgrade to a Hydraulic at a later date. Made of high-quality, aircraft-grade aluminum, the Versa Jac jack plate has the same sharp look as Bob's popular line of hydraulic jacks while providing optimal durability. These jack plates have a one piece design, unlike competitors that require setback spacers to achieve the proper setback. Versa Jacs are available in 4", 6", and 10" setbacks, and are rated for engines up to 300 HP. While the boat is in the water, the Versa Jac can easily be adjusted for optimum results.
When it's time to upgrade from manual to an all-hydraulic operation, converting the Versa jack plate is simple. Using a few hand tools, the Versa's manual screw assembly can be removed and swapped out for a hydraulic cylinder kit. A pump can then be installed inside the boat.
Features:
- Rated for 300 HP, up to 625 lbs. motors
- Provides 7.5" of lift
- Manual operated jack plate
- Easily upgrades to full hydraulic operation if desired
- Has same look as Bob's popular line of hydraulic jacs
- Easily adjusts for optimum results while on the water
- Automotive grease fittings
- Adjustable tension rods
- Made in the USA
Specifications:
- Transom side mounting dimensions: 16-3/4" W x 13-3/4" H
- Motor side OAW is 18-1/4"
- Motor side mounting width: 18-1/4"
| Part # | Model | Weight | Max HP | Setback |
| 100-504100 | 4" HD Versa | 40 lbs. | 300 HP | 4" |
| 100-506000 | 6" Versa | 41 lbs. | 300 HP | 6" |
| 100-510000 | 10" Versa | 49 lbs. | 300 HP | 10" |
Warranty:
- Limited lifetime on structure
