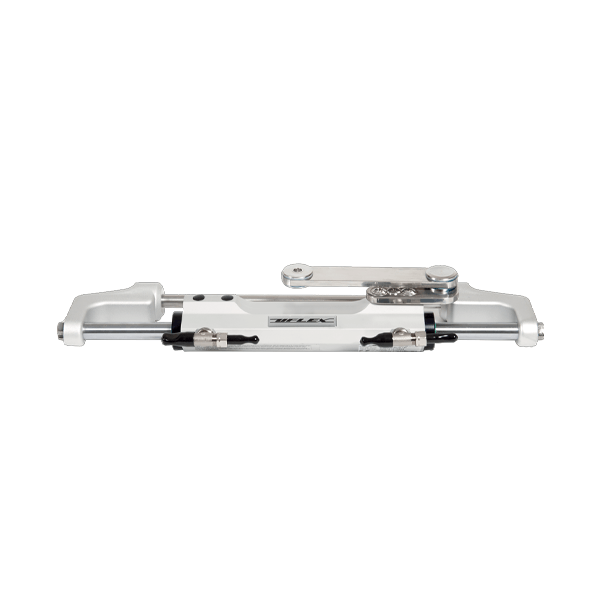

UFlex UC128-SVS 2 High Performance Front Mount Outboard Hydraulic Steering Cylinder - MW
UFlex UC128-SVS 2 High Performance Front Mount Outboard Hydraulic Steering Cylinder
Uflex UC128-SVS2 is a high-performance front-mount hydraulic steering cylinder designed for starboard-side installation on high-torque outboard engines. This version features a Type 2 offset link arm, specifically engineered to provide additional clearance where engine geometry requires an angled connection.
Part of the SilverSteer series, this cylinder offers exceptional control, durability, and compatibility with most 2- and 4-stroke outboards. Constructed with heavy-duty stainless steel rods, ULTRABOLT connection bolts, and adjustable boss-style fittings, the UC128-SVS/2 is purpose-built for demanding marine environments like bass, flat, and tournament boats.
Features
- Type 2 Offset link arm for improved clearance in tight or angled installations
- Balanced design – equal wheel turns port to starboard
- Built with high-strength stainless steel cylinder rod
- ULTRABOLT stainless steel connection system
- Replaceable end caps for serviceability
- Adjustable boss-style fittings for easy installation
- Compatible with UP25, UP28, UP33, UP39 helms and Kit OB/OB-R5 hoses
- Suitable for most 2- and 4-stroke outboards
- Meet with the EN28848, EN29775, ABYC P22, and UKCA standards
Specification
- Volume: 120 cc
- Output force: 450kg
- Internal diameter: 35mm
- Stroke: 185mm
- Flex hose fitting: 3/8"
- Bleed fittings: DN5 quick connect
