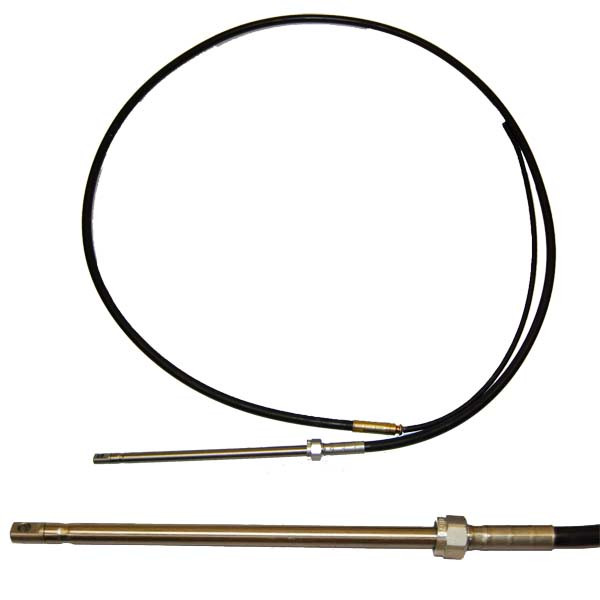

SeaStar Safe-T Quick Connect II SSC61 Rotary Steering Cable by Dometic

SeaStar QC II Replacement Steering Cable Assemblies are intended as a direct replacement for the SSC62 steering cable series (used in Safe-T QC & NFB Systems) and SSC72 (used in Safe-T TS & Big-T Systems) cabling and fit most SeaStar rotary helms made after 1968. The QC II features the patented Quick Connect cable hook-ups. This SeaStar steering cable may be used on boats with inboards, outboards and stern drives, equipped with single or twin motors.

Direct replacement for Teleflex Marine SSC61 series original factory steering cables. SeaStar Solutions replaced Teleflex Marine and has been acquired by Dometic Group.

Features:

Fast & easy installation
Uses simple snap-in connection,
Includes Quick Connect (QC) cable and industry standard Safe-T mounting hardware
This kit comes with the SA27620P Helm Converter to cover the Quick Connect to a Threaded Connection.

How to Measure Steering Cables “Measure Twice. Order Once.”

Replacement of Existing Cable: If possible, find the part number stamped on the plastic jacket of the old cable. If you removed the old cable, measure for the replacement SeaStar steering cable as follows:

How to Measure Steering Cables

For Rotary Steering Cable Replacement, Measure Existing Cable as follows: Measure plastic cable jacket (“Y” dimension, shown in above drawing) in inches, add 18″, and round up to the next foot. Order that length cable.

New Installation: Measure cable routing path from wheel center line to engine connection, as follows: A = Centerline of wheel to gunwale (or deck, if routed downward), B = Dash to transom, C = Gunwale to centerline of cable connection at centered tiller.

For Cable Installations through the Engine Tilt Tube: Add A, B & C + 6″, then round up to the next foot. Order that length cable.

For Cables Mounted to Transom, Splashwell or Stringer: Add A, B & C, then subtract 6″ and round up to the next foot. Order that length cable.

TYPICAL SINGLE STATION ROUTING

Single Station Routing

A single-cable, starboard drive push-pull mechanical cable system is shown in this diagram. If your mechanical system is different than the one depicted and/or you have any questions about mechanical steering after reviewing this guide, please contact Dometic (Mechanical) Technical Service at (610)-495-7011 or www.dometic.com

Cable routings (such as those found on pontoon boats) may vary from this drawing. Confirm length by laying a garden hose or similar object) along cable path and measure run from wheel to engine connection point.
