SeaStar Gen II Xtreme Hydraulic Jack Plate - MW

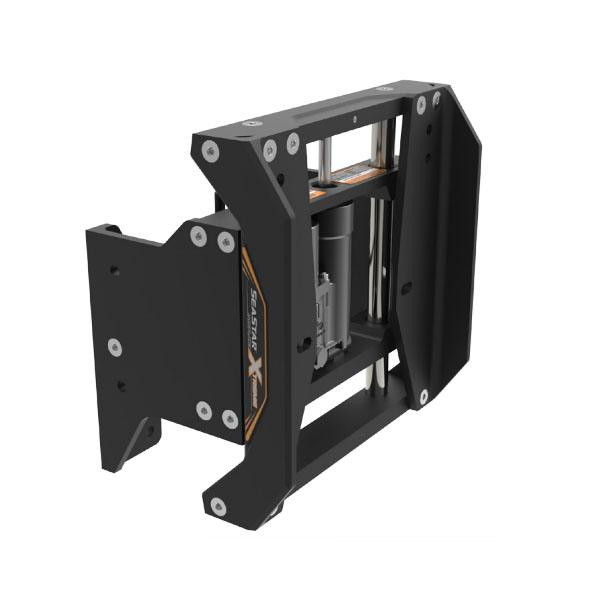

SeaStar Gen II Xtreme Hydraulic Jack Plate
The SeaStar Gen II Xtreme Hydraulic Jack Plate is one of the sleekest and most durable jack plates available. The Xtreme Jack Plate allows for higher speeds, gains in fuel economy, and the ability to run in shallow water. Available in 4, 6, 8, 10 and 12 inch setbacks, this jack plate also has a new, high-speed, hydraulic actuator that lifts engines 5.8" in 8.5 seconds. The SeaStar Xtreme Jack Plate is rated for 400 horsepower engines and is designed to maximize engine tilt when used with SeaStar steering cylinders. An integrated circuit breaker gives electrical protection right at the battery post. All Xtreme Hydraulic Jack Plates come with a basic rocker switch.
Features:
- Capable of handling up to 400 HP gasoline engines
- Easy wrench access to engine bolts from the side
- Complete rigid engine support at full thrust
- Thick anodizing with anode attachment points
- Smooth operation with composite bushings
- Shallow water anchor mountable on all setbacks*
- Easy SmartStick installation for ProTap upgrades
- 15% less weight than previous model
*The 4" setback model, JP5040X requires adapter kit DK4600 for Power Pole or Talon anchor systems mounting.
Setbacks Available: 4", 6", 8", 10", 12"
Click to Download the SeaStar Xtreme Hydraulic Jack Plate Data Sheet
