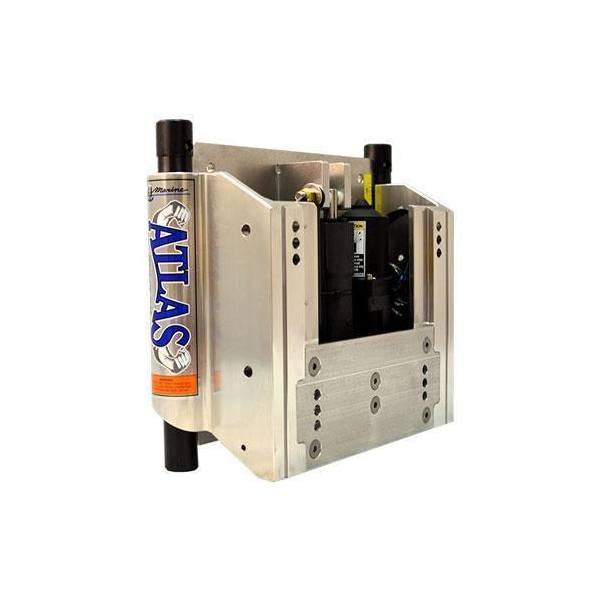

T-H Marine Atlas Hydraulic Jack Plates - Standard Series (Up to 300 HP)
T-H Marine's Atlas Hydraulic Jack Plates deliver professional-grade performance for high-output outboards. Designed for V6/V8 engines up to 300 HP, the standard Atlas plate gives you precise engine height control for better hole shot, shallower running, and a smoother ride in a wide range of water conditions.
A self-contained hydraulic system is built directly into the plate, so there are no separate pumps or reservoirs to mount inside the boat. The result is a cleaner installation, fewer potential leak points, and fast operation - raising the engine from bottom to top in about eight seconds.
Atlas plates are a popular choice with boat builders and serious anglers because they combine speed, strength, and long-term reliability in one system.
Key Benefits
- Faster hole shot and better lift - Raise or lower the engine to dial in bow attitude and get on plane more quickly.
- Improved shallow-water performance - Run the motor higher when idling or easing through flats, stumps, or skinny water.
- Smoother, more efficient ride - Fine-tune engine height at cruising speed to reduce drag, improve fuel economy, and tighten handling.
- Cleaner, low maintenance setup - Self-contained hydraulics and engineered polymer lift rods are designed for long-term, trouble-free operation with minimal upkeep.
Features
- Rated for outboards up to 300 HP or up to 625 lbs dry weight (standard Atlas series)

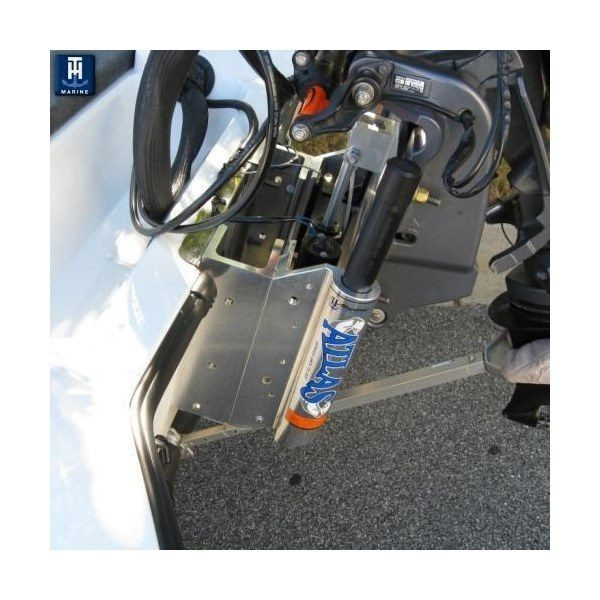

- Self-contained electric-hydraulic system - All pumps and fluid are built into the plate itself, keeping the transom area uncluttered.
- One-piece plate with rod-and-slot lifting design - Engineered to handle the demands of modern V6/V8 and four-stroke outboards.
- High-tech polymer lift rods - Abrasion-resistant, self-lubricating material for smooth, reliable movement under load.
- Multiple setback options - Available in popular setbacks (4" -14") to better match different hulls and engine setups
- Pre-drilled for shallow-water anchors - Plates are pre-drilled to accept common shallow-water anchor brackets, simplifying rigging.
- Low-maintenance design - Self-lubricating components and sealed hydraulics reduce the need for regular greasing.
- Reinforced safety cable - Provides an extra layer of protection by helping secure the engine in the event of a component failure.
- Made with U.S.-built hydraulic actuator from a leading name in marine hydraulic design

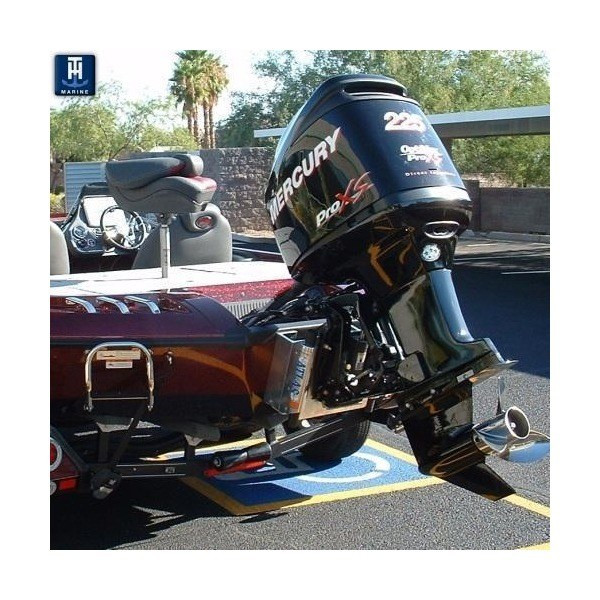

Compatible Boats & Applications
The standard Atlas Hydraulic Jack Plate is an excellent match for:
- Bass boats
- Bay and flats boats
- Multi-species and walleye rigs
- Many deep-V and performance fishing boats
It's ideal anywhere you need fast engine height adjustment, better shallow-water control, and the flexibility to fine-tune performance for different loads and conditions.
What's Included
Each Atlas Hydraulic Jack Plate package typically includes:
- Atlas Hydraulic Jack Plate assembly
- Pre-wired relay harness
- Dash-mount rocker switch
- Installation instructions and warranty information
Note: Transom mounting bolts and engine mounting bolts are usually not included. Use marine-grade stainless steel fasteners sized for your specific transom and engine combination.
Installation Notes
The Atlas jack plate is designed for straightforward installation on most outboard transoms. The self-contained hydraulic unit means there are no remote pumps or reservoirs to mount, and the included harness and switch simplify wiring.
Because installation requires lifting and securing the outboard engine and drilling or re-using transom mounting holes, many boaters choose to have the plate installed by a qualified marine technician. Always verify setback length and engine/boat compatibility before purchase.
Atlas Hydraulic Jack Plate FAQs
What is the difference between the standard Atlas jack plate and the Heavy Duty version?
The standard Atlas Hydraulic Jack Plate is designed for most V6/V8 outboards and is rated for up to 300 HP (within the manufacturer’s weight limits). The Heavy Duty Atlas uses a reinforced design for heavier, high-horsepower engines and more extreme running conditions. If your engine is near the maximum rating for the standard plate or you regularly run hard in rough water, the Heavy Duty version is usually the better choice.
How do I choose the right setback for my boat?
Setback is the distance the engine is moved rearward from the transom. Smaller setbacks are often used on lighter, faster hulls, while larger setbacks can help heavier boats or rigs that need extra lift and cleaner water flow to the prop. The best choice depends on your hull design, engine weight, and how the boat is loaded. If you are unsure, check your boat manufacturer’s recommendations or contact our team with your boat make, model, engine, and current setup.
What comes with an Atlas Hydraulic Jack Plate?
Each Atlas Hydraulic Jack Plate includes the jack plate assembly with integrated hydraulic actuator, a pre-wired relay harness, and a dash-mounted rocker switch, along with basic installation and warranty information. Transom mounting bolts and engine mounting hardware are typically not included because the correct length and style depend on your specific transom thickness and rigging. Use marine-grade stainless hardware sized for your installation.
Can I install an Atlas jack plate myself?
Many experienced DIY boaters install Atlas jack plates on their own. However, the process requires safely lifting and supporting the outboard, aligning the plate on the transom, and properly torquing the mounting hardware. If you are not comfortable handling the engine or drilling and aligning transom bolt holes, we recommend having a qualified marine technician perform the installation. Always follow the installation manual and safety instructions.
Is the Atlas Hydraulic Jack Plate suitable for saltwater use?
Yes. Atlas jack plates are built with corrosion-resistant materials and a sealed hydraulic system that are suitable for both freshwater and saltwater use. As with any equipment in saltwater environments, regular rinsing, inspection, and basic maintenance will help maximize service life and keep the plate operating smoothly.
Can I mount a shallow-water anchor to this jack plate?
Most Atlas Hydraulic Jack Plates are pre-drilled to accept popular shallow-water anchor brackets from leading brands. Compatibility can vary based on the setback size and anchor model, so always confirm bracket fitment with the anchor manufacturer’s guidelines and the specific Atlas model you are purchasing.
