Scanstrut Vertical Cable Seals

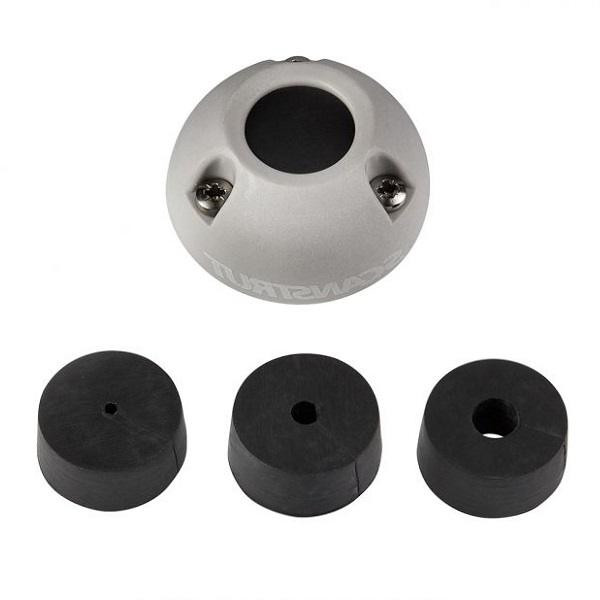

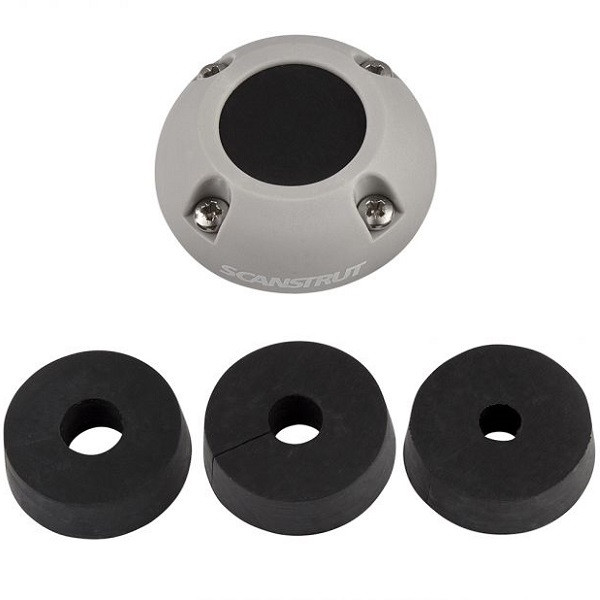

Scanstrut vertical cable seals feature an aesthetic dome-shaped profile that provides a strong and impact resistant design. This IP68 rated waterproof seal ensures a clean and secure installation in a variety of applications including, antennas, lights, GPS, solar, and power cables. Constructed of marine grade materials these durable cable seals include mounting hardware along with predrilled, blank, and split bungs.

Features:

IP68 Waterproof
Bungs included
Marine Grade Materials
Install without removing cable connector

Specifications:

Product	Cable Size	Connection Size	Installation Instructions
DS16-P	2-8mm	Up to 16mm	Click Here
DS21A-P	4-9mm	Up to 21mm	Click Here
DS21B-P	9-14mm	Up to 21mm	Click Here
DS30-P	9-14mm	Up to 30mm	Click Here

Application Tips

Before drilling, freeze the blank seal in a freezer. This makes it easy to neatly and accurately drill the hole. For best fit drill a hole 1-2mm larger than the cable diameter. When drilling into a blank seal the hole will look big until it defrosts. These seals are not designed to be installed below the waterline.
