Standard Horizon GX1410B Eclipse Series 25W Fixed Mount VHF - White - MW

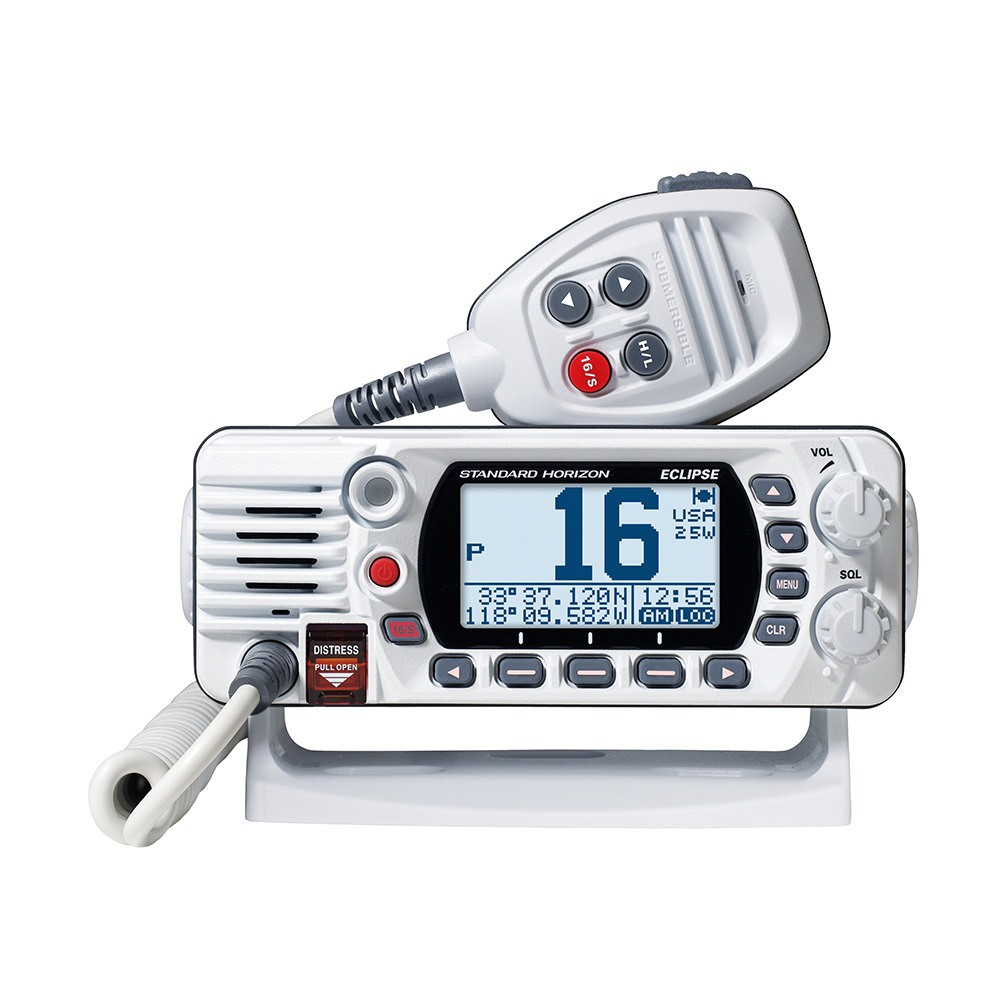

GX1410B Eclipse Series 25W Fixed Mount VHF - White
E2O Easy-to-Operate Menu System
Keeping the everyday boat operator in mind, the Easy to Operate menu system is more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming have never been easier.
ITU-R M493-16 Class D Digital Selective Calling
The GX1410 Eclipse Series is an ITU-R M493-16 Class D VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to communications.
The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude, and time (with GPS connected), to facilitate prompt response. Additional calls that can be made are Individual, Urgency, Safety, Position Report, and Send.
High-Resolution Dot Matrix Display
The high-resolution dot matrix display makes navigating the radio's many features smooth and easy. The adjustable ultra-bright backlight makes daytime and nighttime viewing a breeze.
Features:
- Affordable Ultra Compact Class D Fixed Mount VHF Radio
- Meets the latest Standards for ITU-R M493-16 Class D DSC
- Replaces older Eclipse+ and Eclipse DSC Models
- Radio controls on the Microphone
- E2O Easy to Operate Icon/Menu System
- Oversized Full dot matrix display (31 mm x 55 mm)
- Built-in Separate Receiver for CH70 (Receiving DSC Calls)
- DSC test call and Auto DSC channel change selection
- GPS position and Time Shown on a Full-dot Matrix Display when Connected to a GPS Receiver
- NMEA0183 In and Output Connections to a Compatible GPS Chart Plotter
- Programmable soft keys
- Automatically poll the GPS position of up to 6 ships using DSC
- Submersible IPX8 waterproof rating (1.5M or 4.92 feet for 30 minutes)
- All USA/International and Canadian Marine Channels
- Preset key used to recall up to 10 favorite channels
- NOAA weather channel selection with Weather Alert
- Programmable Scan, Priority Scan, and Dual Watch
Specifications:
- AIS: No
- Built-In GPS: No
- Color: White
- Hailer: No
- Intercom Capability: No
- NMEA 2000: No
- Remote Mic Capable: No
- Scrambler Capable: No
- Box Dimensions: 4"H x 7"W x 10"L WT: 3.05 lbs
- UPC: 788026183517
Owner's Manual (pdf)
