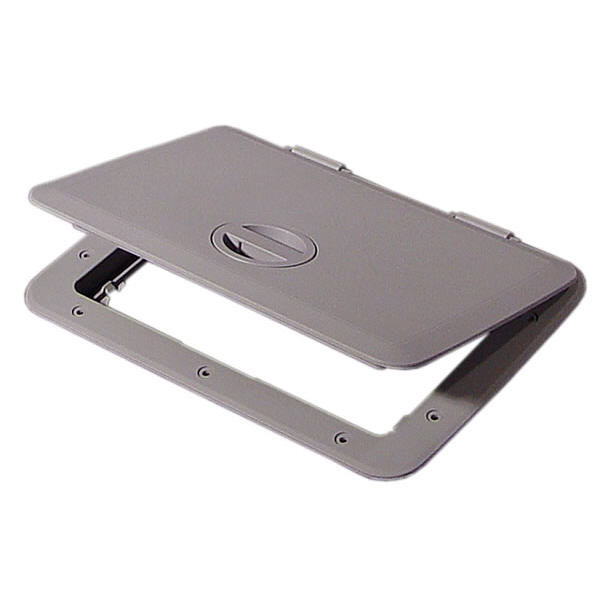

Tempress Cam Hatch w/o Lock - Dark Grey - MW
Tempress Cam Hatch w/o Lock - Dark Grey
The Tempress line of Cam Hatches without locks are functional, stylish, and long lasting. These boat access hatches are made from a glass filled polypropylene for strength and durability. Designed for high traffic areas, these cam hatches are designed to withstand people walking or standing upon them. This line of deck hatches feature dog down latches that compress the gasket to create a watertight seal with a quarter turn of the wrist. A patented integral hinge assembly allows for easy lid removal. The beveled and skirted lid covers all fasteners for a clean look above or below decks. These Tempress Cam Hatches are the perfect choice for easy dry storage bins, access to bait or fish wells, or electrical and plumbing lines.
Features:
- Tough water resistant design
- Made for heavy traffic areas
- Positive locking system won't pop open
- Lid gasket for weather tight seal
- Detailed installation instructions and size dimension template included
- Multiple sizes available
- Made in the USA
Tempress Cam Hatch Sizes and Specifications
1115 Dimensions (p/n 44333):
- 1115 Cutout = 8 5/8" x 12 1/2"
- 1115 Inside = 7 1/4" x 11 1/4"
- 1115 Outside = 10 3/4" x 15 1/8"
- Fasteners Required 10ea. #12 Pan Head self tapping screws
1317 Dimensions (p/n 44633):
- 1317 Cutout = 10 5/8" x 14 1/2"
- 1317 Inside = 9 1/2" x 13 1/2"
- 1317 Outside = 13" x 17 1/4"
- Fasteners Required 12 ea. #12 Pan Head self tapping screws

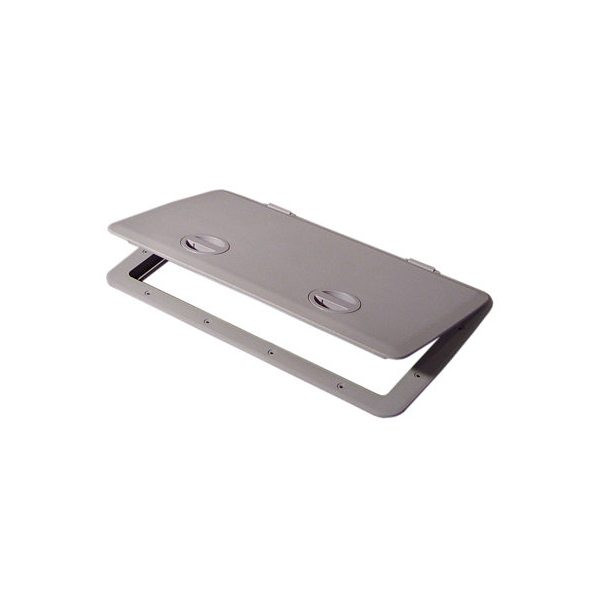

1323 Dimensions (p/n 44533):
- 1323 Cutout = 10 3/4" x 20 3/4"
- 1323 Inside = 9 3/8" x 19 1/2"
- 1323 Outside = 13" x 23 1/4"
- Fasteners Required 12ea. #12 Pan Head self tapping screws
1330 Dimensions (p/n 44733):
- 1330 Cutout = 10 5/8" x 27 5/8"
- 1330 Inside = 9 1/2" x 26 1/2"
- 1330 Outside = 13" x 30 3/8"
- Fasteners Required 16 ea. #12 Pan Head self tapping screws
