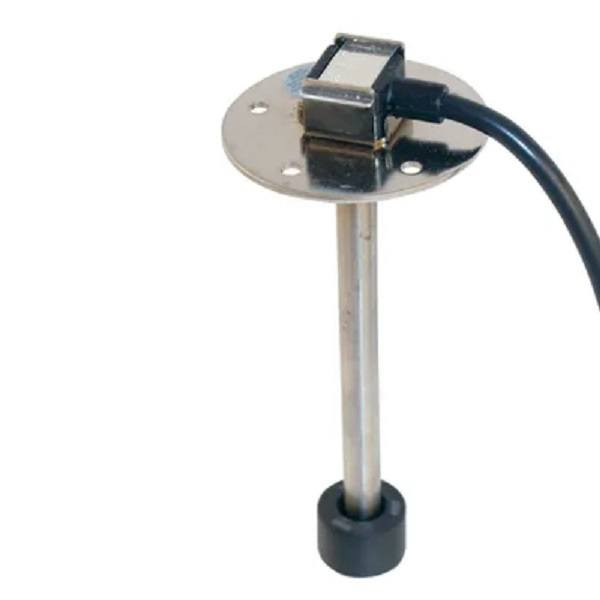

Moeller Reed Switch Fuel Sending Unit

Collect fuel level information more consistently than swingarm senders by taking the measurement from the float-which is still a moving part. However the fluctuation is much less because the range of motion is much less.

316 Type, Stainless Steel construction provides efficient performance
A Direct Original Equipment Manufactured sender replacement by WEMA USA
Sender length is 1" shorter than the tank depth.
Calibrated to 32-240Ohm's, an industry standard.
Complete with 5-hole gasket and screws.
Compatible with Dash Mounted Gauge (33-240 Ohm's)

Available in the following tank depths:

6" tank depth - Moeller part# 035773-10
9" tank depth - Moeller part # 035761-10
11" tank depth - Moeller part # 035762-10
13" tank depth - Moeller part # 035764-10
15" tank depth - Moeller part # 035765-10
18-1/2" tank depth - Moeller part # 035767-10

Sender length is 1" shorter than tank depth.

Moeller Reed Switch Fuel Sending Unit FAQs

What does the Moeller Reed Switch Fuel Sending Unit do?

The Moeller Reed Switch Fuel Sending Unit collects fuel level information from the float and sends the reading to a compatible dash-mounted fuel gauge.

How is a reed switch fuel sending unit different from a swingarm sender?

A reed switch fuel sending unit can provide more consistent fuel level readings than a swingarm sender because the float has a smaller range of motion.

What ohm range is the Moeller Reed Switch Fuel Sending Unit calibrated to?

The Moeller Reed Switch Fuel Sending Unit is calibrated to the industry standard 32-240 ohm range and is compatible with 33-240 ohm dash-mounted gauges.
