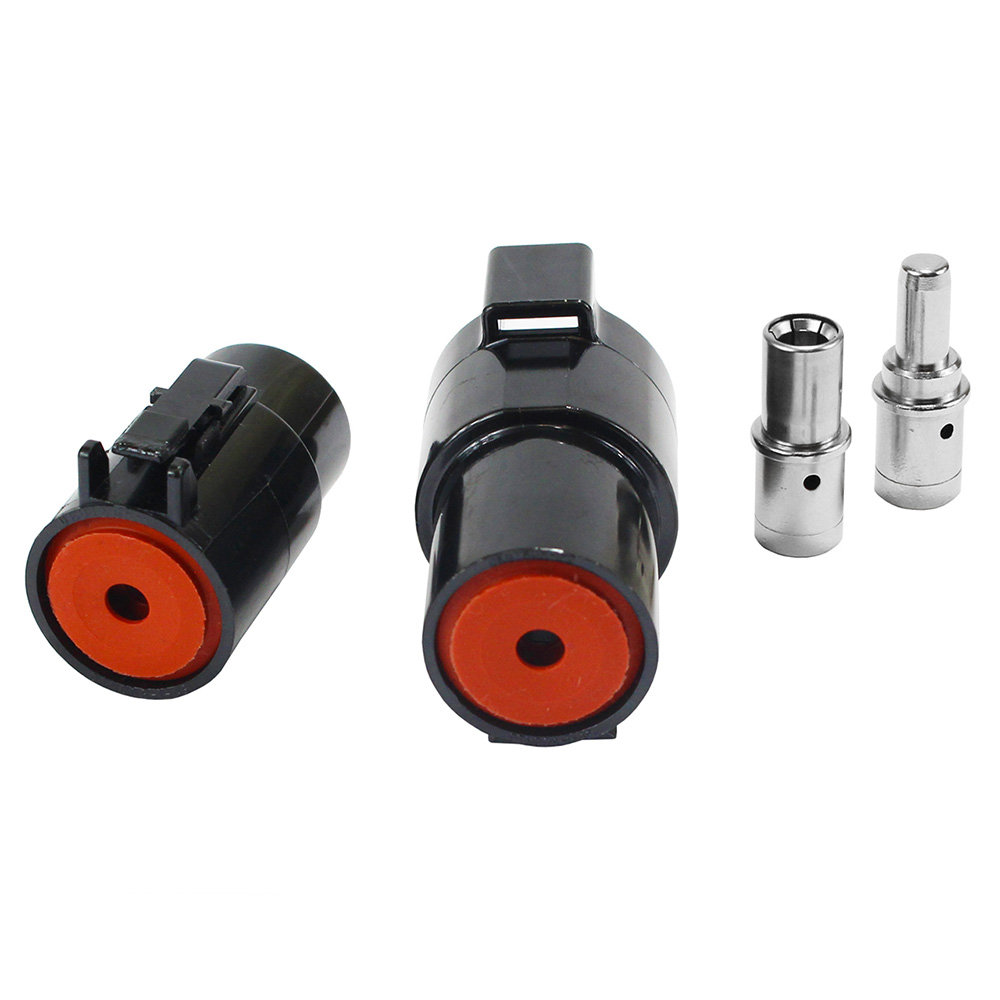

Deutsch 6 AWG DTHD Power Plug & Receptacle with Pin & Socket
DTHD power plugs and receptacles are single connectors for heavy-duty applications. Easy to install, environmentally sealed, and compact they are a simple, field-serviceable alternative to a splice. Contact a Pacer expert with any questions that you may have.
Features:
- Environmentally sealed disconnectable power wire splicing
- 60-100 Amps at 125°C
- Easy to install
- Field serviceable
Applications:
- Wire-to-wire applications
- Enclosed connectors offer field-proven reliability and rugged quality
Characteristics:
- Redundant Silicone Seals
- Contacts are hand-insertable
Compliances:
- Ingress Protection (IP) Level: IP67
- EU RoHS/ELV
Specifications:
- Kit Contents: (1) DTHD Plug, (1) Size 4 Socket, (1) DTHD Receptacle, (1) Size 4 Pin, (2) Reducer Crimp Sleeves for 10 or 8 AWG
- Deutsch Series: DTHD
- Wire Range: 6 AWG
- Connector Types: Plugs & Receptacles
Product Specifications
| Dimensions | 5" L × 3" W × 1" H |
|---|---|
| Shipping Weight | 0.12 lb |
| Country of Origin | MEXICO |
| Harmonized Code | 8205.59.8000 |
