Barton Size 2 35mm Plain Bearing Pulley Block Double w/Swivel
This item is currently on backorder. You can still place an order, but it will only ship once it’s back in stock.
Express Checkout

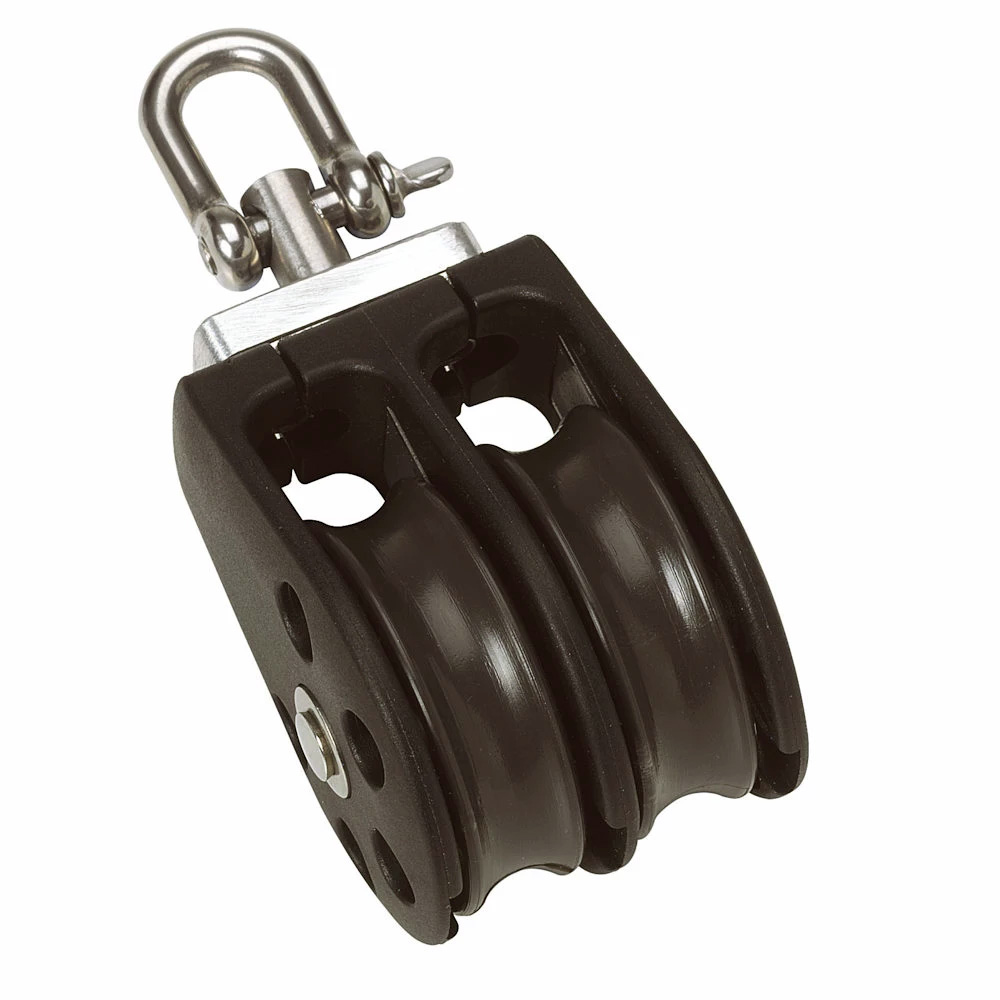

Size 2 35mm Plain Bearing Pulley Block Double with Swivel
The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8") sheave. This block range size provides high performance and load values in a variety of assemblies & configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.
Suitable for up to 8mm (5/16") rope.
Specifications:
- Weight: 87g
- Dimensions: 83 × 39 × 38 mm
- Size: 2 (35MM)
- Block Type: Fixed Eye
- No. of Sheaves: Double
- Bearing Type: Plain
- Sheave Size: 35mm x 11mm (1 3/8" x 15/32")
- Max rope diameter: 8mm (5/16")
- SWL: 370kg (815lbs)
- Break load: 740kg (1630lbs)
- Max rolling load (ball bearing blocks): 260kg (573lbs)
Product Specifications
| Dimensions | 5" L × 2" W × 2" H |
|---|---|
| Shipping Weight | 0.2 lb |
| Country of Origin | UNITED KINGDOM |
Documentation
| Quick Guide | Download PDF |
|---|
